アルミニウム電解コンデンサコンデンサ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FR1A681CAP ALUM 680UF 20% 10V RADIAL Panasonic Electronic Components |
2,438 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 680 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EEU-FR1C471CAP ALUM 470UF 20% 16V RADIAL Panasonic Electronic Components |
2,250 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 470 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EEU-FR1E331CAP ALUM 330UF 20% 25V RADIAL Panasonic Electronic Components |
3,935 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 330 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-EE2E101SCAP ALUM 100UF 20% 250V RADIAL Panasonic Electronic Components |
3,731 | - |
RFQ |
データシート |
Bulk | EE-A | Active | 100 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FK1E472SMCAP ALUM 4700UF 20% 25V SMD Panasonic Electronic Components |
3,429 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 4700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.98 A @ 120 Hz | 2.64 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-FP1E102BCAP ALUM 1000UF 20% 25V RADIAL Panasonic Electronic Components |
2,989 | - |
RFQ |
データシート |
Cut Tape (CT),Tape & Box (TB) | FP | Active | 1000 µF | ±20% | 25 V | 52mOhm @ 100kHz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.95 A @ 120 Hz | 3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FR1H101CAP ALUM 100UF 20% 50V RADIAL Panasonic Electronic Components |
2,842 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 100 µF | ±20% | 50 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 609 mA @ 120 Hz | 870 mA @ 100 kHz | 61 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ECA-1JM222CAP ALUM 2200UF 20% 63V RADIAL Panasonic Electronic Components |
641 | - |
RFQ |
データシート |
Bulk | M-A | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
EEU-FK1E271CAP ALUM 270UF 20% 25V RADIAL TH Panasonic Electronic Components |
3,669 | - |
RFQ |
データシート |
Bulk | FK | Active | 270 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 441 mA @ 120 Hz | 630 mA @ 100 kHz | 90 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-FC2A471CAP ALUM 470UF 20% 100V RADIAL Panasonic Electronic Components |
2,610 | - |
RFQ |
データシート |
Bulk | FC | Active | 470 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.44 A @ 120 Hz | 1.92 A @ 100 kHz | 47 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
EEE-FT1E821APCAP ALUM 820UF 20% 25V SMD Panasonic Electronic Components |
2,618 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 820 µF | ±20% | 25 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FT1V561APCAP ALUM 560UF 20% 35V SMD Panasonic Electronic Components |
2,102 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 560 µF | ±20% | 35 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FT1C102APCAP ALUM 1000UF 20% 16V SMD Panasonic Electronic Components |
2,657 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 1000 µF | ±20% | 16 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 833 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEU-HD1V681BCAP ALUM 680UF 20% 35V RADIAL Panasonic Electronic Components |
2,927 | - |
RFQ |
データシート |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 680 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 690 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEU-FC1A103CAP ALUM 10000UF 20% 10V RADIAL Panasonic Electronic Components |
3,687 | - |
RFQ |
データシート |
Bulk | FC | Active | 10000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.128 A @ 120 Hz | 3.68 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
EEU-FR0J102CAP ALUM 1000UF 20% 6.3V RAD TH Panasonic Electronic Components |
3,380 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 1000 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

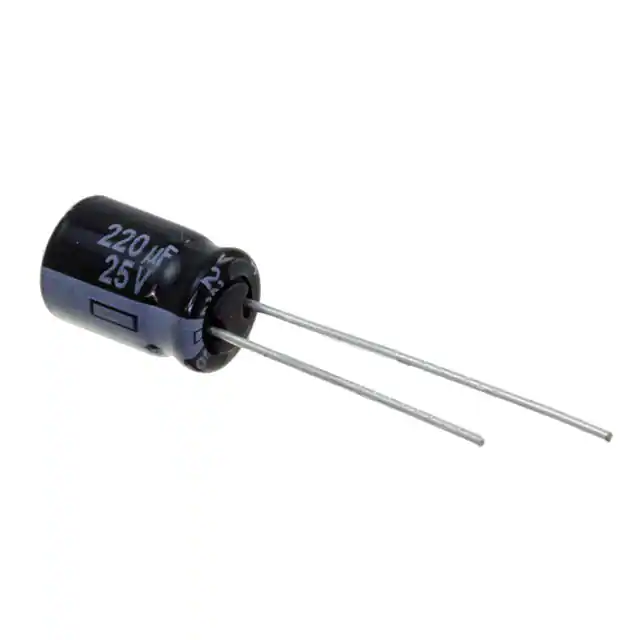

EEU-FR1E221CAP ALUM 220UF 20% 25V RADIAL TH Panasonic Electronic Components |
3,386 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 220 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

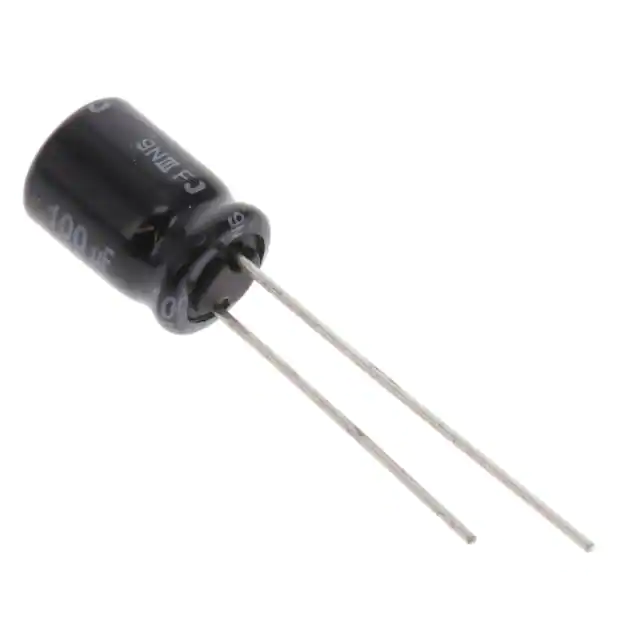

EEU-FR1V101CAP ALUM 100UF 20% 35V RADIAL TH Panasonic Electronic Components |
2,789 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 100 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
EEU-FR1V221CAP ALUM 220UF 20% 35V RADIAL TH Panasonic Electronic Components |
3,787 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 220 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-FR1A471CAP ALUM 470UF 20% 10V RADIAL TH Panasonic Electronic Components |
3,854 | - |
RFQ |
データシート |
Bulk | FR-A | Active | 470 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
