アルミニウム電解コンデンサコンデンサ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQR2W682MSEHCAP ALUM 6800UF 20% 450V SCREW Nichicon |
3,279 | - |
RFQ |
データシート |
Bulk | LQR | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 120 Hz | 32.62 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

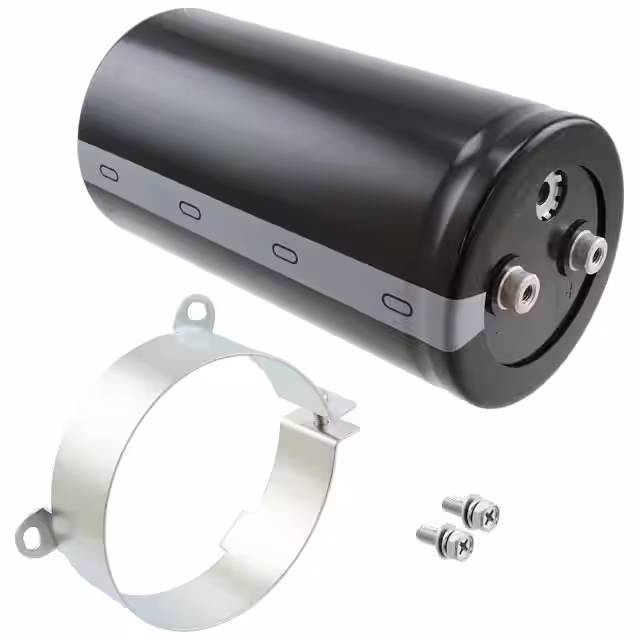

LNC2W682MSEHCAP ALUM 6800UF 20% 450V SCREW Nichicon |
2,716 | - |
RFQ |
データシート |
Bulk | LNC | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 120 Hz | 33.32 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
LQR2V123MSEHCAP ALUM 12000UF 20% 350V SCREW Nichicon |
3,650 | - |
RFQ |
データシート |
Bulk | LQR | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
MAL210436332E3CAP ALUM 3300UF 20% 400V SCREW Vishay Beyschlag/Draloric/BC Components |
3,399 | - |
RFQ |
データシート |
Bulk | 104 PHL-ST | Active | 3300 µF | ±20% | 400 V | 38mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 16.95 A @ 10 kHz | 23 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.378 (111.20mm) | - | Chassis Mount |
|
LNT2H332MSEHCAP ALUM 3300UF 20% 500V SCREW Nichicon |
3,426 | - |
RFQ |
データシート |
Bulk | LNT | Active | 3300 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 13 A @ 120 Hz | 18.2 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
B43254A2157M000CAP ALUM 150UF 20% 200V SNAP EPCOS - TDK Electronics |
606 | - |
RFQ |
データシート |
Bulk | B43254 | Active | 150 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 976.5 mA @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
MLSH322M030JK0CCAP ALUM 3200UF 20% 30V RADIAL Cornell Dubilier Electronics (CDE) |
2,179 | - |
RFQ |
データシート |
Bulk | MLSH | Active | 3200 µF | ±20% | 30 V | 103mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Hermetically Sealed | 6.6 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.000 L x 0.500 W (25.40mm x 12.70mm) | 1.500 (38.10mm) | - | Through Hole |
|
UAS2G470MHDCAP ALUM 47UF 20% 400V RADIAL Nichicon |
150 | - |
RFQ |
データシート |
Bulk | UAS | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
LNC2H562MSEJCAP ALUM 5600UF 20% 500V SCREW Nichicon |
3,999 | - |
RFQ |
データシート |
Bulk | LNC | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.4 A @ 120 Hz | 36.96 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

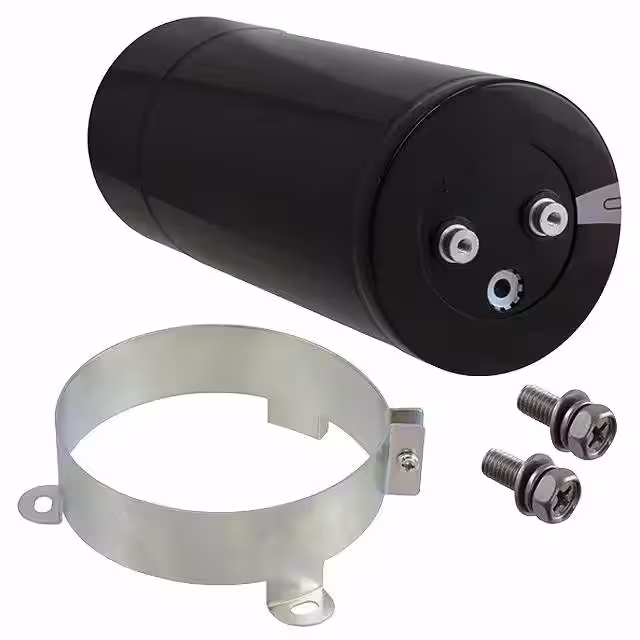

LNX2L332MSEHCAP ALUM 3300UF 20% 550V SCREW Nichicon |
2,512 | - |
RFQ |
データシート |
Bulk | LNX | Active | 3300 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.693 (170.00mm) | - | Chassis Mount |
|
|
UAS2G390MHDCAP ALUM 39UF 20% 400V RADIAL Nichicon |
3,689 | - |
RFQ |
データシート |
Bulk | UAS | Active | 39 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 408 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
URS2D680MRD6CAP ALUM 68UF 20% 200V RADIAL Nichicon |
2,159 | - |
RFQ |
データシート |
Bulk | URS | Active | 68 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 784 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.787 Dia (20.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
LNX2V123MSEJCAP ALUM 12000UF 20% 350V SCREW Nichicon |
3,372 | - |
RFQ |
データシート |
Bulk | LNX | Active | 12000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 28.8 A @ 120 Hz | 40.32 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
LGU2P221MELYCAP ALUM 220UF 20% 220V SNAP Nichicon |
112 | - |
RFQ |
データシート |
Bulk | LGU | Active | 220 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 50 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
UCYW6101MHDCAP ALUM 100UF 20% 420V RADIAL Nichicon |
3,583 | - |
RFQ |
データシート |
Bulk | UCY | Active | 100 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.65 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
LNT2W103MSEJCAP ALUM 10000UF 20% 450V SCREW Nichicon |
2,617 | - |
RFQ |
データシート |
Bulk | LNT | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 35.1 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
LNX2G153MSEKCAP ALUM 15000UF 20% 400V SCREW Nichicon |
3,650 | - |
RFQ |
データシート |
Bulk | LNX | Active | 15000 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 37 A @ 120 Hz | 51.8 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
UAS2G560MHD6CAP ALUM 56UF 20% 400V RADIAL Nichicon |
2,557 | - |
RFQ |
データシート |
Bulk | UAS | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 512 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LNT2W472MSEHCAP ALUM 4700UF 20% 450V SCREW Nichicon |
3,371 | - |
RFQ |
データシート |
Bulk | LNT | Active | 4700 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 21.7 A @ 120 Hz | 30.38 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
EGQB250ELL272ML25HCAP ALUM 2700UF 20% 25V RADIAL United Chemi-Con |
500 | - |
RFQ |
データシート |
Bulk | GQB | Active | 2700 µF | ±20% | 25 V | 50mOhm @ 100kHz | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.42 A @ 120 Hz | 4.56 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
