コモンモードチョーク

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

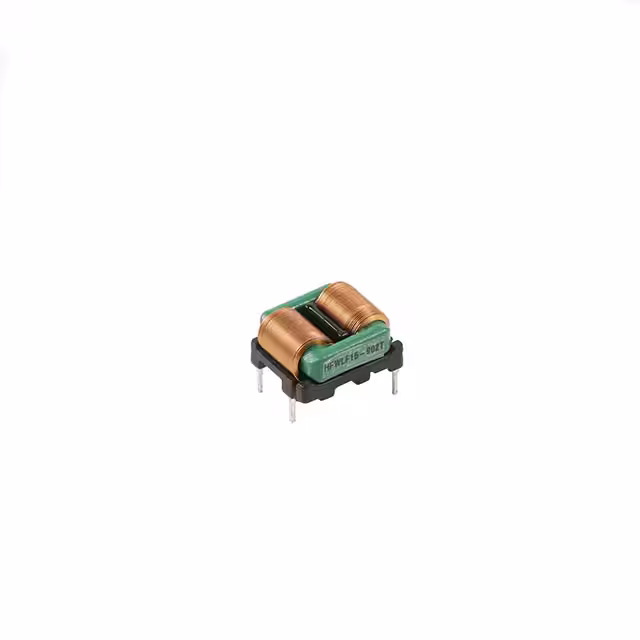

HFWLF15-123T 12.5mH 30% Horizontal flat wire Allied Components International	2,018	-	RFQ	データシート	Tray	-	Active	-	2	-	12.5 mH @ 100 kHz	1A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	0.551 (14.00mm)
HFWLF15-902T 9.0mH 30% Horizontal flat wire Allied Components International	2,580	-	RFQ	データシート	Tray	-	Active	-	2	-	9 mH @ 100 kHz	1.5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	0.551 (14.00mm)

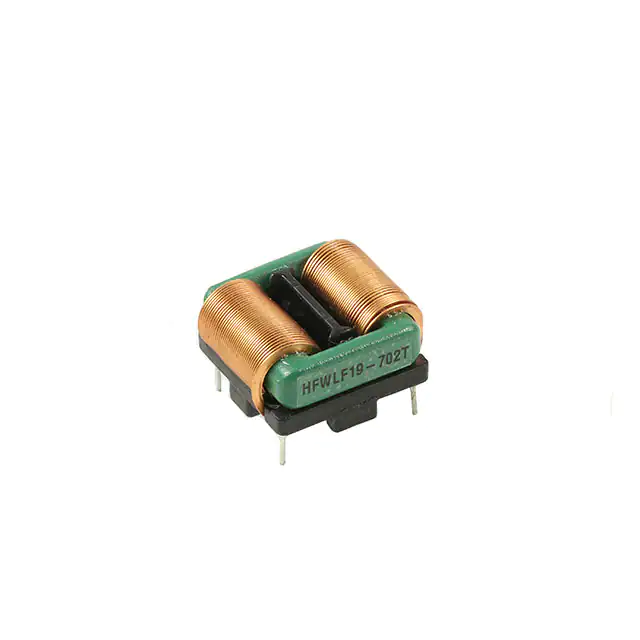

HFWLF19-952T 9.5mH 30% Horizontal flat wire Allied Components International	2,846	-	RFQ	データシート	Tray	-	Active	-	2	-	9.5 mH @ 100 kHz	3A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.846 W (23.50mm x 21.50mm)	0.551 (14.00mm)
HFWLF19-223T 22.5mH 30% Horizontal flat wire Allied Components International	2,489	-	RFQ	データシート	Tray	-	Active	-	2	-	22.5 mH @ 100 kHz	1.5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.846 W (23.50mm x 21.50mm)	0.551 (14.00mm)
HFWLF19-702T 7.0mH 30% Horizontal flat wire Allied Components International	3,906	-	RFQ	データシート	Tray	-	Active	-	2	-	7 mH @ 100 kHz	3.5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.846 W (23.50mm x 21.50mm)	0.551 (14.00mm)
HFWLF19-283T 28.0mH 30% Horizontal flat wire Allied Components International	2,062	-	RFQ	データシート	Tray	-	Active	-	2	-	28 mH @ 100 kHz	1A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.846 W (23.50mm x 21.50mm)	0.551 (14.00mm)

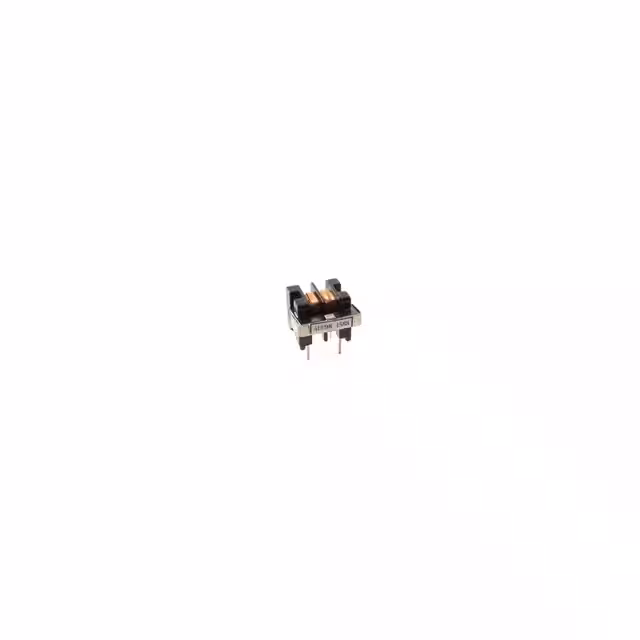

AUU98-4588 22MH MIN, HORIZONTAL MOUNT. LINE Allied Components International	3,358	-	RFQ	データシート	Box	-	Active	-	2	-	22 mH @ 1 kHz	-	2.3Ohm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.610 W (17.00mm x 15.50mm)	0.531 (13.50mm)
HFWLF24-153T 15.0mH 30% Horizontal flat wire Allied Components International	3,363	-	RFQ	データシート	Tray	-	Active	-	2	-	15 mH @ 100 kHz	3.5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.004 L x 0.906 W (25.50mm x 23.00mm)	0.551 (14.00mm)
HFWLF24-203T 20.5mH 30% Horizontal flat wire Allied Components International	2,486	-	RFQ	データシート	Tray	-	Active	-	2	-	20.5 mH @ 100 kHz	3A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.004 L x 0.906 W (25.50mm x 23.00mm)	0.551 (14.00mm)
HFWLF24-552T 5.5mH 30% Horizontal flat wire Allied Components International	2,340	-	RFQ	データシート	Tray	-	Active	-	2	-	5.5 mH @ 100 kHz	5A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.004 L x 0.906 W (25.50mm x 23.00mm)	0.551 (14.00mm)

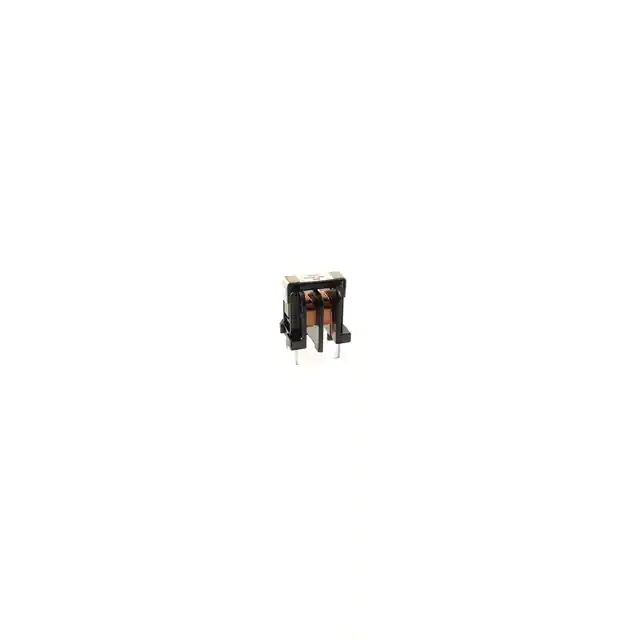

AUU105-4652 370UH MIN., 1.0A, VERTICAL MOUNT Allied Components International	3,012	-	RFQ	データシート	Box	-	Active	-	2	-	370 µH @ 1 kHz	1A	300mOhm	-	-	-40°C ~ 130°C	-	-	-	Through Hole	0.748 L x 0.669 W (19.00mm x 17.00mm)	0.886 (22.50mm)

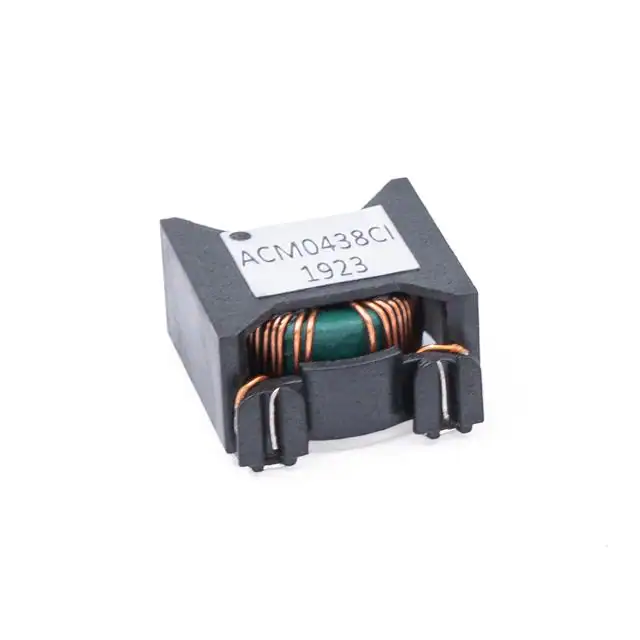

ACM0438CI 5.0MH 30% SMD COMMON MODE CHOKE Allied Components International	2,421	-	RFQ	データシート	Tape & Reel (TR)	-	Active	-	2	-	5 mH @ 10 kHz	1A	220mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.669 L x 0.787 W (17.00mm x 20.00mm)	0.413 (10.50mm)

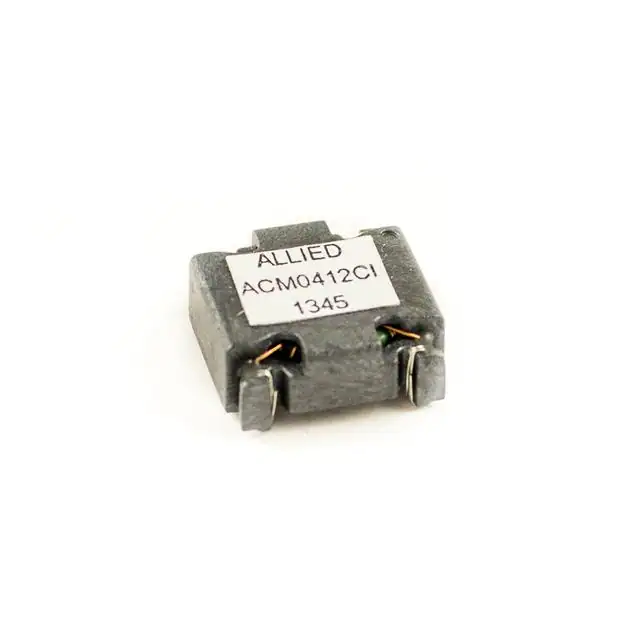

ACM0412CI 1.17MH 35% COMMON MODE CHOKE Allied Components International	2,661	-	RFQ	データシート	Tape & Reel (TR)	-	Active	Power Line	2	-	1.17 mH @ 10 kHz	7.2A	200mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.215 (5.46mm)

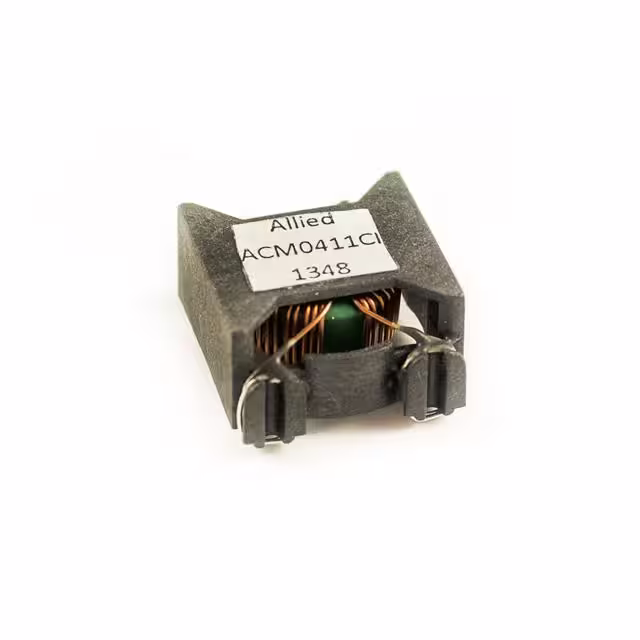

ACM0411CI 1.47MH 35% COMMON MODE CHOKE Allied Components International	2,786	-	RFQ	データシート	Tape & Reel (TR)	-	Active	Power Line	2	-	1.47 mH @ 10 kHz	2.8A	80mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.390 (9.91mm)
ACM0502-471 470UH, COMMON MODE CHOKE Allied Components International	2,596	-	RFQ	データシート	Tape & Reel (TR)	-	Active	Power Line	2	-	470 µH @ 10 kHz	14A	8mOhm	-	-	-40°C ~ 120°C	-	-	-	Through Hole	0.906 L x 0.768 W (23.00mm x 19.50mm)	1.083 (27.50mm)
VCMC1510-333 33mH +50%/-30% Common Mode Choke Allied Components International	3,960	-	RFQ	データシート	Box	-	Active	Power Line	2	-	33 mH @ 10 kHz	300mA	1.65Ohm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.571 L x 0.370 W (14.50mm x 9.40mm)	0.606 (15.39mm)
ACM-2743 383UH +30%/-35% COMM. MODE CHOKE Allied Components International	2,505	-	RFQ	データシート	Tape & Reel (TR)	-	Active	-	2	-	383 µH @ 1 kHz	3.3A	18mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.512 L x 0.512 W (13.00mm x 13.00mm)	0.236 (6.00mm)

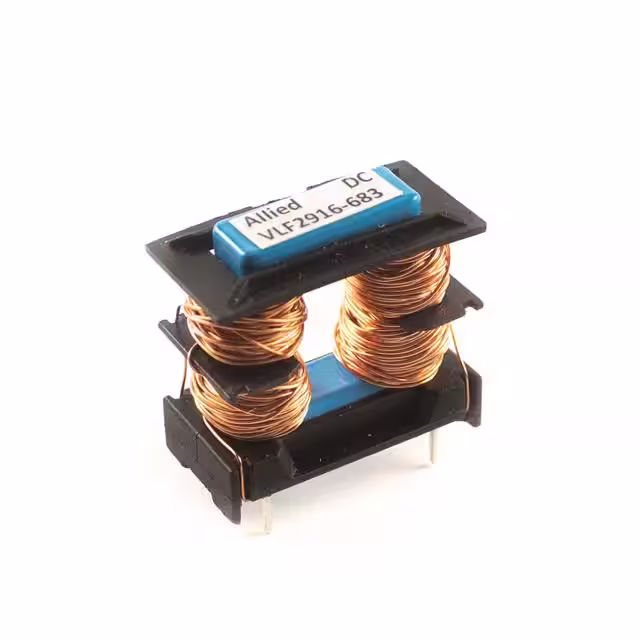

VLF2916-683 68mH Vert Line Filter Dble Choke Allied Components International	2,602	-	RFQ	データシート	Tape & Reel (TR)	VLF2916-683	Active	-	2	-	68 mH @ 10 kHz	900mA	1.1Ohm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.142 L x 1.102 W (29.00mm x 28.00mm)	1.102 (28.00mm)

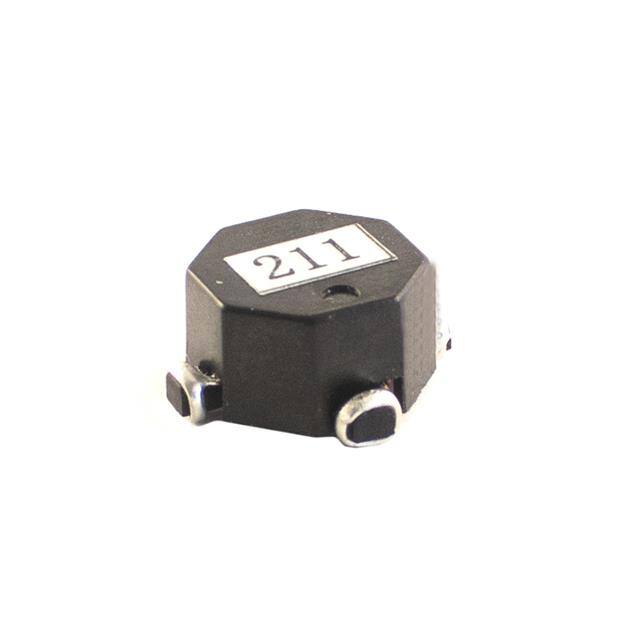

TCM3-211-RC 217uH SMD Common Mode Choke Allied Components International	3,497	-	RFQ	データシート	Tray	-	Active	-	2	-	217 µH @ 100 kHz	-	26mOhm	-	-	-20°C ~ 125°C	-	-	-	Surface Mount	0.591 L x 0.441 W (15.00mm x 11.20mm)	0.283 (7.20mm)

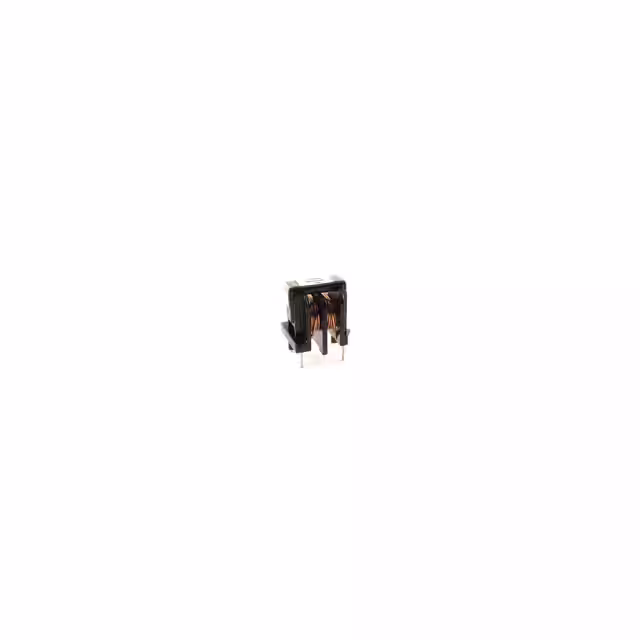

AUU105-4651 160H MIN. 2.1A, VERTICAL MOUNT Allied Components International	3,910	-	RFQ	データシート	Box	-	Active	-	2	-	160 µH @ 1 kHz	2.1A	80mOhm	-	-	-40°C ~ 130°C	-	-	-	Through Hole	0.748 L x 0.669 W (19.00mm x 17.00mm)
