コモンモードチョーク

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
P0469NLT CMC 11.6A 2LN SMD Pulse Electronics Power	2,141	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	11.6A	10mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
P0351NL CMC 2.8A 2LN SMD Pulse Electronics Power	2,909	-	RFQ	データシート	Tube	-	Active	Power Line	2	-	-	2.8A	80mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
P0420NL CMC 3.3A 2LN SMD Pulse Electronics Power	2,599	-	RFQ	データシート	Tube	-	Active	Power Line	2	-	-	3.3A	60mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
P0502NLT CMC 14A 2LN SMD Pulse Electronics Power	843	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	14A	8mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
P0429NLT CMC 9.7A 2LN SMD Pulse Electronics Power	3,082	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	9.7A	14mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)

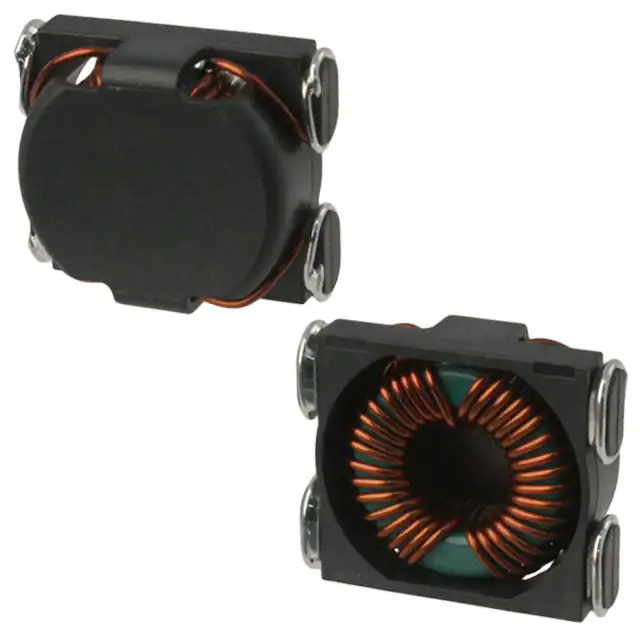

P0429NL CMC 9.7A 2LN SMD Pulse Electronics Power	2,227	-	RFQ	データシート	Tube	-	Active	Power Line	2	-	-	9.7A	14mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
PH9455.405NL CMC 4.5MH 12A 2LN 4.4KOHM TH Pulse Electronics Power	3,545	-	RFQ	データシート	Tray	-	Active	-	2	4.4 kOhms @ 4 MHz	4.5 mH @ 4 MHz	12A	8.5mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
PH9455.105NL CMC 1MH 22A 2LN 1.5KOHM TH Pulse Electronics Power	506	-	RFQ	データシート	Tray	-	Active	-	2	1.5 kOhms @ 15.94 MHz	1 mH @ 15.94 MHz	22A	2.1mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
PE-96190NL CMC 15A 2LN TH Pulse Electronics Power	360	-	RFQ	データシート	Tray	-	Active	Power Line	2	-	-	15A (Typ)	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.700 Dia (43.18mm)	1.030 (26.16mm)
PE-53911NLT CMC 1.5A 2LN SMD Pulse Electronics Power	3,383	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	-	-	1.5A	60mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)
PAC6006.503NLT CMC 17A 2LN 350 OHM SMD Pulse Electronics Power	3,663	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	350 Ohms @ 3.4 MHz	-	17A	1.8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.204NLT CMC 12A 2LN 1KOHM SMD Pulse Electronics Power	3,785	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1 kOhms @ 7 MHz	-	12A	4.8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.104NLT CMC 14A 2LN 610 OHM SMD Pulse Electronics Power	2,505	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	610 Ohms @ 11 MHz	-	14A	3.3mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PE-53914NLT CMC 500MA 2LN SMD Pulse Electronics Power	3,786	-	RFQ	データシート	Tape & Reel (TR)	-	Active	Power Line	2	-	-	500mA	850mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)

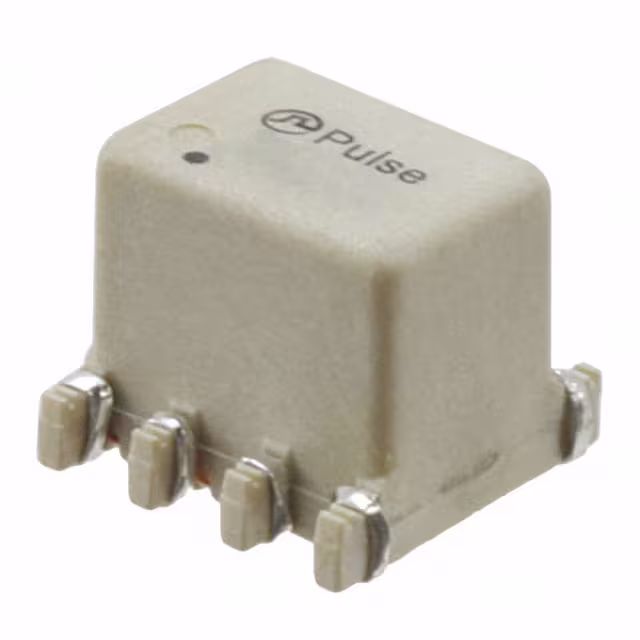

PA2742NL CMC 1A 2LN SMD Pulse Electronics Power	2,344	-	RFQ	データシート	Tube	-	Active	-	2	-	-	1A	92mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.360 L x 0.350 W (9.14mm x 8.89mm)	0.310 (7.87mm)

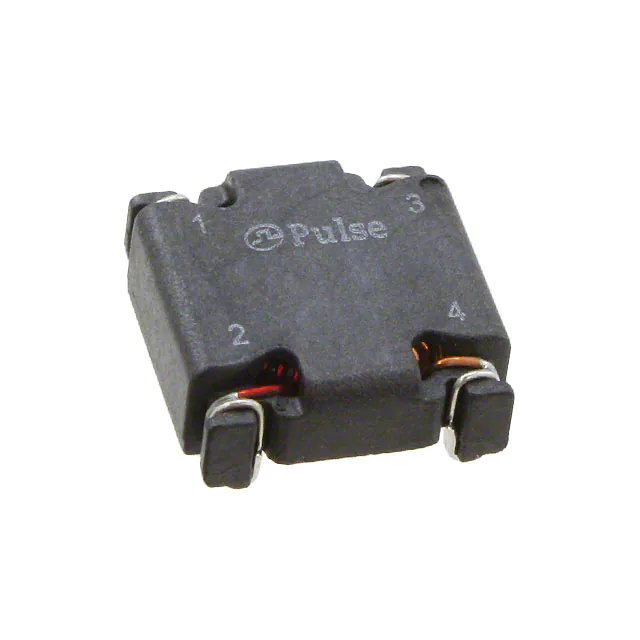

PA2748NL CMC 1.8A 2LN SMD Pulse Electronics Power	3,940	-	RFQ	データシート	Tube	-	Active	Power Line	2	-	-	1.8A	55mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.220 (5.60mm)

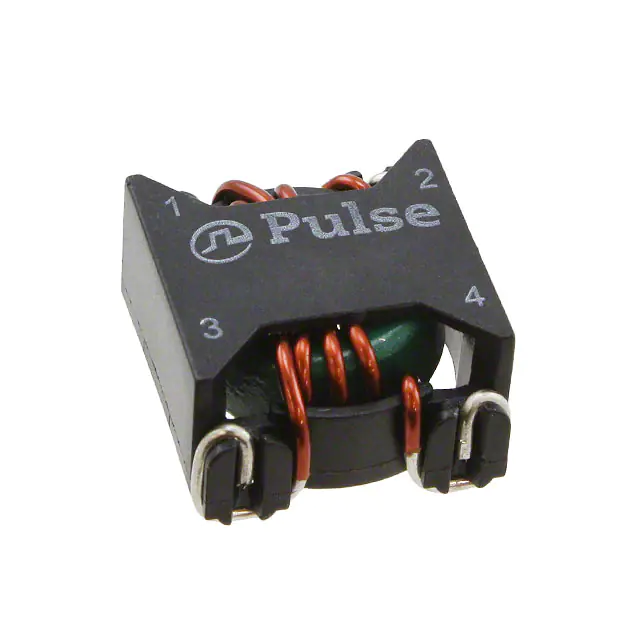

PA2753NL CMC 12.5A 2LN SMD Pulse Electronics Power	2,327	-	RFQ	データシート	Tube	-	Active	-	2	-	-	12.5A	3mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.390 (9.91mm)
PA2744NL CMC 4A 2LN SMD Pulse Electronics Power	2,856	-	RFQ	データシート	Tube	-	Active	-	2	-	-	4A	13.2mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.60mm)

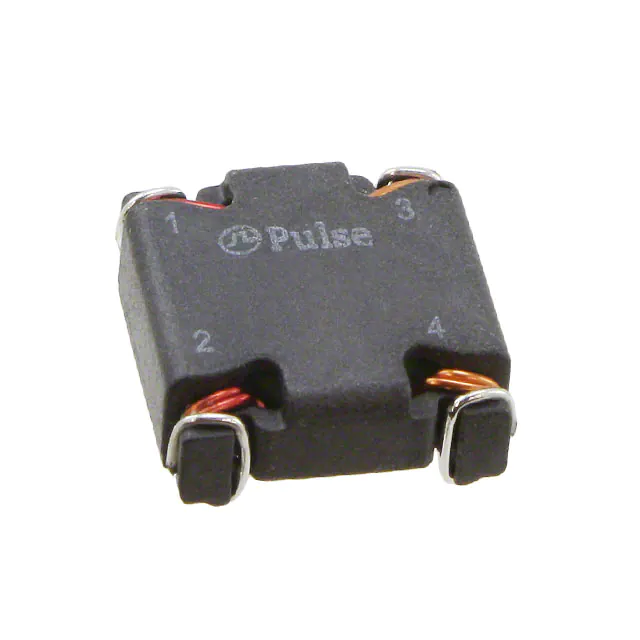

PA2743NL CMC 3.3A 2LN SMD Pulse Electronics Power	2,082	-	RFQ	データシート	Tube	-	Active	-	2	-	-	3.3A	18mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.60mm)
P0422NL CMC 4.7A 2LN SMD Pulse Electronics Power	3,839	-	RFQ	データシート	Tube	-	Active	Power Line	2	-	-	4.7A	40mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
