コモンモードチョーク

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
0805USB-502MLC CMC 273NH 500MA 2LN SMD COILCRAFT	958	-	RFQ	データシート	Strip	-	Active	Signal Line	2	-	273 nH @ 100 MHz	500mA	370mOhm	-	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.080 L x 0.050 W (2.03mm x 1.27mm)	0.065 (1.65mm)
B82793C0104N201 CMC 100UH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	2,958	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	B82793	Active	Signal Line	2	-	100 µH @ 100 kHz	500mA	180mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.280 L x 0.236 W (7.10mm x 6.00mm)	0.189 (4.80mm)
ACMS-Q3225E-201-T CMC 200UH 0.07A 4000M Abracon LLC	2,967	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	ACMS-Q3225E	Active	Signal Line	2	-	200 µH @ 100 kHz	70mA	4Ohm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.094 (2.40mm)
ACMP-Q7040-102-T CMC 1020 3A 17M Abracon LLC	3,963	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	ACMP-Q7040	Active	Power Line	2	1.02 kOhms @ 100 MHz	-	3A	17mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.276 L x 0.236 W (7.00mm x 6.00mm)	0.150 (3.80mm)
ACMS-Q4526C-101-T CMC 100UH 0.2A 2000M Abracon LLC	2,915	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	ACMS-Q4526C	Active	Signal Line	2	-	100 µH @ 100 kHz	200mA	2Ohm	50V	-	-40°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.108 (2.75mm)
ACMP-Q9050-102-T CMC 1000 5A 10M Abracon LLC	2,684	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	ACMP-Q9050	Active	Power Line	2	1 kOhms @ 100 MHz	-	5A	10mOhm	80V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.354 L x 0.276 W (9.00mm x 7.00mm)	0.177 (4.50mm)
PAC6006.264NLT CMC 11A 2LN 1.4KOHM SMD Pulse Electronics Power	2,674	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1.4 kOhms @ 5.3 MHz	-	11A	5.5mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.604NLT CMC 6.7A 2LN 2.5KOHM SMD Pulse Electronics Power	3,319	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	2.5 kOhms @ 3.9 MHz	-	6.7A	15mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.444NLT CMC 8.5A 2LN 1.9KOHM SMD Pulse Electronics Power	2,573	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1.9 kOhms @ 4.8 MHz	-	8.5A	10mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
ECMT1V1714H-8R0-R CHOKE COMMON MODE 8.0MH THT Eaton - Electronics Division	2,907	-	RFQ	データシート	Tray	ECMT1V17	Active	Power Line	2	-	8 mH @ 1 kHz	800mA	1Ohm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-2R0-R CHOKE COMMON MODE 2.0MH THT Eaton - Electronics Division	2,815	-	RFQ	データシート	Tray	ECMT1V17	Active	Power Line	2	-	2 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-1R0-R CHOKE COMMON MODE 1.0MH THT Eaton - Electronics Division	3,357	-	RFQ	データシート	Tray	ECMT1V17	Active	Power Line	2	-	1 mH @ 1 kHz	1A	100mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
PM3700-50-RC CMC 2MH 3.5A 2LN SMD Bourns Inc.	2,337	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	2 mH @ 1 kHz	3.5A	30mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)

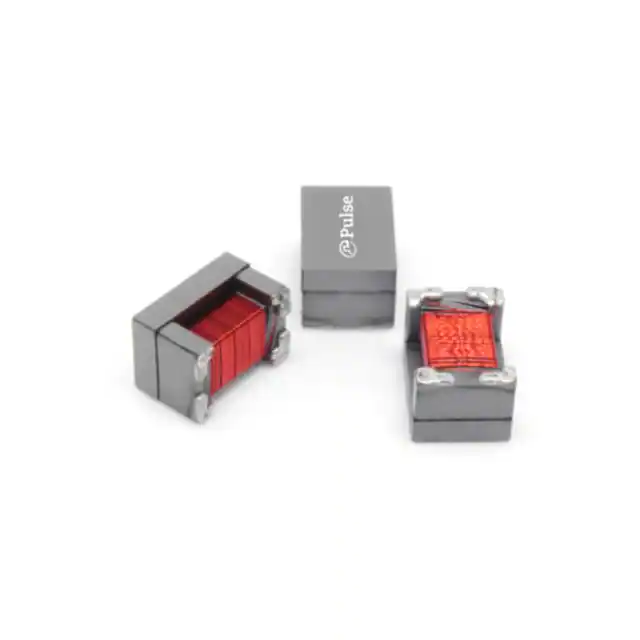

AE0100 CMC 100BT-1 SMD 1210 Pulse Electronics Network	3,616	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	Signal Line	2	-	-	100mA	3.5mOhm	60V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.096 (2.45mm)
CMS2-12-R CMC 915UH 670MA 2LN SMD Eaton - Electronics Division	800	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	915 µH @ 100 kHz	670mA	330mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
ED101-0.5-15M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	データシート	Box	ED101	Active	Power Line	2	-	15 mH @ 10 kHz	500mA	2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-0.75-12M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	データシート	Box	ED101	Active	Power Line	2	-	12 mH @ 10 kHz	750mA	1.2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-1-9M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	データシート	Box	ED101	Active	Power Line	2	-	9 mH @ 10 kHz	1A	600mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
RS514-1-02 CMC 120UH 1A 2LN TH Schaffner EMC Inc.	393	-	RFQ	データシート	Tray	RS	Active	Signal Line	2	-	120 µH @ 1 kHz	1A (Typ)	200mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.520 (13.20mm)
RS614-1-02 CMC 120UH 1A 2LN TH Schaffner EMC Inc.	143	-	RFQ	データシート	Tube	RS	Active	Signal Line	2	-	120 µH @ 1 kHz	1A (Typ)	200mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
