コモンモードチョーク

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

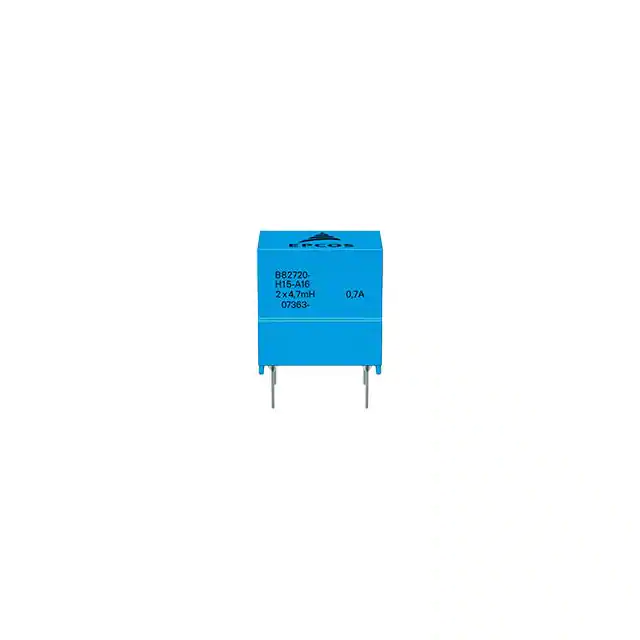

B82720H0015A030 CMC 47MH 300MA 2LN TH EPCOS - TDK Electronics	3,978	-	RFQ	データシート	Tray	B82720	Active	Signal Line	2	-	47 mH @ 10 kHz	300mA	2.7Ohm (Typ)	80V	42V	-40°C ~ 125°C	-	UL	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720H0014A013 CMC 5MH 300MA 4LN TH EPCOS - TDK Electronics	2,540	-	RFQ	データシート	Tray	B82720	Active	Signal Line	4	-	5 mH @ 10 kHz	300mA	550mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.512 L x 0.299 W (13.00mm x 7.60mm)	0.563 (14.30mm)
B82732W2601B030 CMC 47MH 600MA 2LN TH EPCOS - TDK Electronics	2,765	-	RFQ	データシート	Tray	B82732	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.4Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.681 (17.30mm)
B82732W2701B030 CMC 39MH 700MA 2LN TH EPCOS - TDK Electronics	2,205	-	RFQ	データシート	Tray	B82732	Active	Power Line	2	-	39 mH @ 10 kHz	700mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.681 (17.30mm)
B82732W2901B030 CMC 27MH 900MA 2LN TH EPCOS - TDK Electronics	2,728	-	RFQ	データシート	Tray	B82732	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	750mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.681 (17.30mm)
B82732R2501B031 CMC0.5A 2LN TH EPCOS - TDK Electronics	3,028	-	RFQ		Tray	B82732R	Active	Power Line	2	-	-	-	-	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.654 W (24.00mm x 16.60mm)	0.925 (23.50mm)
B82722A2202N020 CMC 4.2MH 2A 2LN TH EPCOS - TDK Electronics	2,955	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	4.2 mH @ 10 kHz	2A	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2252N001 CMC 1.7MH 2.5A 2LN TH EPCOS - TDK Electronics	3,690	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	1.7 mH @ 10 kHz	2.5A	80mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2501N022 CMC 47MH 500MA 2LN TH EPCOS - TDK Electronics	3,585	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	47 mH @ 10 kHz	500mA	1.5Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2801N001 CMC 27MH 0.8A TH EPCOS - TDK Electronics	2,853	-	RFQ		Tray	B82722	Active	-	-	-	-	-	-	-	-	-	-	-	-	Through Hole	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.555 (14.10mm)
B82722J2202N020 CMC 4.2MH 2A 2LN TH EPCOS - TDK Electronics	3,514	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	4.2 mH @ 10 kHz	2A	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2501N020 CMC 56MH 500MA 2LN TH EPCOS - TDK Electronics	3,008	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	56 mH @ 10 kHz	500mA	2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2801N020 CMC 27MH 800MA 2LN TH EPCOS - TDK Electronics	2,497	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	27 mH @ 10 kHz	800mA	600mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2102N020 CMC 15MH 1A 2LN TH EPCOS - TDK Electronics	3,463	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	15 mH @ 10 kHz	1A	540mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2152N020 CMC 10MH 1.5A 2LN TH EPCOS - TDK Electronics	3,825	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	10 mH @ 10 kHz	1.5A	240mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2252N001 CMC 1.7MH 2.5A 2LN TH EPCOS - TDK Electronics	2,733	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	1.7 mH @ 10 kHz	2.5A	80mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2301N002 CMC 68MH 300MA 2LN TH EPCOS - TDK Electronics	2,193	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	68 mH @ 10 kHz	300mA	2.5Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2501N021 CMC 39MH 500MA 2LN TH EPCOS - TDK Electronics	2,765	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	39 mH @ 10 kHz	500mA	1.12Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722J2501N022 CMC 47MH 500MA 2LN TH EPCOS - TDK Electronics	3,245	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	47 mH @ 10 kHz	500mA	1.5Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
B82722A2102N020 CMC 15MH 1A 2LN TH EPCOS - TDK Electronics	3,933	-	RFQ	データシート	Tray	B82722	Active	Power Line	2	-	15 mH @ 10 kHz	1A	540mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.555 (14.10mm)
