コモンモードチョーク

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
B82725J2202N020 CMC 18MH 2A 2LN TH EPCOS - TDK Electronics	3,688	-	RFQ	データシート	Tray	B82725	Active	Power Line	2	-	18 mH @ 10 kHz	2A	270mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.591 L x 0.846 W (40.40mm x 21.50mm)	1.575 (40.00mm)
B82725J2602N040 CMC 7.5MH 6A 2LN TH EPCOS - TDK Electronics	2,029	-	RFQ	データシート	Tray	B82725	Active	Power Line	2	-	7.5 mH @ 10 kHz	6A	40mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.591 L x 0.846 W (40.40mm x 21.50mm)	1.575 (40.00mm)
B82725A2652N020 CMC 4.1MH 6.5A 2LN TH EPCOS - TDK Electronics	3,738	-	RFQ	データシート	Tray	B82725	Active	Power Line	2	-	4.1 mH @ 10 kHz	6.5A	31mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	0.984 (25.00mm)
B82725J2103N020 CMC 2MH 10A TH EPCOS - TDK Electronics	3,024	-	RFQ	データシート	Tray	B82725	Active	-	-	-	-	-	-	-	-	-	-	-	-	Through Hole	1.591 L x 0.846 W (40.40mm x 21.50mm)	1.575 (40.00mm)
B82725J2103N021 CMC 2.5MH 10A 2LN TH EPCOS - TDK Electronics	3,420	-	RFQ	データシート	Tray	B82725	Active	Power Line	2	-	2.5 mH @ 10 kHz	10A	15mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.591 L x 0.846 W (40.40mm x 21.50mm)	1.575 (40.00mm)

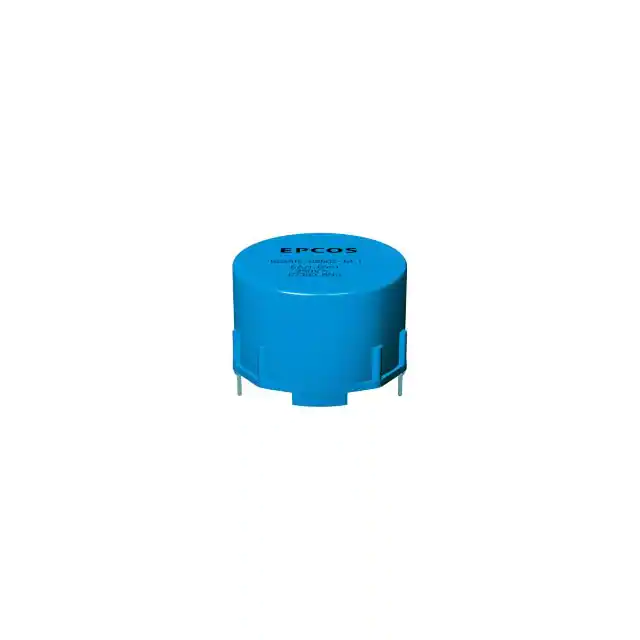

B82615B2102M001 CMC 20MH 1A 2LN TH PFC EPCOS - TDK Electronics	2,653	-	RFQ	データシート	Tray	B82615	Active	Power Line	2	-	20 mH @ 10 kHz	1A	3Ohm (Typ)	350V	250V	-40°C ~ 125°C	-	-	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82615B2302M001 CMC 2.5MH 3A 2LN TH PFC EPCOS - TDK Electronics	3,952	-	RFQ	データシート	Tray	B82615	Active	Power Line	2	-	2.5 mH @ 10 kHz	3A	400mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	-	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82615B2402M001 CMC 1.5MH 4A 2LN TH PFC EPCOS - TDK Electronics	3,801	-	RFQ	データシート	Tray	B82615	Active	Power Line	2	-	1.5 mH @ 10 kHz	4A	220mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	-	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82625B2402M001 CMC 400UH 4A 2LN TH PFC EPCOS - TDK Electronics	3,815	-	RFQ	データシート	Tray	B82625	Active	Power Line	2	-	400 µH @ 100 kHz	4A	120mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, VDE	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82625B2502M001 CMC 250UH 5A 2LN TH PFC EPCOS - TDK Electronics	3,759	-	RFQ	データシート	Tray	B82625	Active	Power Line	2	-	250 µH @ 100 kHz	5A	72mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, VDE	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82625B2102M001 CMC 5MH 1A 2LN TH PFC EPCOS - TDK Electronics	2,097	-	RFQ	データシート	Tray	B82625	Active	Power Line	2	-	5 mH @ 10 kHz	1A	1.45Ohm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, VDE	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82625B2202M001 CMC 1.2MH 2A 2LN TH PFC EPCOS - TDK Electronics	3,281	-	RFQ	データシート	Tray	B82625	Active	Power Line	2	-	1.2 mH @ 10 kHz	2A	420mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, VDE	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82625B2302M001 CMC 700UH 3A 2LN TH PFC EPCOS - TDK Electronics	2,111	-	RFQ	データシート	Tray	B82625	Active	Power Line	2	-	700 µH @ 100 kHz	3A	210mOhm (Typ)	350V	250V	-40°C ~ 125°C	-	ENEC, VDE	PFC	Through Hole	1.732 L x 1.669 W (44.00mm x 42.40mm)	1.181 (30.00mm)
B82747S4253A040 CMC 850UH 30A 3LN TH EPCOS - TDK Electronics	2,920	-	RFQ	データシート	Tray	B82747	Active	Power Line	3	-	850 µH @ 100 kHz	30A	1.9mOhm (Typ)	-	440/250V	-40°C ~ 125°C	-	UR	-	Through Hole	2.520 Dia (64.00mm)	1.378 (35.00mm)
B82747S6313N061 CMC 950UH 31A 3LN TH EPCOS - TDK Electronics	3,279	-	RFQ	データシート	Tray	B82747	Active	Power Line	3	-	950 µH @ 100 kHz	31A	1.5mOhm (Typ)	-	440/250V	-40°C ~ 125°C	-	-	-	Through Hole	2.677 Dia (68.00mm)	1.299 (33.00mm)
B82796C0225N265 CMC 2.2MH 500MA 2LN TH EPCOS - TDK Electronics	3,991	-	RFQ	データシート	Bulk	B82796	Obsolete	Signal Line	2	-	2.2 mH @ 10 kHz	500mA	420mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.295 L x 0.224 W (7.50mm x 5.70mm)	0.193 (4.90mm)
B82799S223N1 CMC 22UH 250MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	2,641	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	B82799	Obsolete	Signal Line	2	-	22 µH @ 100 kHz	250mA	170mOhm (Typ)	80V	42V	-55°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.126 (3.20mm)
B82799S513N1 CMC 51UH 200MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	3,696	-	RFQ	データシート	Tape & Reel (TR),Cut Tape (CT)	B82799	Obsolete	Signal Line	2	-	51 µH @ 100 kHz	200mA	250mOhm (Typ)	80V	42V	-55°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.126 (3.20mm)
B82502WC10 CMC 680UH 2A 2LN TH EPCOS - TDK Electronics	2,604	-	RFQ	データシート	Tray	B82502	Obsolete	Power Line	2	-	680 µH @ 100 kHz	2A	550mOhm (Typ)	600V	500V	-	-	-	-	Through Hole	1.969 L x 0.886 W (50.00mm x 22.50mm)	0.512 (13.00mm)
B82502WC2 CMC 82MH 200MA 2LN TH EPCOS - TDK Electronics	2,643	-	RFQ	データシート	Tray	B82502	Obsolete	Power Line	2	-	82 mH @ 10 kHz	200mA	45Ohm (Typ)	600V	500V	-	-	-	-	Through Hole	1.969 L x 0.886 W (50.00mm x 22.50mm)	0.512 (13.00mm)
