フェライトコア

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66289G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	2,516	-	RFQ	データシート	Box	ELP38/8/25	Active	ELP	ELP 38 x 8 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.324 (8.25mm)
B64290L0616X830 FERRITE CORE TOROID 9.16UH N30 EPCOS - TDK Electronics	531	-	RFQ	データシート	Box	TX25.3/14.8/20	Active	Toroid	-	N30	1.047 (26.60mm)	9.16 µH	±25%	Ungapped	-	4300	0.59	60.07	102.5	-	6157	Epoxy	0.839 (21.30mm)
B65875B0000R049 FERRITE CORE PQ 2.4UH N49 2PCS EPCOS - TDK Electronics	375	-	RFQ	データシート	Tray	PQ20/16	Active	PQ	PQ 20 x 16	N49	-	2.4 µH	-20%, +30%	Ungapped	1105	1500	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)

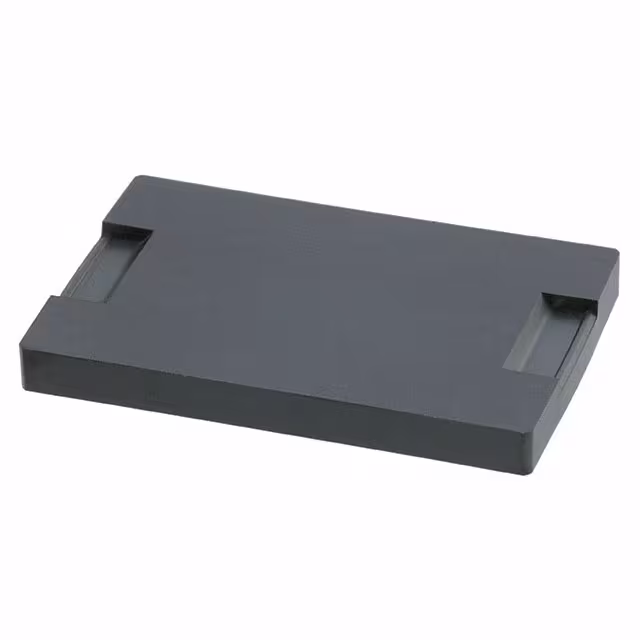

B66459K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	834	-	RFQ	データシート	Bag	I38/4/25	Active	I	I 38 x 4 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

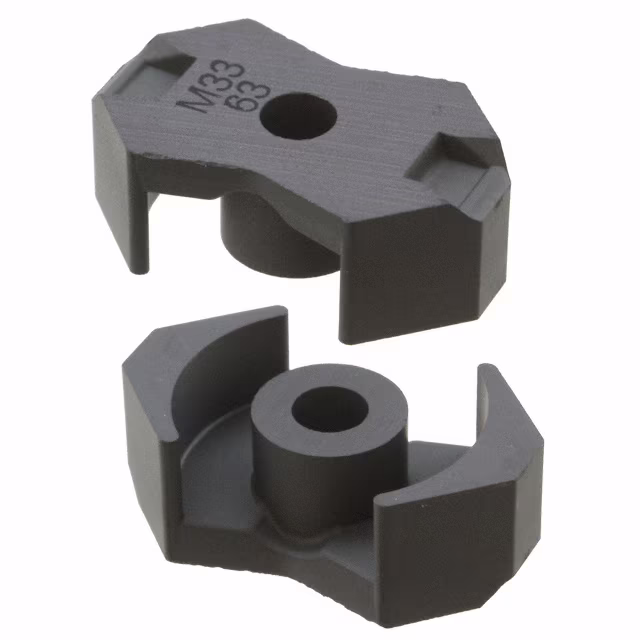

B65807N0063A033 FERRITE CORE RM 63NH M33 2PCS EPCOS - TDK Electronics	800	-	RFQ	データシート	Box	RM6	Active	RM	RM 6	M33	-	63 nH	±3%	Gapped	43.2	750	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65875A0000R049 FERRITE CORE PQ 2UH N49 2PCS EPCOS - TDK Electronics	316	-	RFQ	データシート	Box	PQ20/20	Active	PQ	PQ 20 x 20	N49	-	2 µH	-20%, +30%	Ungapped	1150	1500	0.718	45.2	62.9	54.4	2843	Uncoated	0.398 (10.10mm)
B65661W0000R030 FERRITE CORE P 8.3UH N30 2PCS EPCOS - TDK Electronics	2,962	-	RFQ	データシート	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N30	0.866 (22.00mm)	8.3 µH	-20%, +30%	Ungapped	3020	4300	0.46	33.2	72.6	58.1	2410	Uncoated	0.268 (6.80mm)
B66365G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	273	-	RFQ	データシート	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66365G1500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	270	-	RFQ	データシート	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66287K0000X195 FERRITE CORE I N95 EPCOS - TDK Electronics	424	-	RFQ	データシート	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B65651D0000R048 FERRITE CORE P 2.8UH N48 2PCS EPCOS - TDK Electronics	3,261	-	RFQ	データシート	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	2.8 µH	-20%, +30%	Ungapped	1340	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651W0000R087 FERRITE CORE P 3.6UH N87 2PCS EPCOS - TDK Electronics	3,418	-	RFQ	データシート	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N87	0.724 (18.40mm)	3.6 µH	-20%, +30%	Ungapped	1630	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
B65803N0063A033 FERRITE CORE RM 63NH M33 2PCS EPCOS - TDK Electronics	3,306	-	RFQ	データシート	Box	RM4	Active	RM	RM 4	M33	-	63 nH	±3%	Gapped	96	750	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)

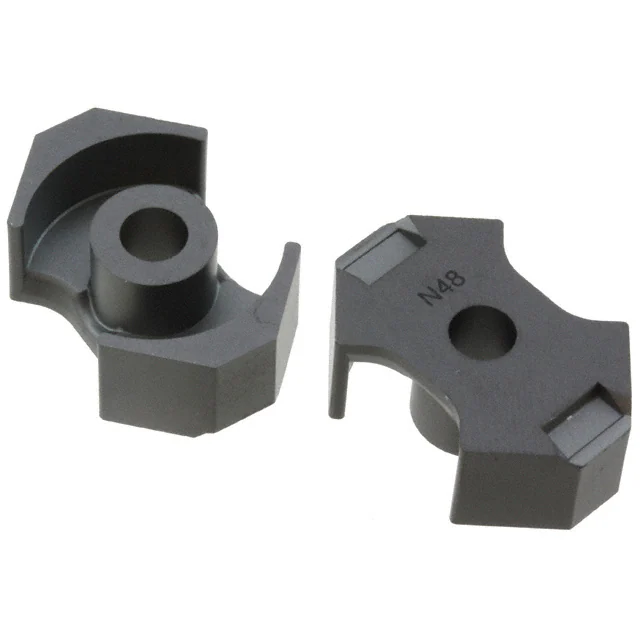

B65811D0000R048 FERRITE CORE RM 2.9UH N48 2PCS EPCOS - TDK Electronics	800	-	RFQ	データシート	Box	RM8	Active	RM	RM 8	N48	-	2.9 µH	-20%, +30%	Ungapped	1550	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)

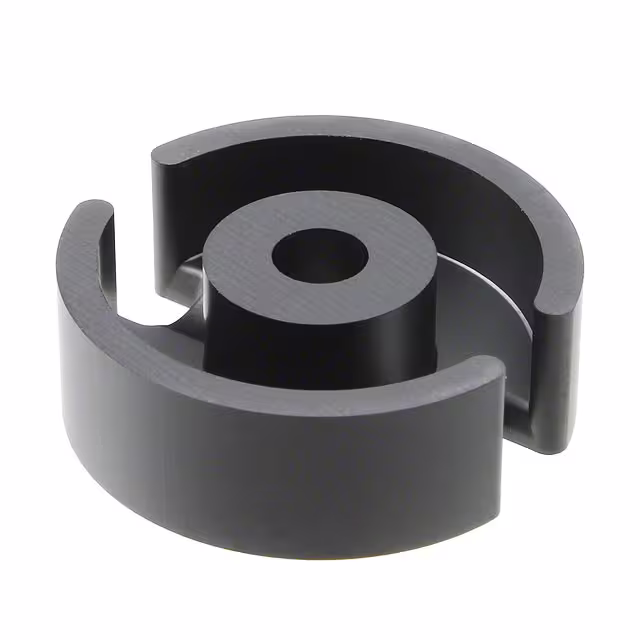

B65941A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	511	-	RFQ	データシート	Box	PS30.5/10.2	Active	PS	PS 30.5 x 10.2	N22	1.200 (30.50mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
B65813J0630J041 FERRITE CORE RM 630NH N41 2PCS EPCOS - TDK Electronics	2,279	-	RFQ	データシート	Box	RM10	Active	RM	RM 10	N41	-	630 nH	±5%	Gapped	225	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J1600K041 FERRITE CORE RM 1.6UH N41 2PCS EPCOS - TDK Electronics	464	-	RFQ	データシート	Box	RM10	Active	RM	RM 10	N41	-	1.6 µH	±10%	Gapped	572	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65877A0000R087 FERRITE CORE PQ 4.5UH N87 2PCS EPCOS - TDK Electronics	319	-	RFQ	データシート	Box	PQ26/25	Active	PQ	PQ 26 x 25	N87	-	4.5 µH	-20%, +30%	Ungapped	1550	2200	0.44	53.6	122	108.7	6530	Uncoated	0.487 (12.38mm)
B66367G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,475	-	RFQ	データシート	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)

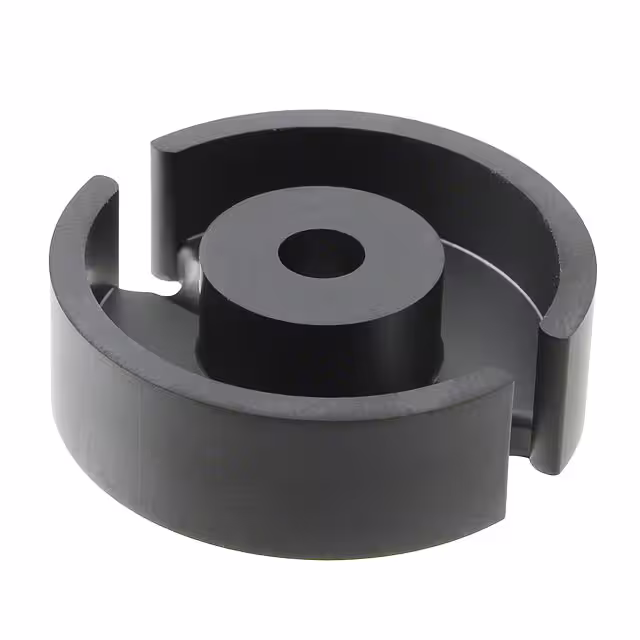

B65947A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	700	-	RFQ	データシート	Box	PS35/10.8	Active	PS	PS 35 x 10.8	N22	1.378 (35.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.425 (10.80mm)
