フェライトコア

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65513J0000R097 FERRITE CORE ER 1.5UH N97 2PCS EPCOS - TDK Electronics	2,112	-	RFQ	データシート	Tray	ER14.5	Active	ER	ER 14.5 x 6	N97	-	1.5 µH	-20%, +30%	Ungapped	1290	2300	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)
B66281K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	3,202	-	RFQ	データシート	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
B66281K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	3,671	-	RFQ	データシート	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
B66281K0000X608 I14/1.5/5 PC200 660 +25% -25% EPCOS - TDK Electronics	2,751	-	RFQ		Box	I14/1.5/5	Active	I	I 14 x 1.5 x 5	-	-	-	±25%	Ungapped	-	-	1.15	16.7	14.5	13.9	242	Uncoated	0.059 (1.50mm)
B66455K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	2,743	-	RFQ	データシート	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

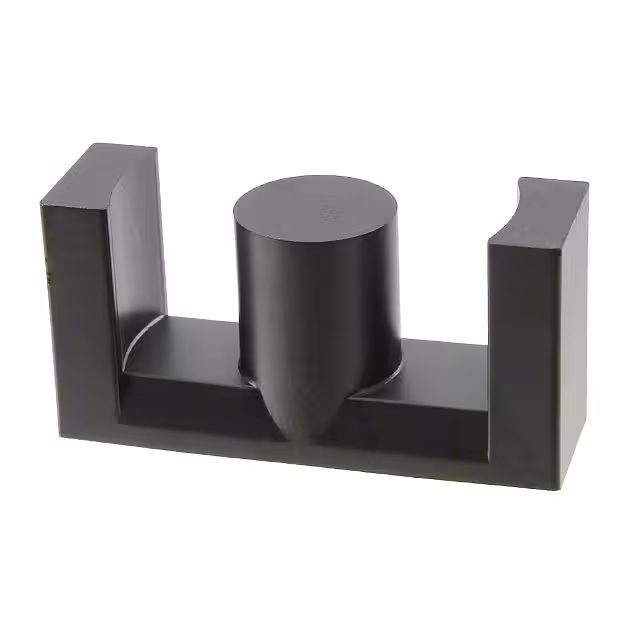

B66361G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,462	-	RFQ	データシート	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)

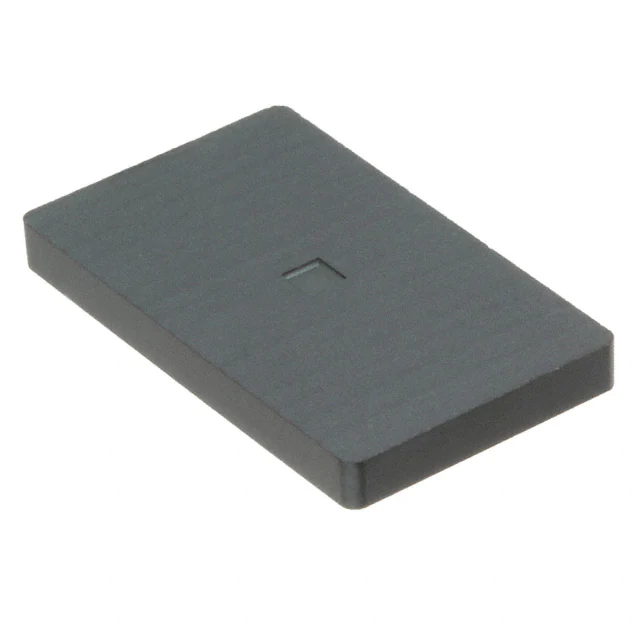

B66481P0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	3,080	-	RFQ	データシート	Box	I25/2/18	Active	I	I 25 x 2	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B66453G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	3,016	-	RFQ	データシート	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

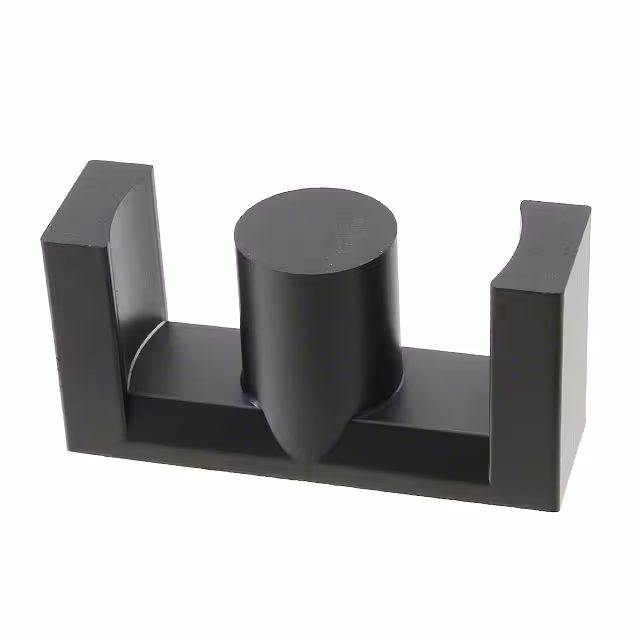

B66361G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,838	-	RFQ	データシート	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B66455G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	2,144	-	RFQ	データシート	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B66483G0000X197 FERRITE CORE EQ N97 1PC EPCOS - TDK Electronics	3,203	-	RFQ	データシート	Box	EQ20/6.3/14	Active	EQ	EQ 20 x 6	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.248 (6.30mm)
B65807J0000R035 FERRITE CORE RM 6.2UH T35 2PCS EPCOS - TDK Electronics	3,584	-	RFQ	データシート	Box	RM6	Active	RM	RM 6	T35	-	6.2 µH	-20%, +30%	Ungapped	3860	6000	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65805J0250A087 FERRITE CORE EPCOS - TDK Electronics	2,310	-	RFQ	データシート	Bulk	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65541D0000R033 FERRITE CORE P 970NH M33 2PCS EPCOS - TDK Electronics	2,797	-	RFQ	データシート	Box	P14/8	Active	P (Pot Core)	P 14 x 8	M33	0.563 (14.30mm)	970 nH	-20%, +30%	Ungapped	618	750	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
B65807C0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	2,040	-	RFQ	データシート	Box	RM6	Active	RM	RM 6	N48	-	400 nH	±3%	Gapped	274	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65885A0000R095 FERRITE CORE PQ 2.75UH N95 2PCS EPCOS - TDK Electronics	3,058	-	RFQ	データシート	Box	PQ16/11.6	Active	PQ	PQ 16 x 11.6	N95	-	2.75 µH	-20%, +30%	Ungapped	1400	2000	0.641	27	42.1	38.5	1136	Uncoated	0.228 (5.80mm)

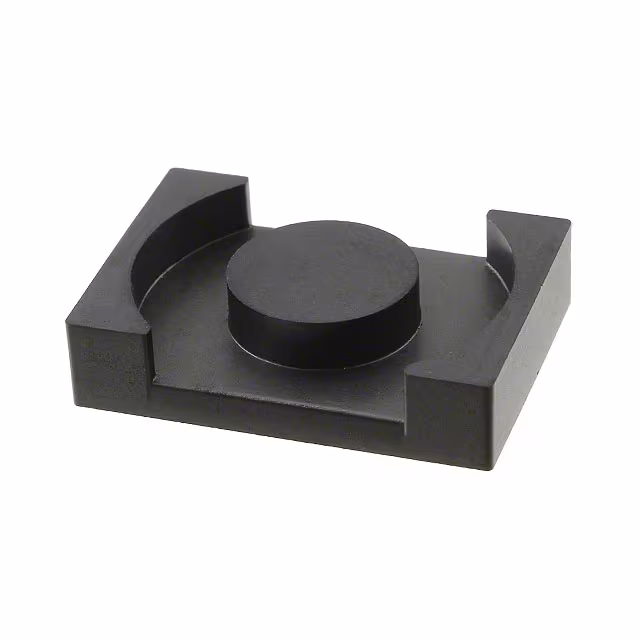

B66481G0000X197 FERRITE CORE EQ N97 1PC EPCOS - TDK Electronics	2,897	-	RFQ	データシート	Box	EQ25/6/18	Active	EQ	EQ 25 x 6	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.220 (5.60mm)
B65805N0125G048 FERRITE CORE EPCOS - TDK Electronics	3,310	-	RFQ	データシート	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

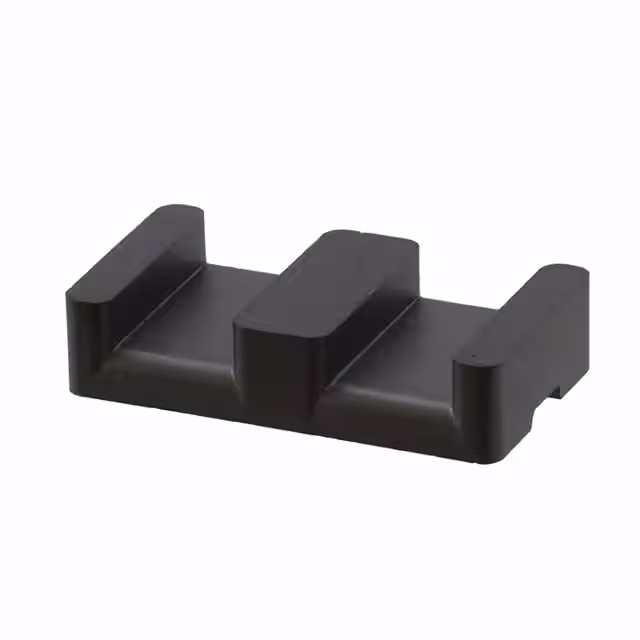

B66457G0000X149 FERRITE CORE ELP N49 EPCOS - TDK Electronics	3,859	-	RFQ	データシート	Tray	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)

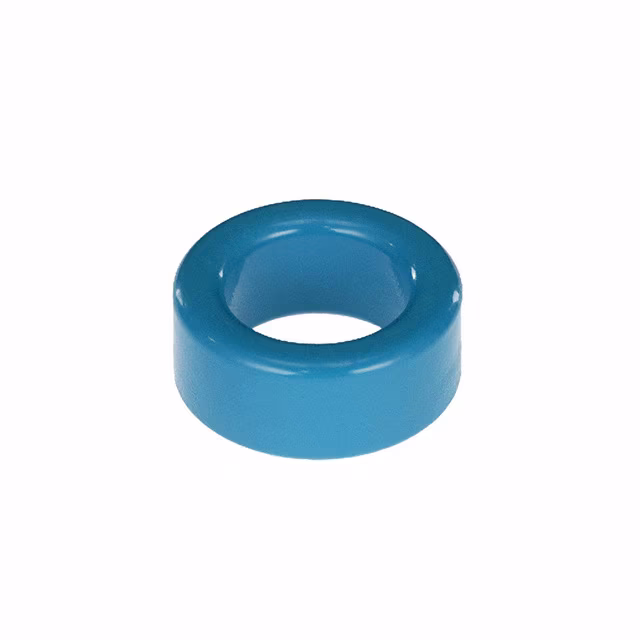

B64290L0657X830 FERRITE CORE TOROID 4.54UH N30 EPCOS - TDK Electronics	400	-	RFQ	データシート	Box	TX30/20/12.5	Active	Toroid	-	N30	1.264 (32.10mm)	4.54 µH	±25%	Ungapped	-	4300	1.19	77.02	64.66	-	4980	Epoxy	0.531 (13.50mm)
