フェライトコア

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65525J0160A087 FERRITE CORE ER 160NH N87 2PCS EPCOS - TDK Electronics	3,553	-	RFQ	データシート	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	160 nH	±3%	Gapped	140	2200	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)
B66283G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	3,390	-	RFQ	データシート	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B65523J0000R608 FERRITE CORE ER PC200 EPCOS - TDK Electronics	3,289	-	RFQ	データシート	Bulk	ER9.5	Active	ER	ER 9.5 x 5	PC200	-	-	-20%, +30%	Ungapped	460	800	1.54	13.6	8.81	7.6	120	Uncoated	0.197 (5.00mm)

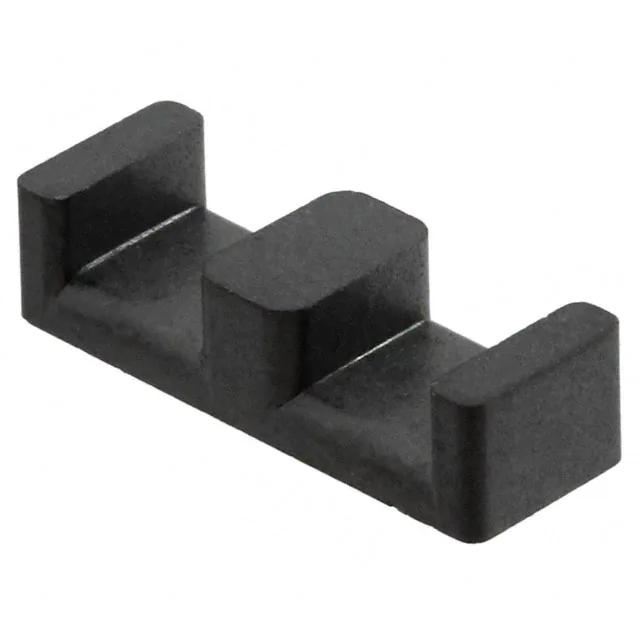

B66453G0000X608 ELP18/4/10-PC200 EPCOS - TDK Electronics	3,968	-	RFQ	データシート	Bulk	ELP18/4/10	Active	ELP	-	PC200	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

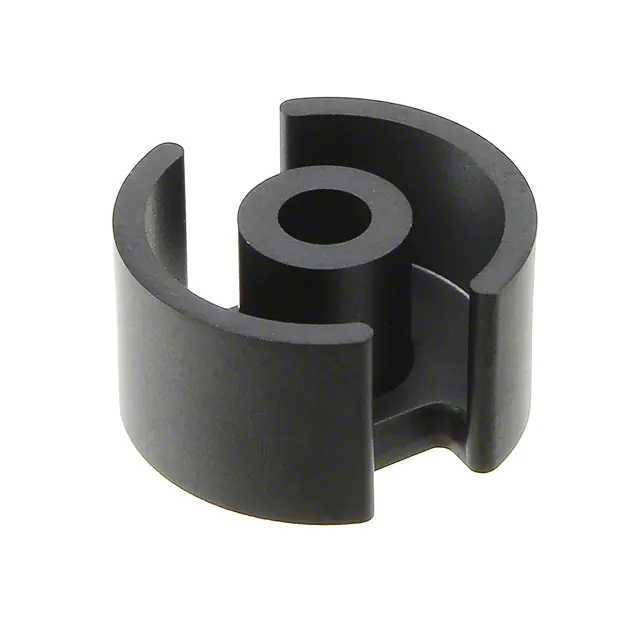

B65937A0000X022 FERRITE CORE P N22 EPCOS - TDK Electronics	3,141	-	RFQ	データシート	Box	PCH14.4/7.5	Active	P (Pot Core)	P Core Half 14 x 7.5	N22	0.567 (14.40mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)

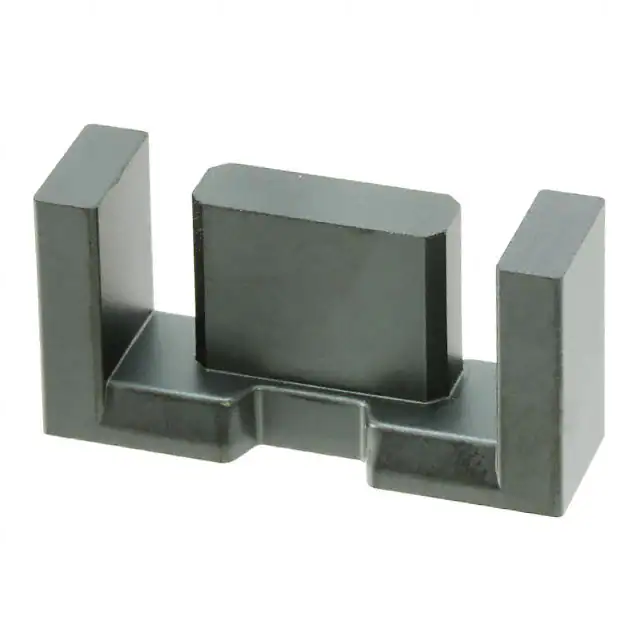

B66423U0160K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,802	-	RFQ	データシート	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

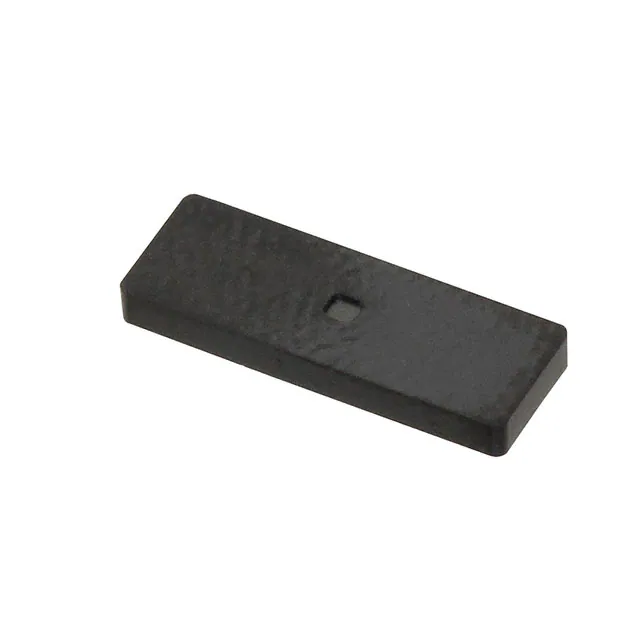

B66281K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	3,480	-	RFQ	データシート	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)

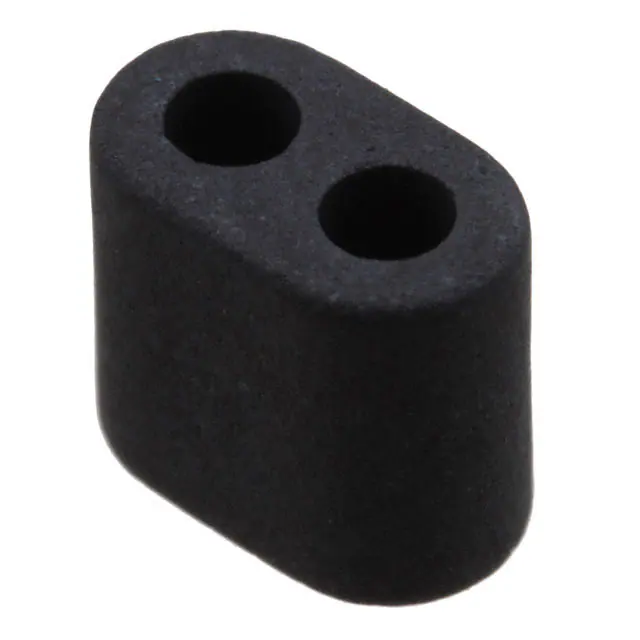

B62152A0007X001 FERRITE CORE 2 HOLE 140NH K1 EPCOS - TDK Electronics	3,993	-	RFQ	データシート	Box	MHB2-7.25/4.2/6.2	Active	Multi-Hole (2)	-	K1	-	140 nH	±30%	Ungapped	-	80	0.75	7.6	10.2	-	78	Uncoated	0.244 (6.20mm)

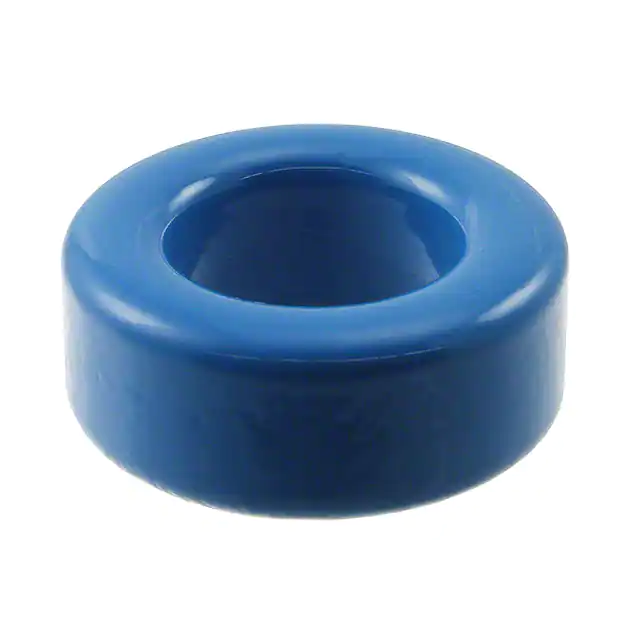

B64290L0618X027 FERRITE CORE TOROID EPCOS - TDK Electronics	3,524	-	RFQ	データシート	Box	TX25.3/14.8/10	Active	Toroid	-	N27	1.047 (26.60mm)	2.15 µH	±25%	Ungapped	-	2000	1.17	60.07	51.26	51.26	3079	Epoxy	0.433 (11.00mm)

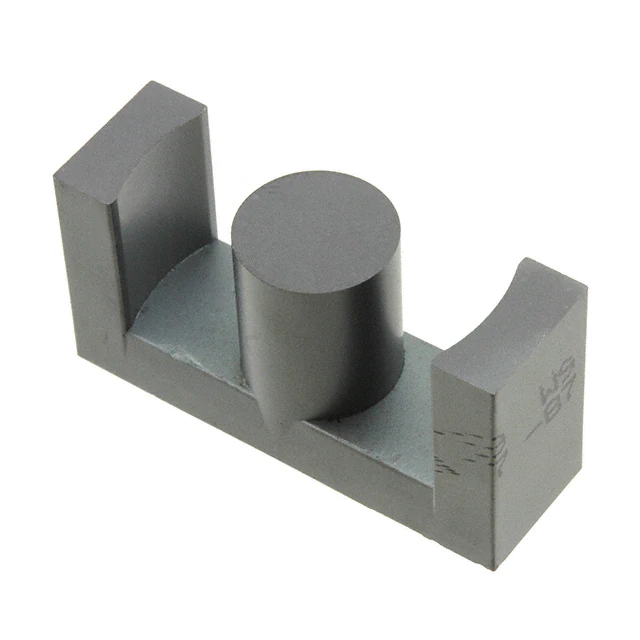

B66361G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,255	-	RFQ	データシート	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B64290A0719X049 FERRITE CORE TOROID 1.13UH N49 EPCOS - TDK Electronics	3,066	-	RFQ	データシート	Box	T22.1/13.7/7.9	Active	Toroid	R 22.1 x 13.7 x 7.9	N49	0.870 (22.10mm)	1.13 µH	±25%	Ungapped	-	1500	1.66	54.2	32.6	-	1763	Uncoated	0.311 (7.90mm)

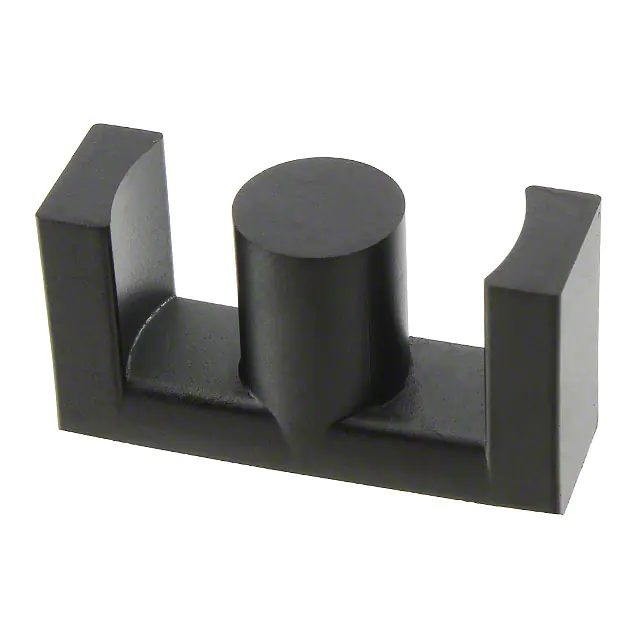

B66358G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	3,109	-	RFQ	データシート	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)

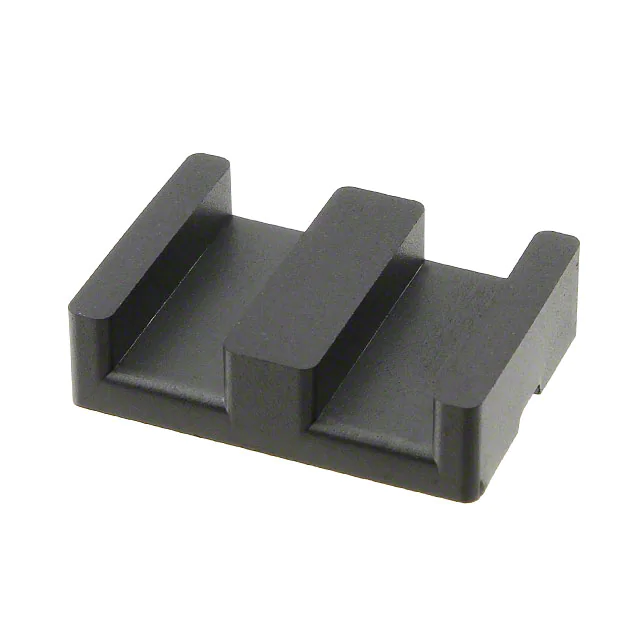

B66285G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	2,662	-	RFQ	データシート	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)

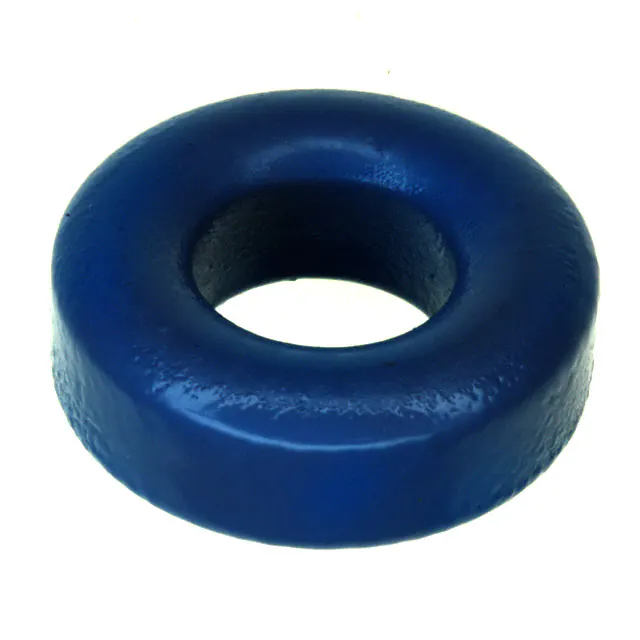

B64290L0632X038 FERRITE CORE TOROID 9.74UH T38 EPCOS - TDK Electronics	3,985	-	RFQ	データシート	Box	TX20/10/7	Active	Toroid	-	T38	0.835 (21.20mm)	9.74 µH	±30%	Ungapped	-	10000	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)

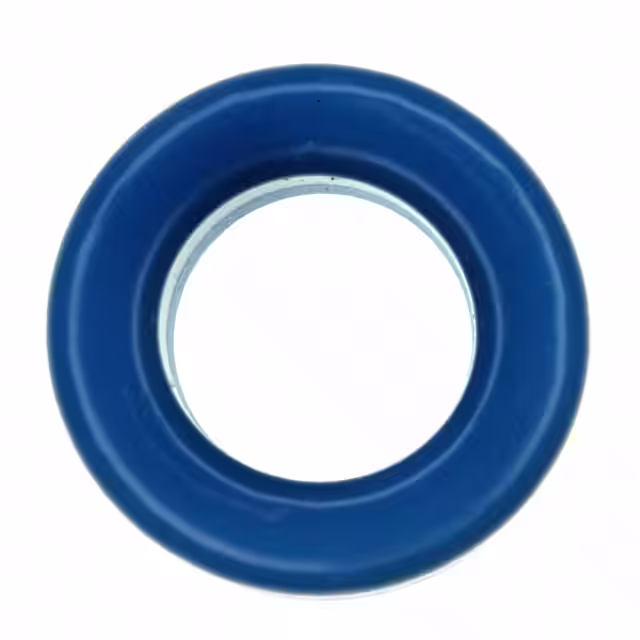

B64290L0618X830 FERRITE CORE TOROID 4620NH N30 EPCOS - TDK Electronics	3,939	-	RFQ	データシート	Bulk	TX25.3/14.8/10	Active	Toroid	-	N30	1.047 (26.60mm)	4.62 µH	±25%	Ungapped	-	4300	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)

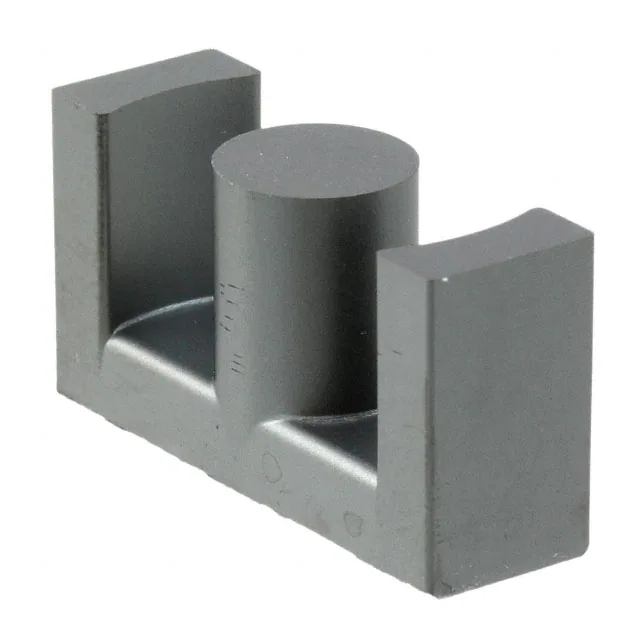

B66358G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,739	-	RFQ	データシート	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
B66283K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	2,878	-	RFQ	データシート	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)

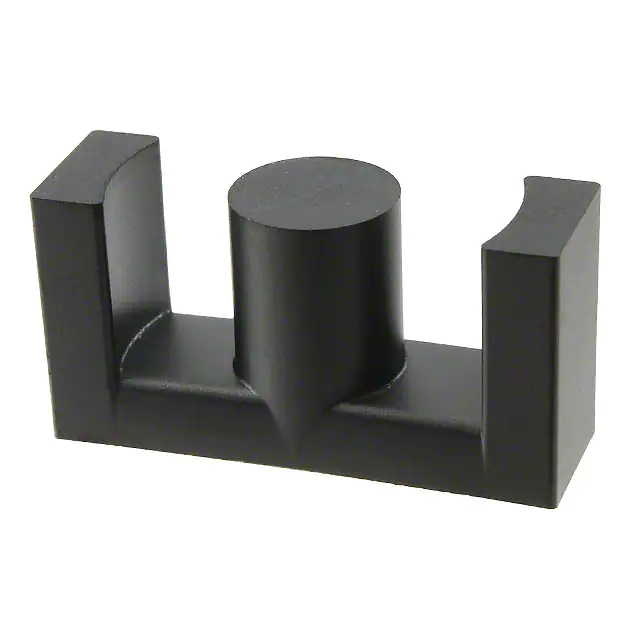

B66358G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2,567	-	RFQ	データシート	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
B66281K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	2,172	-	RFQ	データシート	Bag	I14/1.5/5	Active	I	I 14 x 1.5 x 5	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)

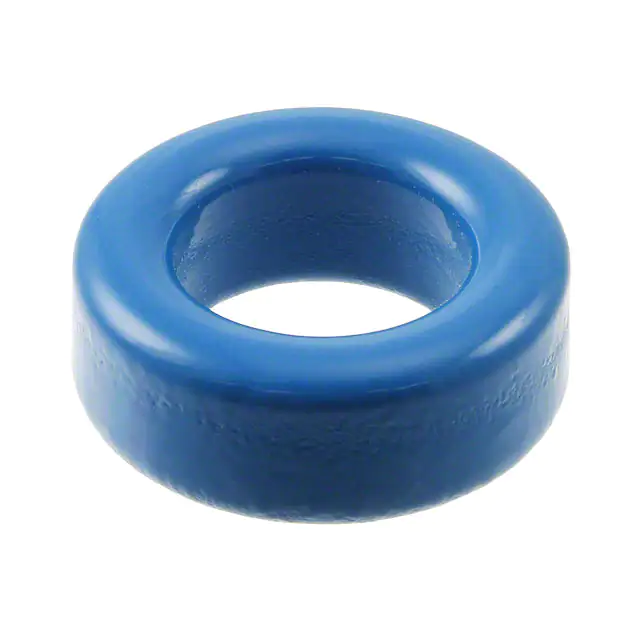

B64290L0719X038 FERRITE CORE TOROID 7.57UH T38 EPCOS - TDK Electronics	3,408	-	RFQ	データシート	Box	TX22/14/7.9	Active	Toroid	-	T38	0.917 (23.30mm)	7.57 µH	±30%	Ungapped	-	10000	1.66	54.2	32.6	-	1763	Epoxy	0.354 (9.00mm)
