フェライトコア

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65978A0000X022 FERRITE CORES EPCOS - TDK Electronics	2,971	-	RFQ		Box	PCH14/5.95	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66319G0100X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,950	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)

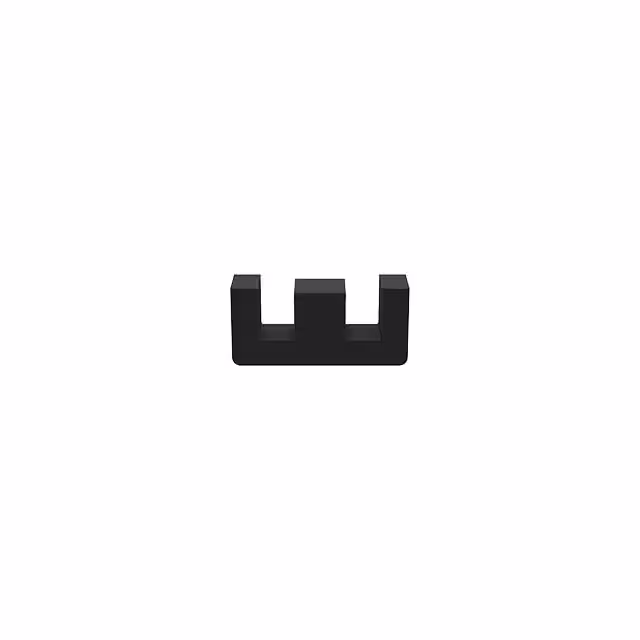

B66319G0180X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,331	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
B66319G0200X187 FERRITE CORE EPCOS - TDK Electronics	3,147	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B65839A0000R045 FERRITE CORE EP 1.5UH N45 2PCS EPCOS - TDK Electronics	2,267	-	RFQ	データシート	Box	EP7	Active	EP	EP 7	N45	-	1.5 µH	-20%, +30%	Ungapped	1820	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)

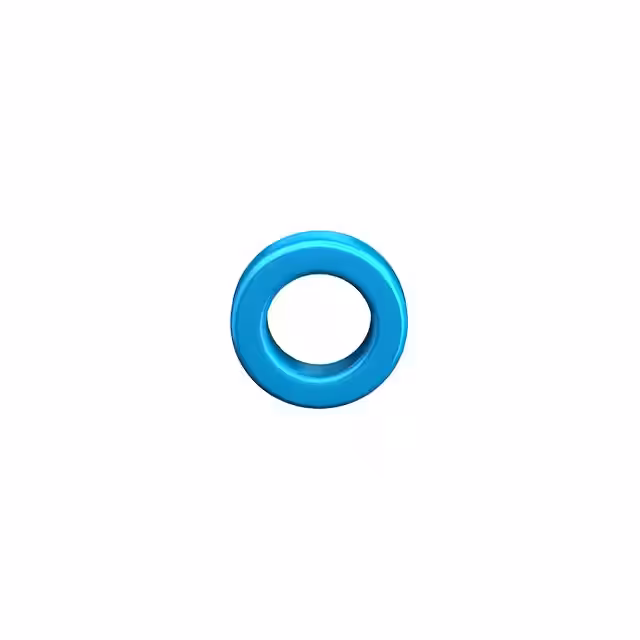

B64290L0697X087 FERRITE CORE TOROID 2.95UH N87 EPCOS - TDK Electronics	3,111	-	RFQ	データシート	Box	TX18/5.9/5.9	Active	Toroid	-	N87	0.768 (19.50mm)	2.95 µH	±25%	Ungapped	-	2200	0.94	31.03	33.14	-	1029	Epoxy	0.264 (6.70mm)
B66433G0000X187 ER 28/17/11 N87 2400 +30%-20% EPCOS - TDK Electronics	2,080	-	RFQ		Box	ER28/17/11	Active	-	ER 28 x 17 x 11	N87	-	-	-20%, +30%	-	-	-	0.88	75	85.4	77	6400	Uncoated	0.449 (11.40mm)
B65843A0000R065 FERRITE CORE EP 4UH T65 2PCS EPCOS - TDK Electronics	3,318	-	RFQ	データシート	Box	EP13	Active	EP	EP 13	T65	-	4 µH	-20%, +30%	Ungapped	3950	5200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)

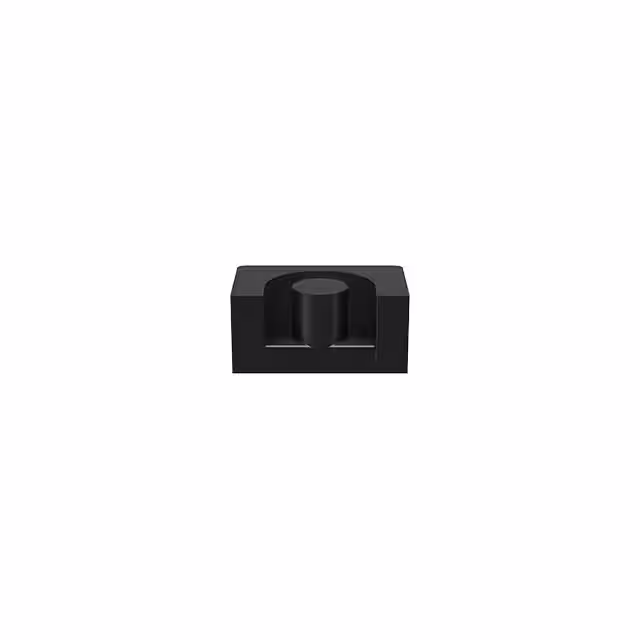

B65839A0100A045 FERRITE CORE EP 100NH N45 2PCS EPCOS - TDK Electronics	2,315	-	RFQ	データシート	Box	EP7	Active	EP	EP 7	N45	-	100 nH	±3%	Gapped	121	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0160J045 FERRITE CORE EP 160NH N45 2PCS EPCOS - TDK Electronics	2,938	-	RFQ	データシート	Box	EP7	Active	EP	EP 7	N45	-	160 nH	±5%	Gapped	194	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0200C045 FERRITE CORE EP 200NH N45 2PCS EPCOS - TDK Electronics	3,746	-	RFQ	データシート	Box	EP7	Active	EP	EP 7	N45	-	200 nH	±6%	Gapped	243	3800	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B66281W0160H187 FERRITE CORE EPCOS - TDK Electronics	3,916	-	RFQ		Box	ELP14/3.5/5	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B65857C0000R045 FERRITE CORE EPX 2.4UH N45 2PCS EPCOS - TDK Electronics	2,342	-	RFQ	データシート	Box	EPX9/9	Active	EPX	EPX 9 x 9	N45	-	2.4 µH	-20%, +30%	Ungapped	2070	3800	1.09	19	17.5	13.9	333	Uncoated	0.187 (4.75mm)
B65857A0000Y038 FERRITE CORE EPX 9UH T38 2PCS EPCOS - TDK Electronics	2,866	-	RFQ	データシート	Box	EPX7/9	Active	EPX	EPX 7 x 9	T38	-	9 µH	-30%, +40%	Ungapped	6540	2300	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)
B66319G0250X187 FERRITE CORE EPCOS - TDK Electronics	2,095	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G0800X187 FERRITE CORE EPCOS - TDK Electronics	2,839	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66319G1000X187 FERRITE CORE EPCOS - TDK Electronics	3,910	-	RFQ	データシート	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B66479P0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	3,035	-	RFQ	データシート	Box	I13/9/1	Active	I	I 13 x 1	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.043 (1.10mm)
B65841A0000R065 FERRITE CORE EP 2.9UH T65 2PCS EPCOS - TDK Electronics	2,149	-	RFQ	データシート	Box	EP10	Active	EP	EP 10	T65	-	2.9 µH	-20%, +30%	Ungapped	3920	5200	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
B65857C0160A045 FERRITE CORE EPX 160NH 2PCS EPCOS - TDK Electronics	2,214	-	RFQ	データシート	Box	EPX9/9	Active	EPX	EPX 9 x 9	-	-	160 nH	±4%	Gapped	-	-	1.09	19	17.5	13.9	333	Uncoated	0.187 (4.75mm)
