LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP22T1-C24-4070-W-1-00MOD BLOCK XHP70 4000K RECTANGLE New Energy |
2,313 | - |
RFQ |
データシート |
Bulk | XHP70 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MP22T1-C24-5070-W-1-00MOD BLOCK XHP70 5000K RECTANGLE New Energy |
2,476 | - |
RFQ |
データシート |
Bulk | XHP70 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
MP22T1-C24-4070-T2-1-00MOD BLOCK XHP70 4000K RECTANGLE New Energy |
3,444 | - |
RFQ |
データシート |
Bulk | XHP70 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MP22T1-C24-5070-T2-1-00MOD BLOCK XHP70 5000K RECTANGLE New Energy |
3,790 | - |
RFQ |
データシート |
Bulk | XHP70 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|

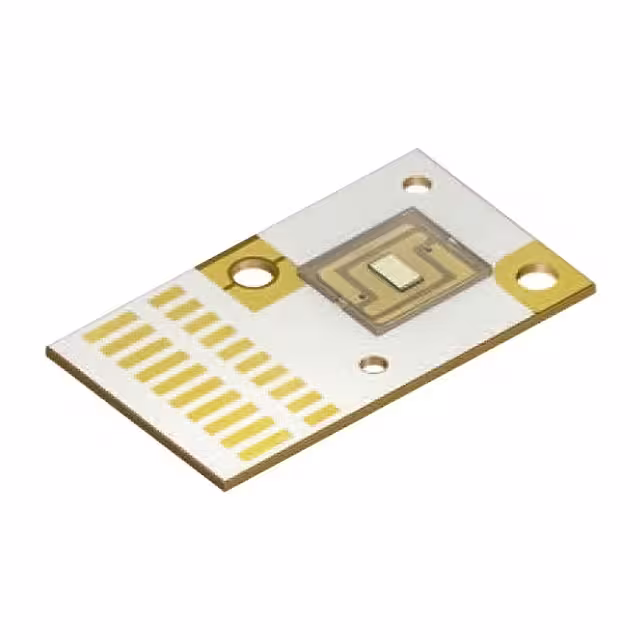

LE B P1W-EYFY-24-0-F00-T01LED MODULE OSTAR BLUE RECTANGLE ams-OSRAM USA Inc. |
2,620 | - |
RFQ |
データシート |
Tray | OSRAM OSTAR | Obsolete | LED Module | Blue | - | 459nm (452nm ~ 465nm) | Rectangle | - | 12A | 25°C | 3.55V | - | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - |
|

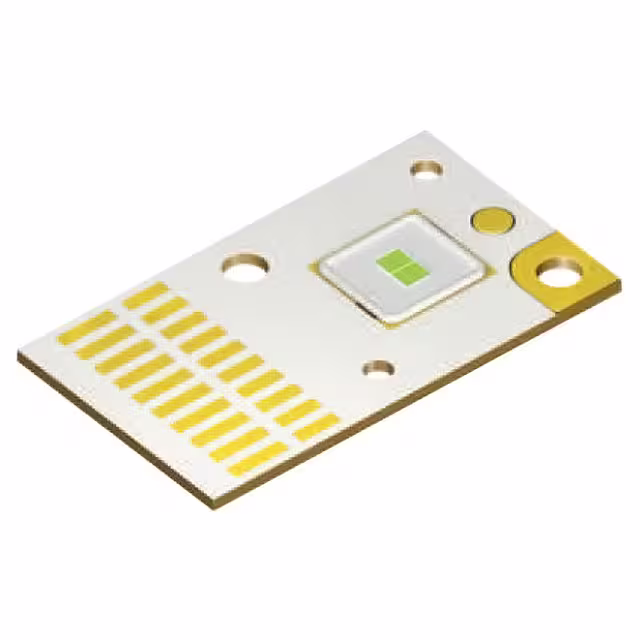

LE CG P1A-6T5U-ALED MODULE OSTAR GREEN RECTANGLE ams-OSRAM USA Inc. |
3,728 | - |
RFQ |
データシート |
Tray | OSRAM OSTAR | Obsolete | LED Module | Green | - | 520nm | Rectangle | 4075lm (Typ) | 12A | 25°C | 3.55V | 96 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 1.80mm | - |
|

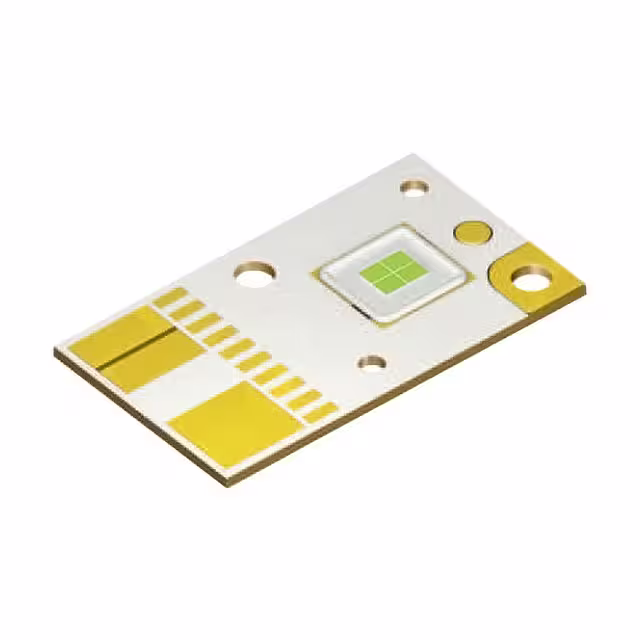

LE CG P2A-7U7V-ALED MODULE OSTAR GREEN RECTANGLE ams-OSRAM USA Inc. |
2,779 | - |
RFQ |
データシート |
Tray | OSRAM OSTAR | Obsolete | LED Module | Green | - | 520nm | Rectangle | 7800lm (Typ) | 24A | 25°C | 3.55V | 92 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 1.80mm | - |
|

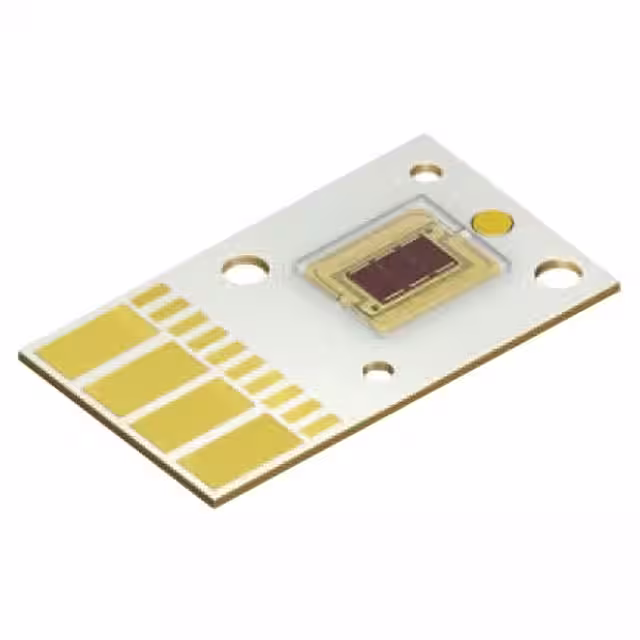

LE A P3W 01-TXUX-23LED MODULE OSTAR AMBER RECTANGLE ams-OSRAM USA Inc. |
2,712 | - |
RFQ |
データシート |
Tray | OSRAM OSTAR | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 4000lm (Typ) | 36A | 25°C | 3.35V | 33 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - |
|

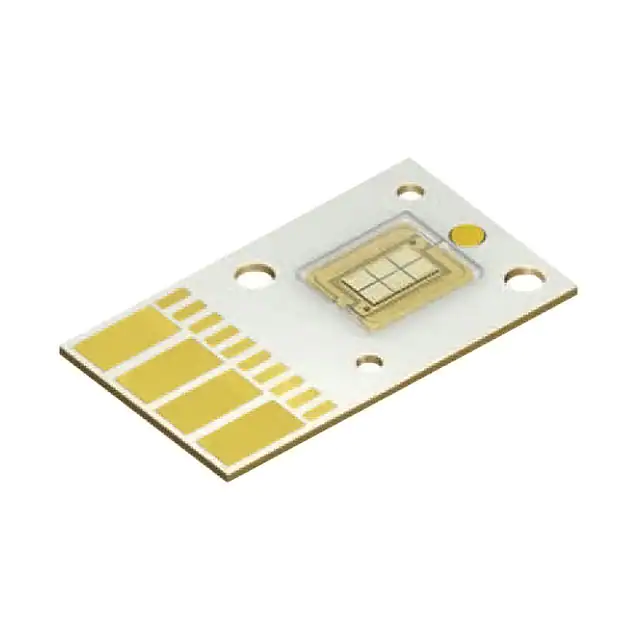

LE B P3W 01-GYHY-24-0-F00-T01LED MODULE OSTAR BLUE RECTANGLE ams-OSRAM USA Inc. |
3,224 | - |
RFQ |
Tray | OSRAM OSTAR | Obsolete | LED Module | Blue | - | 459nm (452nm ~ 465nm) | Rectangle | - | 36A | 25°C | 3.55V | - | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | |
|

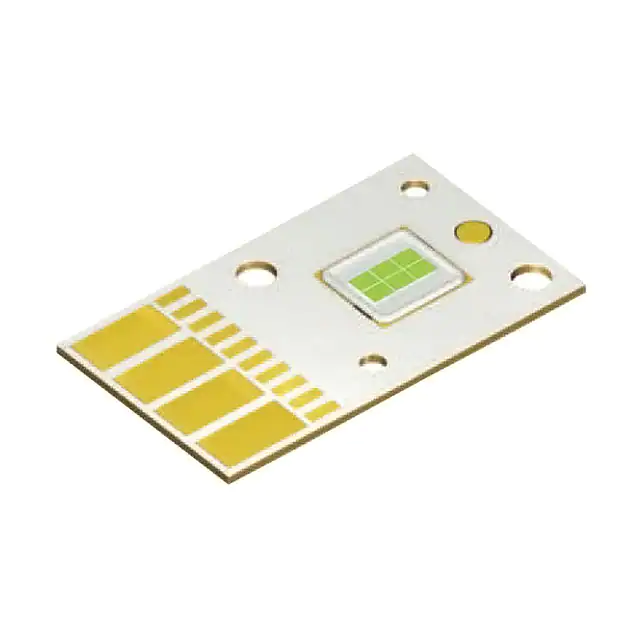

LE CG P3A 01-6V6W-1LED MODULE OSTAR GREEN RECTANGLE ams-OSRAM USA Inc. |
3,985 | - |
RFQ |
データシート |
Tray | OSRAM OSTAR | Obsolete | LED Module | Green | - | 520nm | Rectangle | 11000lm (Typ) | - | 25°C | 3.55V | 86 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 1.80mm | - |
|
L2C5-22801202E0600LED COB 2200K 80CRI WHITE Lumileds |
2,250 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 750lm (Typ) | 200mA | 85°C | 34.5V | 109 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-22901202E0600LED COB 2200K 90CRI WHITE Lumileds |
3,297 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 654lm (Typ) | 200mA | 85°C | 34.5V | 95 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-27801202E0600LED COB 2700K 80CRI WHITE Lumileds |
3,736 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 886lm (Typ) | 200mA | 85°C | 34.5V | 128 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-27901202E0600LED COB 2700K 90CRI WHITE Lumileds |
2,789 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 736lm (Typ) | 200mA | 85°C | 34.5V | 107 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-30801202E0600LED COB 3000K 80CRI WHITE Lumileds |
2,737 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 930lm (Typ) | 200mA | 85°C | 34.5V | 135 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-30901202E0600LED COB 3000K 90CRI WHITE Lumileds |
3,316 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 766lm (Typ) | 200mA | 85°C | 34.5V | 111 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.00mm Dia |
|
|
L2C5-30901202E09B0LED COB 3000K 90CRI WHITE Lumileds |
2,369 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | - | 200mA | 85°C | 34.5V | - | 400mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C5-30901203E09B0LED COB 3000K 90CRI WHITE Lumileds |
3,899 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | - | 300mA | 85°C | 34.5V | - | 600mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C5-30901203E09CLLED COB 3000K 90CRI WHITE Lumileds |
2,385 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | - | 300mA | 85°C | 34.5V | - | 600mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C5-30901204E13B0LED COB 3000K 90CRI WHITE Lumileds |
2,231 | - |
RFQ |
データシート |
Tube | LUXEON CoB Core Range Gen 3 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | - | 450mA | 85°C | 34.8V | - | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
