LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHM-9-50-70-36-XH20-F3-3LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
2,653 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3800lm (Typ) | 720mA | 85°C | 35.5V | 148 lm/W | 1.08A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-50-70-36-XH20-F3-5LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
2,135 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3800lm (Typ) | 720mA | 85°C | 35.5V | 148 lm/W | 1.08A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-50-80-36-XH20-F3-3LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
2,715 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3510lm (Typ) | 720mA | 85°C | 35.5V | 137 lm/W | 1.08A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-50-80-36-XH20-F3-5LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
3,173 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3510lm (Typ) | 720mA | 85°C | 35.5V | 137 lm/W | 1.08A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-50-90-36-XH20-F3-3LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
3,719 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2805lm (Typ) | 720mA | 85°C | 35.5V | 110 lm/W | 1.08A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-50-90-36-XH20-F3-5LED COB 5000K COOL WHT SQUARE Luminus Devices Inc. |
3,075 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2805lm (Typ) | 720mA | 85°C | 35.5V | 110 lm/W | 1.08A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-65-70-36-XH20-F3-3LED COB 6500K COOL WHT SQUARE Luminus Devices Inc. |
2,220 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3785lm (Typ) | 720mA | 85°C | 35.5V | 148 lm/W | 1.08A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-65-70-36-XH20-F3-5LED COB 6500K COOL WHT SQUARE Luminus Devices Inc. |
3,876 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3785lm (Typ) | 720mA | 85°C | 35.5V | 148 lm/W | 1.08A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-65-80-36-XH20-F3-3LED COB 6500K COOL WHT SQUARE Luminus Devices Inc. |
2,718 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3495lm (Typ) | 720mA | 85°C | 35.5V | 137 lm/W | 1.08A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|
|
CHM-9-65-80-36-XH20-F3-5LED COB 6500K COOL WHT SQUARE Luminus Devices Inc. |
3,961 | - |
RFQ |
データシート |
Tray | CHM-9 Gen2 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3495lm (Typ) | 720mA | 85°C | 35.5V | 137 lm/W | 1.08A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
|

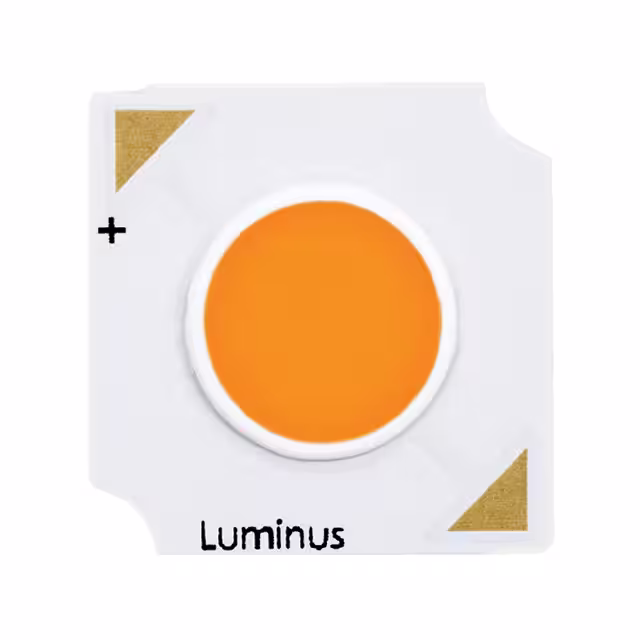

CHM-6-27-80-27-XH20-F3-3LED COB 2700K WARM WHT SQUARE Luminus Devices Inc. |
3,654 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1510lm (Typ) | 480mA | 85°C | 27.4V | 114 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
CHM-6-27-90-27-XH20-F3-3LED COB 2700K WARM WHT SQUARE Luminus Devices Inc. |
2,384 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1175lm (Typ) | 480mA | 85°C | 27.4V | 89 lm/W | 720mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
CHM-6-30-80-27-XH20-F3-3LED COB 3000K WARM WHT SQUARE Luminus Devices Inc. |
2,960 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1590lm (Typ) | 480mA | 85°C | 27.4V | 120 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
CHM-6-30-90-27-XH20-F3-3LED COB 3000K WARM WHT SQUARE Luminus Devices Inc. |
3,648 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1285lm (Typ) | 480mA | 85°C | 27.4V | 97 lm/W | 720mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
CHM-6-35-80-27-XH20-F3-3LED COB 3500K WARM WHT SQUARE Luminus Devices Inc. |
3,360 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1645lm (Typ) | 480mA | 85°C | 27.4V | 125 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
CHM-6-40-80-27-XH20-F3-3LED COB 4000K NEUT WHT SQUARE Luminus Devices Inc. |
3,858 | - |
RFQ |
データシート |
Tray | CHM-6 Gen2 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1360lm (Typ) | 480mA | 85°C | 27.4V | 103 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia |
|
|
LZ7-N4M100LED EMITTER MULTI COLOR SMD OSRAM SYLVANIA Inc. |
3,207 | - |
RFQ |
データシート |
Tape & Reel (TR) | LuxiGen™ | Obsolete | LED Module | Amber, Blue, Cyan, Green, Red, Violet, White - Cool | 6500K | 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White | Rectangle | 70lm Amber, 33lm Blue, 101lm Cyan, 140lm Green, 80lm Red, 900mW Violet, 210lm White | 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White | 25°C | 2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White | 39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White | 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White | 75 (Typ) | 120° | - | 38.30mm L x 31.20mm W | 2.41mm | - |
|
|
GW KAFGB3.CM-PTPU-27B3-T02SOLERIQ S 9 2700K ams-OSRAM USA Inc. |
2,461 | - |
RFQ |
Tray | SOLERIQ® S 9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 660lm (610lm ~ 710lm) | 200mA | 85°C | 34.7V | 95 lm/W | 460mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | |
|
|
GW KAFGB3.CM-PTPU-27S3-T02SOLERIQ S 9 2700K ams-OSRAM USA Inc. |
2,685 | - |
RFQ |
Tray | SOLERIQ® S 9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 660lm (610lm ~ 710lm) | 200mA | 85°C | 34.7V | 95 lm/W | 460mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | |
|
|
GW KAFGB3.CM-PUQP-30B3-T02SOLERIQ S 9 3000K ams-OSRAM USA Inc. |
2,043 | - |
RFQ |
データシート |
Tray | SOLERIQ® S 9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 711lm (658lm ~ 763lm) | 200mA | 85°C | 34.7V | 102 lm/W | 460mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
