LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-35E1000-B-03LED COB VERO10 WARM WHT STARBRD Bridgelux |
3,673 | - |
RFQ |
データシート |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1160lm (Typ) | 350mA | 25°C | 26.7V | 124 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40E1000-B-03LED COB VERO10 NEU WHT STARBRD Bridgelux |
3,269 | - |
RFQ |
データシート |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1180lm (Typ) | 350mA | 25°C | 26.7V | 126 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-50C1000-B-04LED COB VERO10 COOL WHT STARBRD Bridgelux |
3,328 | - |
RFQ |
データシート |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1305lm (Typ) | 350mA | 25°C | 26.7V | 140 lm/W | 700mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-27E2000-C-03LED COB VERO13 WARM WHITE ROUND Bridgelux |
2,832 | - |
RFQ |
データシート |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1880lm (Typ) | 500mA | 25°C | 32.5V | 116 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

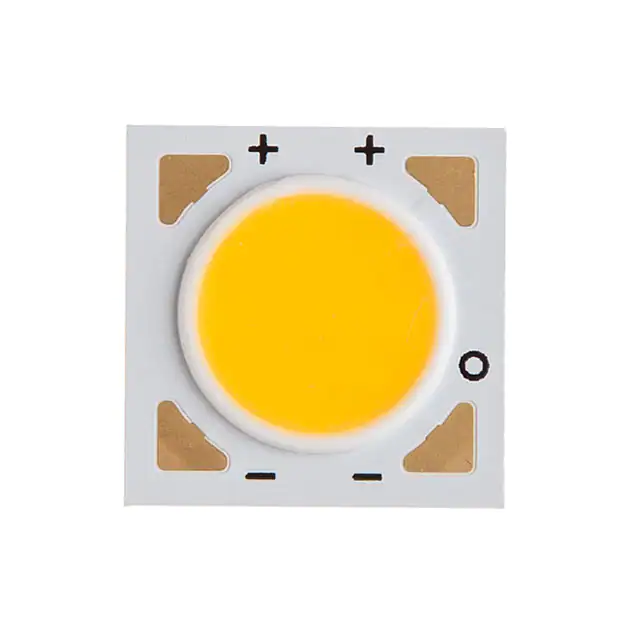

BXRE-27E0800-B-03LED ARRAY 2700K 800LM WARM WHT Bridgelux |
3,545 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (Typ) | 350mA | 25°C | 17.8V | 113 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-27G0800-A-03LED ARRAY 2700K 800LM WARM WHT Bridgelux |
3,585 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 565lm (Typ) | 175mA | 25°C | 35.6V | 91 lm/W | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30E0800-B-03LED ARRAY 3000K 800LM WARM WHT Bridgelux |
3,289 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 350mA | 25°C | 17.8V | 117 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30G0800-B-03LED ARRAY 3000K 800LM WARM WHT Bridgelux |
3,691 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 595lm (Typ) | 350mA | 25°C | 17.8V | 96 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-40E0800-B-03LED ARRAY 4000K 800LM WARM WHT Bridgelux |
2,586 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 770lm (Typ) | 350mA | 25°C | 17.8V | 124 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-50C0800-B-04LED ARRAY 5000K 800LM COOL WHT Bridgelux |
3,859 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 850lm (Typ) | 350mA | 25°C | 17.8V | 136 lm/W | 700mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRE-27E0500-A-03LED ARRAY 500LM WARM WHITE Bridgelux |
3,534 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 175mA | - | - | - | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-27E0800-A-03LED ARRAY 800LM WARM WHITE Bridgelux |
2,096 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (Typ) | 175mA | 25°C | 35.6V | 113 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-27G0500-A-03LED ARRAY 500LM WARM WHITE Bridgelux |
3,878 | - |
RFQ |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 175mA | - | 35.6V | - | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | |
|
|
BXRE-27G0800-B-03LED ARRAY 800LM WARM WHITE Bridgelux |
3,101 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 565lm (Typ) | 350mA | 25°C | 17.8V | 91 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30E0500-A-03LED ARRAY 500LM WARM WHITE Bridgelux |
3,870 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 175mA | - | 35.6V | - | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30E0800-A-03LED ARRAY 800LM WARM WHITE Bridgelux |
2,048 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 175mA | 25°C | 35.6V | 117 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30G0500-A-03LED ARRAY 500LM WARM WHITE Bridgelux |
2,630 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 175mA | - | 35.6V | - | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-30G0800-A-03LED ARRAY 800LM WARM WHITE Bridgelux |
3,006 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 595lm (Typ) | 175mA | 25°C | 35.6V | 96 lm/W | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-40E0500-A-03LED ARRAY 500LM NEU WHT Bridgelux |
3,141 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 175mA | - | 35.6V | - | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-40E0800-A-03LED ARRAY 800LM NEUTRAL WHITE Bridgelux |
2,685 | - |
RFQ |
データシート |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 770lm (Typ) | 175mA | 25°C | 35.6V | 124 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
