LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27E1000-C-73-SELED COB VERO SE 2700K ROUND Bridgelux |
2,863 | - |
RFQ |
データシート |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1624lm (Typ) | 360mA | 85°C | 33.8V | 133 lm/W | 720mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRE-30E1000-B-83V10B WARM WHITE LED ARRAY Bridgelux |
3,888 | - |
RFQ |
データシート |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1200lm (Typ) | 200mA | 25°C | 34.2V | 175 lm/W | - | 80 | - | - | - | - | 10.00mm Dia |
|
BXRC-35E2000-B-73-SELED COB VERO SE 3500K ROUND Bridgelux |
2,792 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2198lm (Typ) | 450mA | 85°C | 34.1V | 143 lm/W | 900mA | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXRC-35A2001-D-73LED COB WARM WHT 3500K ROUND Bridgelux |
3,983 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 13 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1845lm (Typ) | 500mA | 85°C | 30.9V | 119 lm/W | 1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

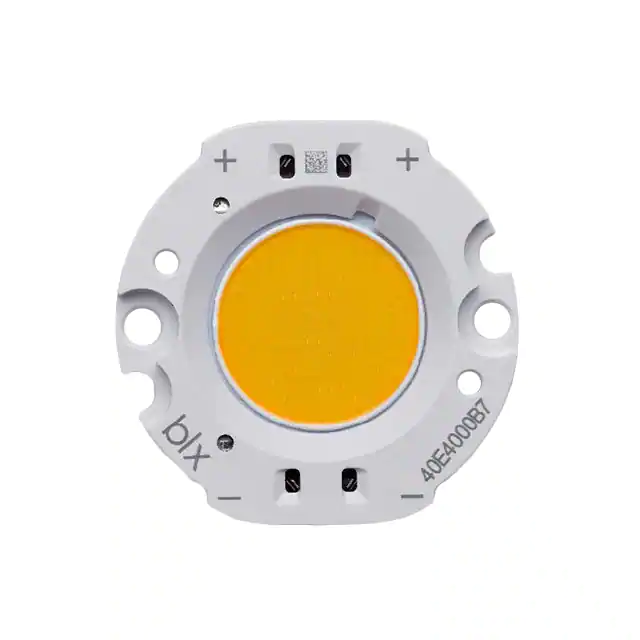

BXRC-30G4000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
2,310 | - |
RFQ |
データシート |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3567lm (Typ) | 900mA | 85°C | 34.1V | 116 lm/W | 1.8A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
BXRC-27E4000-B-73-SELED COB VERO 18 SE 2700K ROUND Bridgelux |
3,810 | - |
RFQ |
データシート |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4125lm (Typ) | 900mA | 85°C | 34.1V | 134 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-30G400C-D-73-SELED COB VERO 18 SE 3000K ROUND Bridgelux |
2,120 | - |
RFQ |
データシート |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3245lm (Typ) | 1.05A | 85°C | 28.3V | 109 lm/W | 2.1A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
BXRC-35A4001-D-73-SELED COB VERO SE 3500K ROUND Bridgelux |
3,609 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® SE 18 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3478lm (Typ) | 1.05A | 85°C | 28.3V | 117 lm/W | 2.1A | 93 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-50E4001-B-74LED COB VERO 18 5000K ROUND Bridgelux |
2,391 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4666lm (Typ) | 900mA | 85°C | 34.1V | 152 lm/W | 1.8A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-30G400C-B-73LED COB GEN7 VERO18 3000K ROUND Bridgelux |
2,768 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3402lm (Typ) | 900mA | 85°C | 34.1V | 100 lm/W | 1.8A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-30G400C-D-73LED COB GEN7 VERO18 3000K ROUND Bridgelux |
3,026 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3289lm (Typ) | 1.05A | 85°C | 28.3V | 100 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-27E6500-D-73LED COB GEN7 V22 2700K SQUARE Bridgelux |
2,188 | - |
RFQ |
データシート |
Tray | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6635lm (Typ) | 1.4A | 85°C | 33.4V | 142 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRC-27G4000-C-73LED COB VERO 18 2700K ROUND Bridgelux |
3,443 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4529lm (Typ) | 1.17A | 85°C | 34.1V | 113 lm/W | 2.34A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRE-30G6500-B-73LED COB V22 3000K SQUARE Bridgelux |
2,428 | - |
RFQ |
データシート |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7058lm (Typ) | 1.17A | 85°C | 50.7V | 119 lm/W | 2.34A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRC-30G4000-D-83VERO 18D WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
データシート |
Tube | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3497lm (Typ) | 850mA | 25°C | 28.2V | 146 lm/W | 2.5A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.50mm Dia |
|
|
BXRE-30E6500-D-83V22D WARM WHITE LED ARRAY Bridgelux |
3,103 | - |
RFQ |
データシート |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6407lm (Typ) | 1.05A | 25°C | 33.5V | 182 lm/W | - | 80 | - | - | - | - | 22.00mm Dia |
|
|
BXRE-27G6500-D-83V22D WARM WHITE LED ARRAY Bridgelux |
2,734 | - |
RFQ |
データシート |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 142 lm/W | - | 90 | - | - | - | - | 22.00mm Dia |
|
BXRC-30G10K0-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
3,576 | - |
RFQ |
データシート |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12449lm (Typ) | 1.8A | 25°C | 52V | 133 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-30G10K0-B-73LED COB VERO 29 3000K ROUND Bridgelux |
2,947 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12437lm (Typ) | 1.8A | 25°C | 52V | 133 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-40G10K0-C-73-SELED COB VERO SE 4000K ROUND Bridgelux |
3,628 | - |
RFQ |
データシート |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 11212lm (Typ) | 1.71A | 25°C | 69.4V | 142 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
