LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRH-27E0600-A-73V4 HD WARM WHITE LED ARRAY Bridgelux |
521 | - |
RFQ |
データシート |
Tube | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 640lm (Typ) | 175mA | 85°C | 35.4V | 103 lm/W | 240mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-30S0601-A-73LED COB WHITE Bridgelux |
583 | - |
RFQ |
データシート |

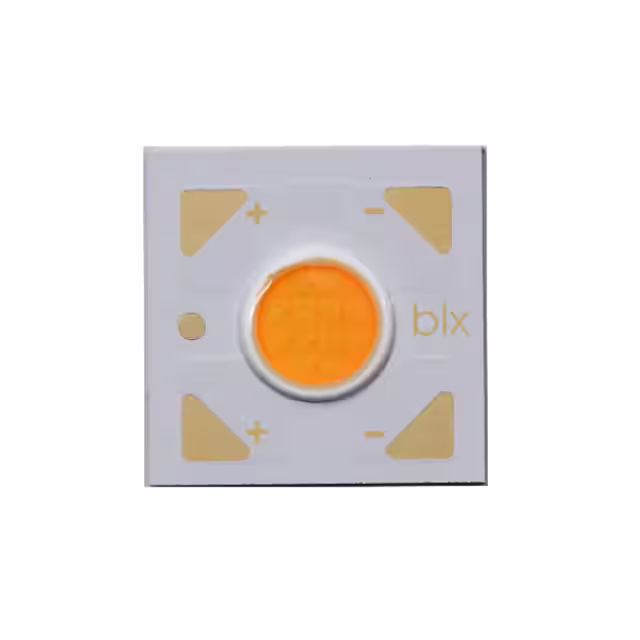

Tube | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 586lm (Typ) | 175mA | 25°C | 36.4V | 92 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
|
BXRH-27S0601-A-73LED COB WHITE Bridgelux |
573 | - |
RFQ |
データシート |
Tray | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 548lm (Typ) | 175mA | 25°C | 36.4V | 86 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
BXRH-65S0601-A-74LED COB WHITE Bridgelux |
251 | - |
RFQ |
データシート |
Tray | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 682lm (Typ) | 175mA | 25°C | 36.4V | 107 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
|
BXRH-35S0601-A-73LED COB WHITE Bridgelux |
138 | - |
RFQ |
データシート |
Tray | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 618lm (Typ) | 175mA | 25°C | 36.4V | 97 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
BXRH-57S0601-A-74LED COB WHITE Bridgelux |
116 | - |
RFQ |
データシート |
Tray | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 675lm (Typ) | 175mA | 25°C | 36.4V | 106 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
|
BXRH-40S0601-A-73LED COB WHITE Bridgelux |
3,218 | - |
RFQ |
データシート |
Tray | V4 HD Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 650lm (Typ) | 175mA | 25°C | 36.4V | 102 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia |
|
BXRC-30E1000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
100 | - |
RFQ |
データシート |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1268lm (Typ) | 270mA | 85°C | 33.8V | 139 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27G1000-C-73-SELED COB VERO SE 2700K ROUND Bridgelux |
3,373 | - |
RFQ |
データシート |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1353lm (Typ) | 360mA | 85°C | 33.8V | 111 lm/W | 720mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRC-50E1000-B-24LED ARRAY 1000LM COOL WHITE COB Bridgelux |
3,186 | - |
RFQ |
データシート |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1274lm (Typ) | 350mA | 25°C | 26.5V | 137 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRE-35S0801-E-73LED COB WHITE Bridgelux |
3,576 | - |
RFQ |
データシート |
Tube | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 728lm (Typ) | 175mA | 25°C | 34.4V | 121 lm/W | 350mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
BXRC-40E2000-B-73LED COB VERO 13 4000K ROUND Bridgelux |
3,019 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2265lm (Typ) | 450mA | 85°C | 34.1V | 148 lm/W | 900mA | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRC-27H2000-B-73LED COB WARM WHT 2700K ROUND Bridgelux |
2,029 | - |
RFQ |
データシート |

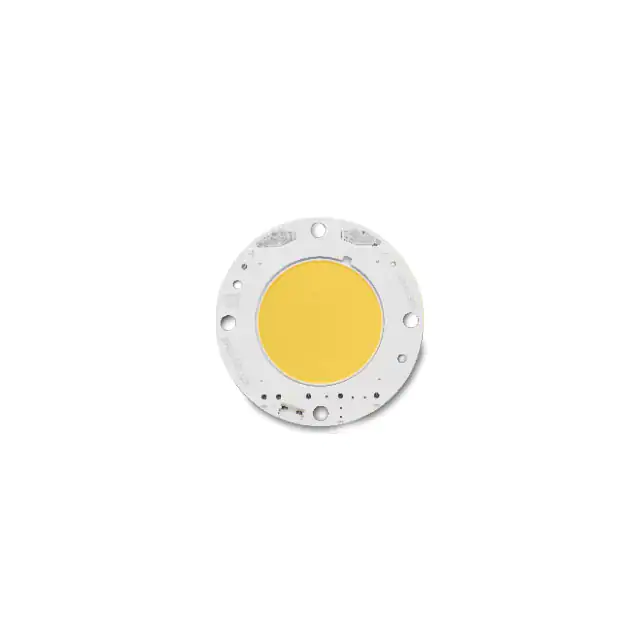

Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1643lm (Typ) | 450mA | 85°C | 34.1V | 107 lm/W | 900mA | 97 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

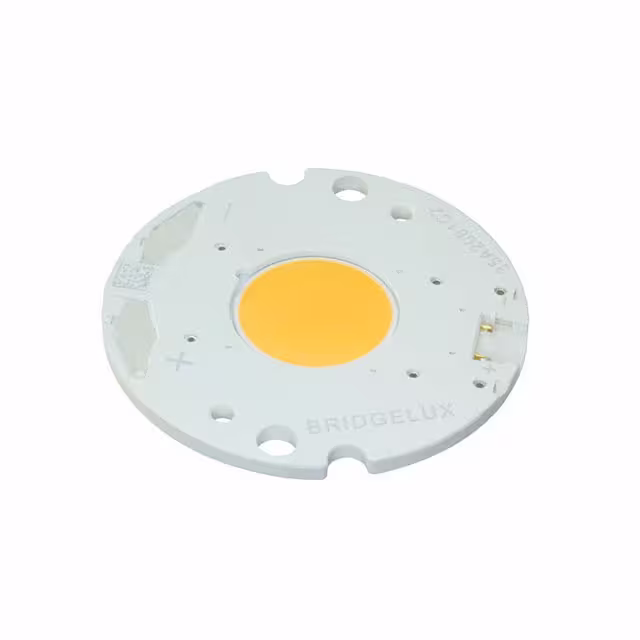

BXRC-35A2001-C-23LED ARRAY 3500K WHT 2000LM COB Bridgelux |
100 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 13 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1461lm (Typ) | 500mA | 85°C | 31.5V | 93 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRC-30H2000-C-23LED ARRAY 2000LM WARM WHITE COB Bridgelux |
3,983 | - |
RFQ |
データシート |
Tray | Décor Series™ Ultra Vero® 13 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1189lm (Typ) | 500mA | 85°C | 31.5V | 76 lm/W | 1.5A | 97 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRE-35E4000-B-73LED COB V18 3500K SQUARE Bridgelux |
2,110 | - |
RFQ |
データシート |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4484lm (Typ) | 900mA | 85°C | 34V | 147 lm/W | 1.8A | 80 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
BXRV-TR-1830G-20A0-A-23TW13 GEN 2 TUNABLE WHITE LED ARR Bridgelux |
3,938 | - |
RFQ |
データシート |
Bulk | Vesta™ | Active | Chip On Board (COB) | White, Warm | 1800K, 3000K | - | Square | - | 500mA | 25°C | - | - | 700mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
BXRC-27H4000-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
3,235 | - |
RFQ |
データシート |
Tray | Décor Series™ Ultra Vero® 18 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2093lm (Typ) | 1.05A | 85°C | 28.8V | 69 lm/W | 3A | 97 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXEB-TL-L1120Z-2750E4000-B-C3VESTA TL GEN 3 (1 SMD ROW) LED M Bridgelux |
3,384 | - |
RFQ |
データシート |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4876lm Warm White, 5447lm Cool White | 750mA | 25°C | 39.4V | 165 lm/W Warm White, 184 lm/W Cool White | 1.5A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 5.60mm | - |
|
BXRC-27G10K0-L-23LED ARRAY 10000LM WARM WHITE COB Bridgelux |
3,693 | - |
RFQ |
データシート |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 8666lm (Typ) | 2.1A | 25°C | 38V | 109 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
