LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27H1000-B-73LED COB VERO 10 2700K STARBOARD Bridgelux |
3,080 | - |
RFQ |
データシート |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1058lm (Typ) | 270mA | 25°C | 35V | 112 lm/W | 540mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-27H1000-D-73LED COB VERO 10 2700K STARBOARD Bridgelux |
2,334 | - |
RFQ |
データシート |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1028lm (Typ) | 350mA | 25°C | 26V | 113 lm/W | 700mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30A1001-B-73LED COB VERO 10 3000K STARBOARD Bridgelux |
2,432 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 10 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 977lm (Typ) | 270mA | 85°C | 34V | 106 lm/W | 540mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30A1001-D-73LED COB VERO 10 3000K STARBOARD Bridgelux |
3,156 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 10 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 950lm (Typ) | 350mA | 85°C | 25.3V | 107 lm/W | 700mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30H1000-B-73LED COB VERO 10 3000K STARBOARD Bridgelux |
2,483 | - |
RFQ |
データシート |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1133lm (Typ) | 270mA | 25°C | 35V | 120 lm/W | 540mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30H1000-D-73LED COB VERO 10 3000K STARBOARD Bridgelux |
2,949 | - |
RFQ |
データシート |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1101lm (Typ) | 350mA | 25°C | 26V | 121 lm/W | 700mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35A1001-B-73LED COB VERO 10 3500K STARBOARD Bridgelux |
3,296 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 10 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1053lm (Typ) | 270mA | 85°C | 34V | 115 lm/W | 540mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-35E1000-B-72LED COB VERO 10 3500K STARBOARD Bridgelux |
3,633 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1500lm (Typ) | 270mA | 25°C | 34.8V | 160 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35E1000-D-72LED COB VERO 10 3500K STARBOARD Bridgelux |
2,278 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1453lm (Typ) | 350mA | 25°C | 26V | 160 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35G1000-B-72LED COB VERO 10 3500K STARBOARD Bridgelux |
2,491 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1248lm (Typ) | 270mA | 25°C | 34.8V | 133 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35G1000-D-72LED COB VERO 10 3500K STARBOARD Bridgelux |
3,620 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1209lm (Typ) | 350mA | 25°C | 26V | 133 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40A1001-B-73LED COB VERO 10 4000K STARBOARD Bridgelux |
2,625 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 10 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1121lm (Typ) | 270mA | 85°C | 34V | 122 lm/W | 540mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40A1001-D-73LED COB VERO 10 4000K STARBOARD Bridgelux |
2,268 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 10 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1089lm (Typ) | 350mA | 85°C | 25.3V | 123 lm/W | 700mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40E1000-B-72LED COB VERO 10 4000K STARBOARD Bridgelux |
3,462 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1510lm (Typ) | 270mA | 25°C | 34.8V | 161 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40E1000-D-72LED COB VERO 10 4000K STARBOARD Bridgelux |
2,509 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1462lm (Typ) | 350mA | 25°C | 26V | 161 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40G1000-B-72LED COB VERO 10 4000K STARBOARD Bridgelux |
2,157 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1297lm (Typ) | 270mA | 25°C | 34.8V | 138 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40G1000-D-72LED COB VERO 10 4000K STARBOARD Bridgelux |
3,257 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1256lm (Typ) | 350mA | 25°C | 26V | 138 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|

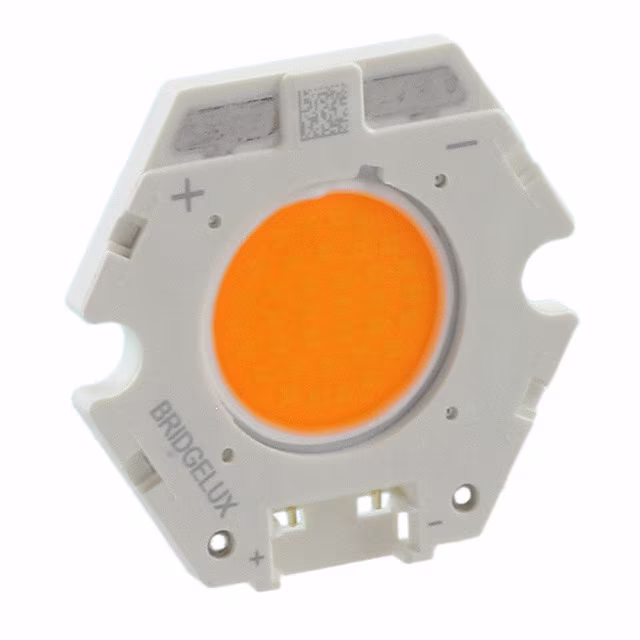

BXRC-20B1001-B-73LED COB GEN7 2000K STARBOARD Bridgelux |
3,815 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Starboard | 1365lm (Typ) | 270mA | 25°C | 34.8V | 145 lm/W | 540mA | 65 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-20B1001-D-73LED COB GEN7 2000K STARBOARD Bridgelux |
3,305 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Starboard | 1322lm (Typ) | 350mA | 25°C | 26V | 145 lm/W | 700mA | 65 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-30G100C-B-73LED COB GEN7 3000K STARBOARD Bridgelux |
3,080 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1123lm (Typ) | 270mA | 25°C | 34.8V | 119 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
