LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40G1000-C-72LED COB VERO 10 4000K STARBOARD Bridgelux |
3,713 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1729lm (Typ) | 360mA | 25°C | 34.8V | 138 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRE-35S0801-D-73LED COB WHITE Bridgelux |
3,204 | - |
RFQ |
データシート |
Tray | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 728lm (Typ) | 350mA | 25°C | 17.2V | 121 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
BXRE-27H2000-B-72V13B WARM WHITE LED ARRAY Bridgelux |
3,876 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1506lm (Typ) | 450mA | 85°C | 33.9V | 99 lm/W | 900mA | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30H2000-B-72V13B WARM WHITE LED ARRAY Bridgelux |
2,798 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1618lm (Typ) | 450mA | 85°C | 33.9V | 106 lm/W | 900mA | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRC-27E1000-C-73LED COB VERO 10 2700K STARBOARD Bridgelux |
2,017 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1858lm (Typ) | 360mA | 25°C | 34.8V | 148 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35E1000-C-73LED COB VERO 10 3500K STARBOARD Bridgelux |
2,706 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 2000lm (Typ) | 360mA | 25°C | 34.8V | 160 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-35G1000-C-73LED COB VERO 10 3500K STARBOARD Bridgelux |
3,482 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1665lm (Typ) | 360mA | 25°C | 34.8V | 133 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-50E1001-C-74LED COB VERO 10 5000K STARBOARD Bridgelux |
3,293 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 2078lm (Typ) | 360mA | 25°C | 34.8V | 166 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-50G1001-C-74LED COB VERO 10 5000K STARBOARD Bridgelux |
2,016 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1755lm (Typ) | 360mA | 25°C | 34.8V | 140 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-57C1001-C-74LED COB VERO 10 5700K STARBOARD Bridgelux |
2,202 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Starboard | 2129lm (Typ) | 360mA | 25°C | 34.8V | 170 lm/W | 720mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-57E1001-C-74LED COB VERO 10 5700K STARBOARD Bridgelux |
2,961 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Starboard | 2055lm (Typ) | 360mA | 25°C | 34.8V | 164 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-65C1001-C-74LED COB VERO 10 6500K STARBOARD Bridgelux |
2,201 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Starboard | 2168lm (Typ) | 360mA | 25°C | 34.8V | 173 lm/W | 720mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-65E1001-C-74LED COB VERO 10 6500K STARBOARD Bridgelux |
2,121 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Starboard | 2092lm (Typ) | 360mA | 25°C | 34.8V | 167 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-50C1001-C-73VERO 10C COOL WHITE LED ARRAY Bridgelux |
2,004 | - |
RFQ |
データシート |
Tube | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 2207lm (Typ) | 360mA | 25°C | 34.8V | 176 lm/W | 720mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|

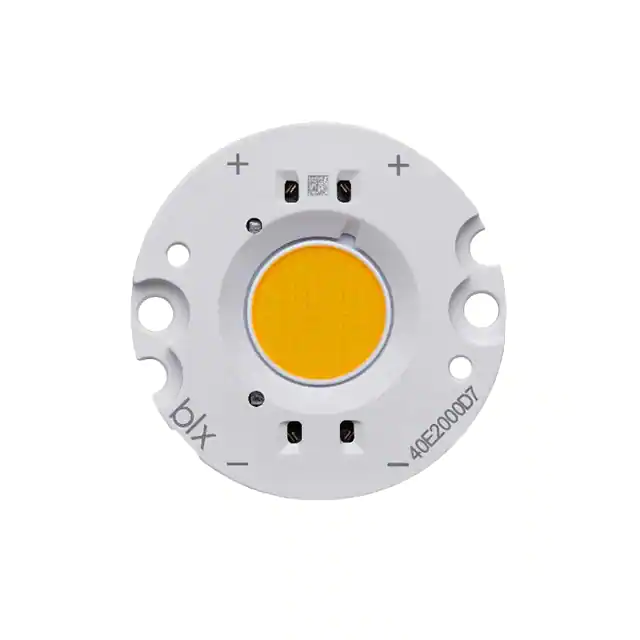

BXRC-27G2000-B-73-SELED COB VERO SE 2700K ROUND Bridgelux |
3,656 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1707lm (Typ) | 450mA | 85°C | 34.1V | 111 lm/W | 900mA | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-50C2001-B-74-SELED COB VERO SE 5000K ROUND Bridgelux |
2,268 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2433lm (Typ) | 450mA | 85°C | 34.1V | 159 lm/W | 900mA | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXRC-35G2000-B-73-SEVERO SE 13B WARM WHITE LED ARRAY Bridgelux |
2,372 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1903lm (Typ) | 450mA | 85°C | 33.9V | 125 lm/W | 900mA | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-50E2001-B-74-SEVERO SE 13B COOL WHITE LED ARRAY Bridgelux |
3,057 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2368lm (Typ) | 450mA | 85°C | 33.9V | 155 lm/W | 900mA | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-50G2001-B-74-SEVERO SE 13B COOL WHITE LED ARRAY Bridgelux |
2,169 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2015lm (Typ) | 450mA | 85°C | 33.9V | 132 lm/W | 900mA | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-57C2001-B-74-SEVERO SE 13B COOL WHITE LED ARRAY Bridgelux |
3,675 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 2438lm (Typ) | 450mA | 85°C | 33.9V | 160 lm/W | 900mA | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
