LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

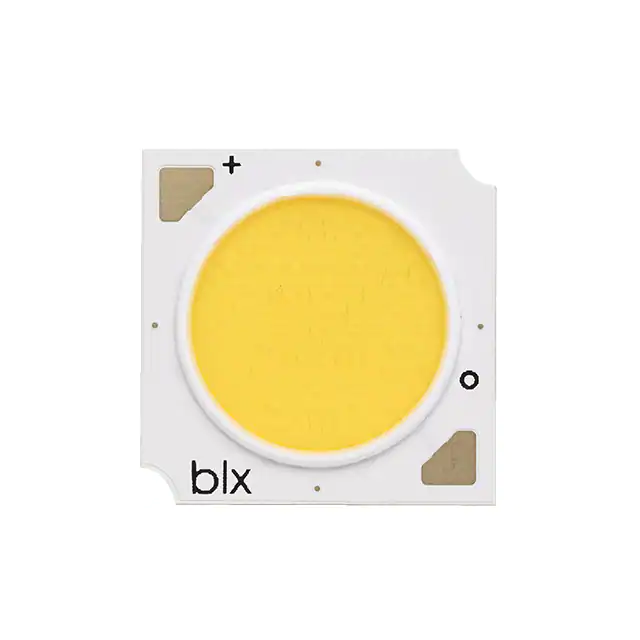

BXRE-50G2001-C-74LED COB V13 5000K SQUARE Bridgelux |
2,726 | - |
RFQ |
データシート |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2780lm (Typ) | 630mA | 85°C | 33.9V | 130 lm/W | 1.26A | 90 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-57C2001-C-74LED COB V13 5700K SQUARE Bridgelux |
3,827 | - |
RFQ |
データシート |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 3353lm (Typ) | 630mA | 85°C | 33.9V | 157 lm/W | 1.26A | 70 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-57E2001-C-74LED COB V13 5700K SQUARE Bridgelux |
2,955 | - |
RFQ |
データシート |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 3322lm (Typ) | 630mA | 85°C | 33.9V | 156 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-65C2001-C-74LED COB V13 6500K SQUARE Bridgelux |
3,297 | - |
RFQ |
データシート |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 3414lm (Typ) | 630mA | 85°C | 33.9V | 160 lm/W | 1.26A | 70 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-65E2001-C-74LED COB V13 6500K SQUARE Bridgelux |
3,618 | - |
RFQ |
データシート |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 3383lm (Typ) | 630mA | 85°C | 33.9V | 158 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRV-TR-2750G-1000-A-25WHITE LED ARRAY 2700K 5 SDCM CSP Bridgelux |
2,201 | - |
RFQ |
データシート |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1387lm (Typ) | 700mA | 25°C | 19V | 105 lm/W | 1.05A | 90 | 130° | - | 15.85mm L x 15.85mm W | 1.42mm | 9.70mm Dia |
|
BXRC-65C2001-D-74LED COB VERO 13 6500K ROUND Bridgelux |
2,278 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 2483lm (Typ) | 500mA | 85°C | 30.9V | 161 lm/W | 1A | 70 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-65E2001-D-74LED COB VERO 13 6500K ROUND Bridgelux |
3,126 | - |
RFQ |
データシート |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 2461lm (Typ) | 500mA | 85°C | 30.9V | 159 lm/W | 1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRC-27H2000-D-72-SEVERO SE 13D WARM WHITE LED ARRAY Bridgelux |
3,549 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1560lm (Typ) | 500mA | 85°C | 30.9V | 101 lm/W | 1A | 97 (Typ) | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-30H2000-D-72-SEVERO SE 13D WARM WHITE LED ARRAY Bridgelux |
3,840 | - |
RFQ |
データシート |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1674lm (Typ) | 500mA | 85°C | 30.9V | 108 lm/W | 1A | 97 (Typ) | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRE-20B2001-C-73LED COB GEN7 V13 2000K SQUARE Bridgelux |
2,006 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Square | 2853lm (Typ) | 630mA | 85°C | 33.9V | 134 lm/W | 1.26A | 65 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRE-17E2000-C-74V13C WARM WHITE LED ARRAY Bridgelux |
3,440 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Square | 1879lm (Typ) | 630mA | 25°C | 34.8V | 86 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-25E2000-C-74V13C WARM WHITE LED ARRAY Bridgelux |
3,183 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 2500K 4-Step MacAdam Ellipse | - | Square | 3037lm (Typ) | 630mA | 25°C | 34.8V | 139 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-27E2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
3,597 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2926lm (Typ) | 630mA | 85°C | 33.9V | 137 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-27G2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
2,435 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2438lm (Typ) | 630mA | 85°C | 33.9V | 114 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30A2001-C-73V13C WARM WHITE LED ARRAY Bridgelux |
3,382 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2286lm (Typ) | 630mA | 85°C | 33.9V | 107 lm/W | 1.26A | 93 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30E2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
3,606 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3048lm (Typ) | 630mA | 85°C | 33.9V | 143 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30G2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
3,884 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2530lm (Typ) | 630mA | 85°C | 33.9V | 118 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30G200C-C-73V13C WARM WHITE LED ARRAY Bridgelux |
2,601 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2365lm (Typ) | 630mA | 85°C | 33.9V | 111 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-35A2001-C-73V13C WARM WHITE LED ARRAY Bridgelux |
3,355 | - |
RFQ |
データシート |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2503lm (Typ) | 630mA | 85°C | 33.9V | 117 lm/W | 1.26A | 93 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
