LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-W0261-00Q00LED ARRAY WARM WHITE 260LM Bridgelux |
3,777 | - |
RFQ |
データシート |
Tube | LS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 700mA | - | - | - | 1.2A | - | 120° | - | - | - | - |
|
|
BXRA-C0361-00E00LED ARRAY COOL WHITE 360LM Bridgelux |
2,313 | - |
RFQ |
データシート |
Tube | LS | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | - | 350mA | - | 13.2V | - | 600mA | 65 (Typ) | 120° | - | 13.80mm L x 18.00mm W | 3.00mm | - |
|

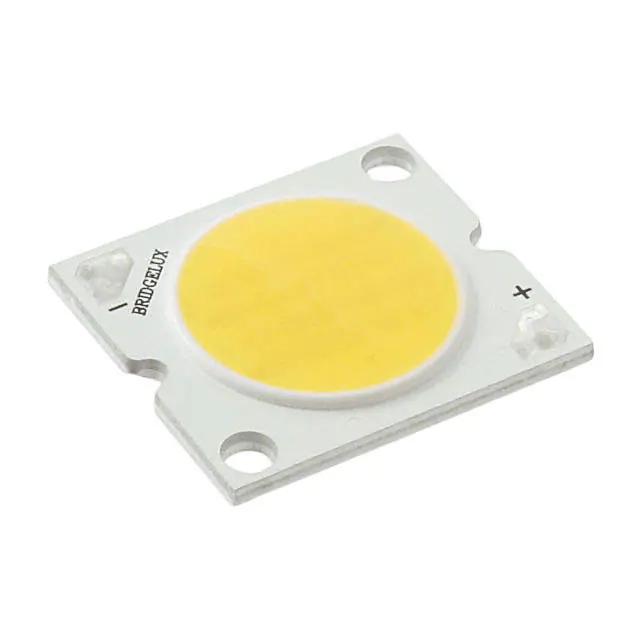

BXRA-W1203-00Q00LED ARRAY WARM WHITE 1370LM Bridgelux |
2,234 | - |
RFQ |
データシート |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 1370lm (Typ) | 1.05A | 25°C | 18.3V | 71 lm/W | 2A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
BXRA-W0403-00Q00LED ARRAY WARM WHITE 460LM Bridgelux |
2,230 | - |
RFQ |
データシート |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | - | 250mA | - | - | - | 500mA | - | 120° | - | - | - | - |
|
|
BXRA-C0603-00E00LED ARRAY COOL WHITE 620LM Bridgelux |
2,450 | - |
RFQ |
データシート |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Starboard | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BXRA-C0400-00000LED ARRAY COOL WHITE 440LM Bridgelux |
3,558 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Starboard | 440lm (Typ) | 600mA | 25°C | 9.8V | 75 lm/W | 1A | 65 (Typ) | 120° | - | 20.04mm L x 20.04 mm W | 3.50mm | - |
|
BXRA-W0400-00000LED ARRAY WARM WHITE 440LM Bridgelux |
2,440 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | - | 900mA | - | - | - | 1.5A | - | 120° | - | - | - | - |
|

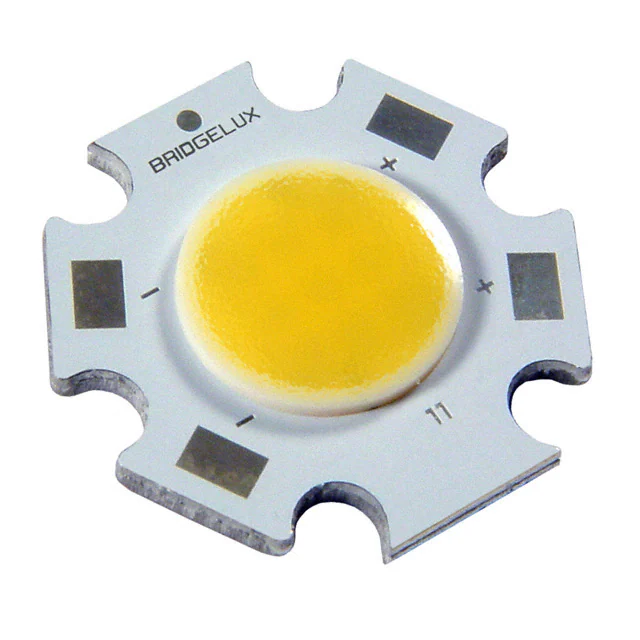

BXRA-N0400-00000LED ARRAY NEUTRAL WHITE 440LM Bridgelux |
3,525 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Starboard | 440lm (Typ) | 800mA | 25°C | 9.7V | 57 lm/W | 1.5A | 80 (Typ) | 120° | - | 20.04mm L x 20.04 mm W | 3.50mm | - |
|

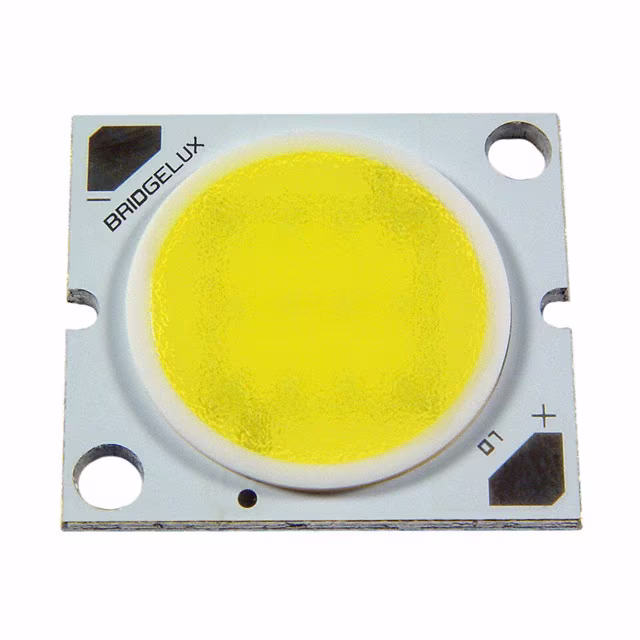

BXRA-C0800-00000LED ARRAY COOL WHITE 880LM Bridgelux |
2,306 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 880lm (Typ) | 900mA | 25°C | 13V | 75 lm/W | 1.5A | 65 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|

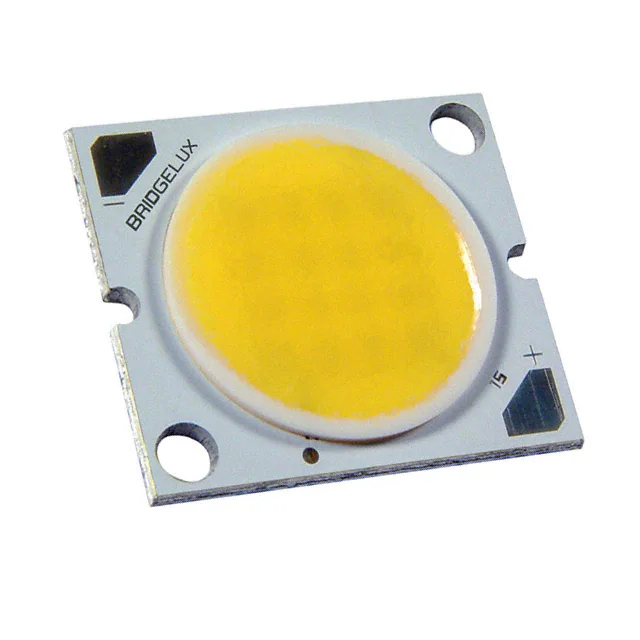

BXRA-W0800-00000LED ARRAY WARM WHITE 880LM Bridgelux |
2,953 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 880lm (Typ) | 1.3A | 25°C | 13.2V | 51 lm/W | 2A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|

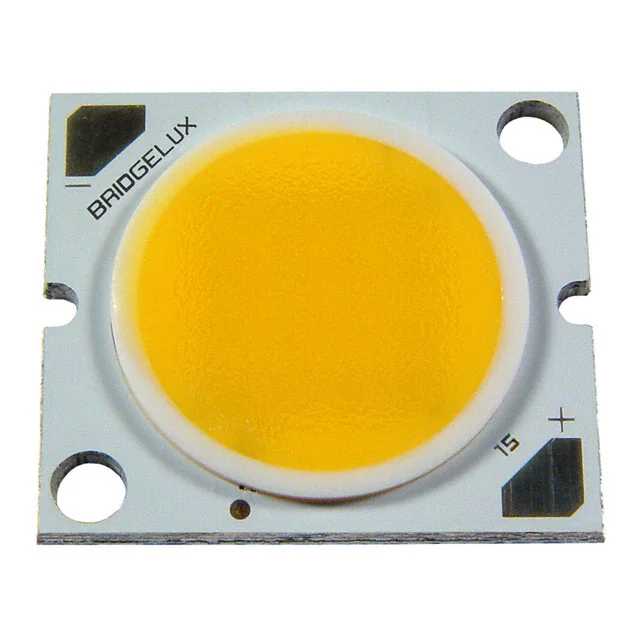

BXRA-N0800-00000LED ARRAY NEUTRAL WHITE 880LM Bridgelux |
3,850 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Square | 880lm (Typ) | 1.2A | 25°C | 13V | 56 lm/W | 2A | 80 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
|
BXRA-C1200-00000LED ARRAY COOL WHITE 1320LM Bridgelux |
2,392 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 1320lm (Typ) | 1.3A | 25°C | 13.2V | 77 lm/W | 2A | 65 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
|
BXRA-W1200-00000LED ARRAY WARM WHITE 1320LM Bridgelux |
2,408 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1320lm (Typ) | 1.6A | 25°C | 16.4V | 50 lm/W | 2.5A | 82 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
|
BXRA-N1200-00000LED ARRAY NEUTRAL WHITE 1320LM Bridgelux |
2,865 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Neutral | 4100K | - | Square | 1320lm (Typ) | 1.4A | 25°C | 16.2V | 58 lm/W | 2.5A | 80 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
|
BXRA-C2000-00000LED ARRAY COOL WHITE 2200LM Bridgelux |
3,098 | - |
RFQ |
データシート |
Tube | LED Array | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 2200lm (Typ) | 1.75A | 25°C | 16.6V | 75 lm/W | 2.5A | 65 (Typ) | 120° | - | 22.80mm L x 25.80mm W | 3.50mm | - |
|
BXRA-N4000-00L0ELED ARRAY NEUTRAL WHITE 4400LM Bridgelux |
3,889 | - |
RFQ |
データシート |
Tube | RS | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4400lm (Typ) | 2.1A | 25°C | 24.6V | 85 lm/W | 3A | 80 (Typ) | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-W3500-00S0ELED ARRAY WARM WHITE 3700LM Bridgelux |
3,260 | - |
RFQ |
データシート |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3700lm (Typ) | 2.1A | 25°C | 24.6V | 72 lm/W | 3A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-C8000-00E0CLED ARRAY COOL WHITE 8800LM Bridgelux |
2,631 | - |
RFQ |
データシート |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 8800lm (Typ) | 2.8A | 25°C | 30.9V | 102 lm/W | 3.75A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-C5000-00E0CLED ARRAY COOL WHITE 5600LM Bridgelux |
3,374 | - |
RFQ |
データシート |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 5600lm (Typ) | 2.1A | 25°C | 24.6V | 108 lm/W | 3A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-W3500-00Q0ELED ARRAY WARM WHITE 4000LM Bridgelux |
2,977 | - |
RFQ |
データシート |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4000lm (Typ) | 2.1A | 25°C | 24.6V | 77 lm/W | 3A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
