LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

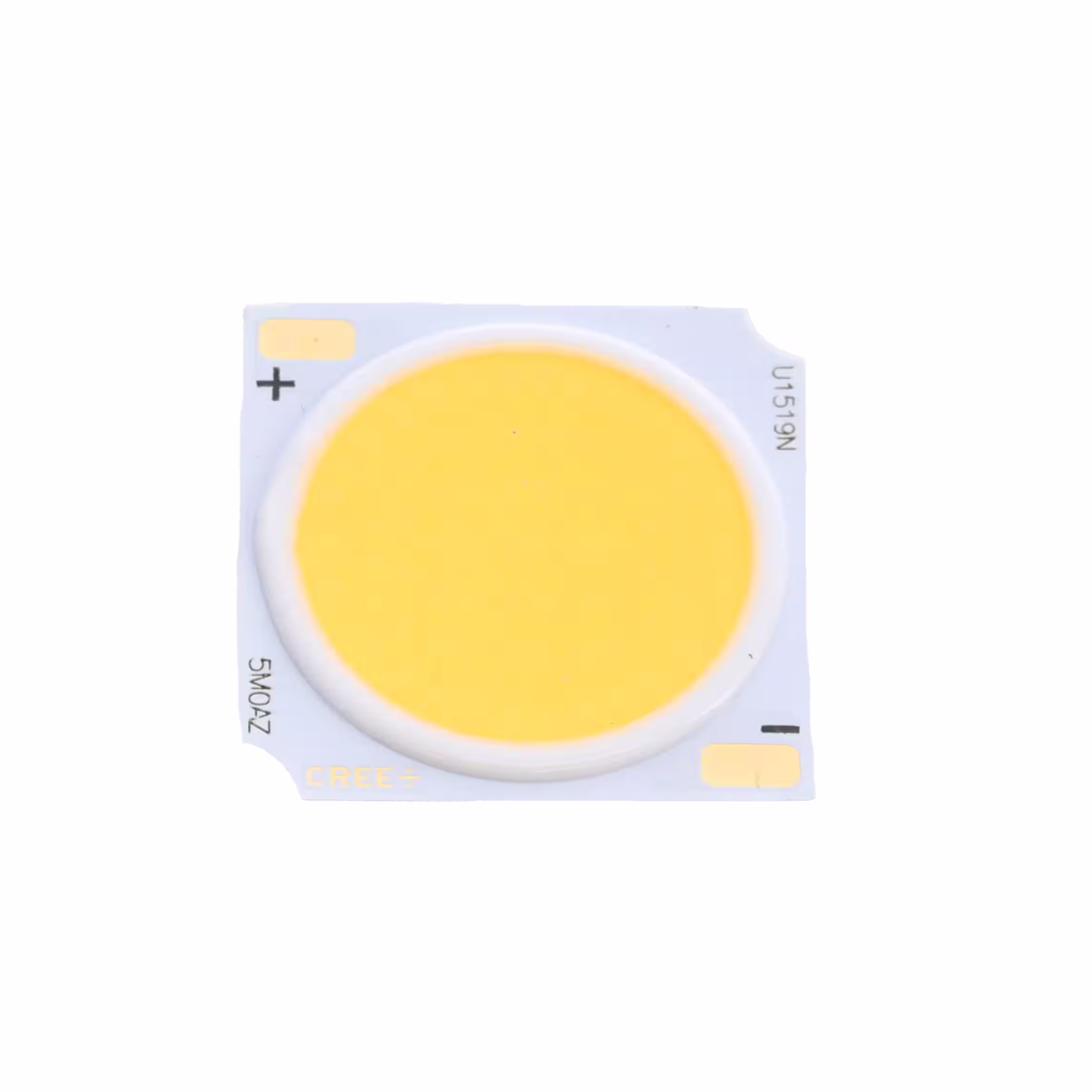

CMU1519-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
215 | - |
RFQ |
データシート |
Tray | XLamp® CMU1519 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2322lm (Typ) | 540mA | 85°C | 33.7V | 128 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
CMU1519-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
185 | - |
RFQ |
データシート |
Tray | XLamp® CMU1519 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2243lm (Typ) | 540mA | 85°C | 33.7V | 123 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|

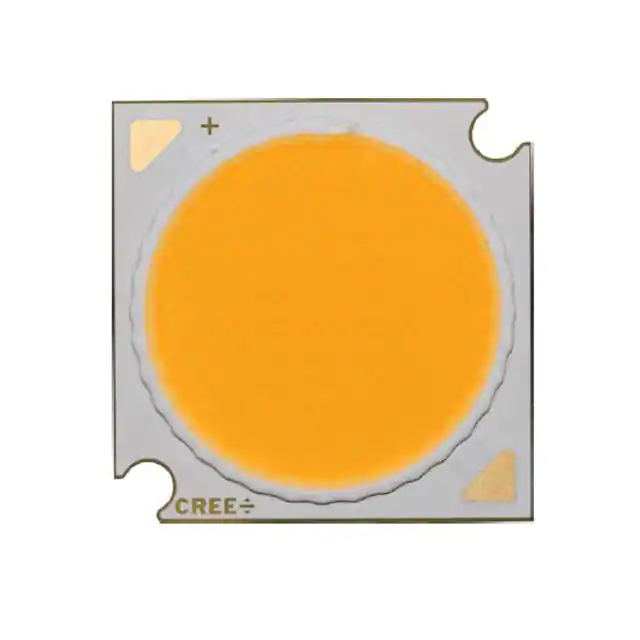

CMA3090-0000-000Q0H0A40GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,433 | - |
RFQ |
データシート |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12372lm (Typ) | 1.8A | 85°C | 45V | 153 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
CMU1526-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
223 | - |
RFQ |
データシート |
Tray | XLamp® CMU1526 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2794lm (Typ) | 720mA | 85°C | 33.7V | 115 lm/W | 1.92A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU1526-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
218 | - |
RFQ |
データシート |
Tray | XLamp® CMU1526 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3038lm (Typ) | 720mA | 85°C | 33.7V | 125 lm/W | 1.92A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU1532-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
225 | - |
RFQ |
データシート |
Tray | XLamp® CMU1532 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3746lm (Typ) | 900mA | 85°C | 33.7V | 124 lm/W | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU1532-0000-000N0Z0A35HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
224 | - |
RFQ |
データシート |
Tray | XLamp® CMU1532 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3703lm (Typ) | 900mA | 85°C | 33.7V | 122 lm/W | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU1532-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
209 | - |
RFQ |
データシート |
Tray | XLamp® CMU1532 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3692lm (Typ) | 900mA | 85°C | 33.7V | 122 lm/W | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU2239-0000-000N0H0A35GXLAMP CMU LED WHITE CreeLED, Inc. |
150 | - |
RFQ |
データシート |
Tray | XLamp® CMU2239 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6015lm (Typ) | 1.08A | 85°C | 33.7V | 165 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2287-0000-000P0U0A40GXLAMP CMU LED WHITE CreeLED, Inc. |
117 | - |
RFQ |
データシート |
Tray | XLamp® CMU2287 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11140lm (Typ) | 1.62A | 85°C | 50.5V | 136 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CXB1512-0000-000F0UM430GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
1,007 | - |
RFQ |
データシート |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 17.2V | 128 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

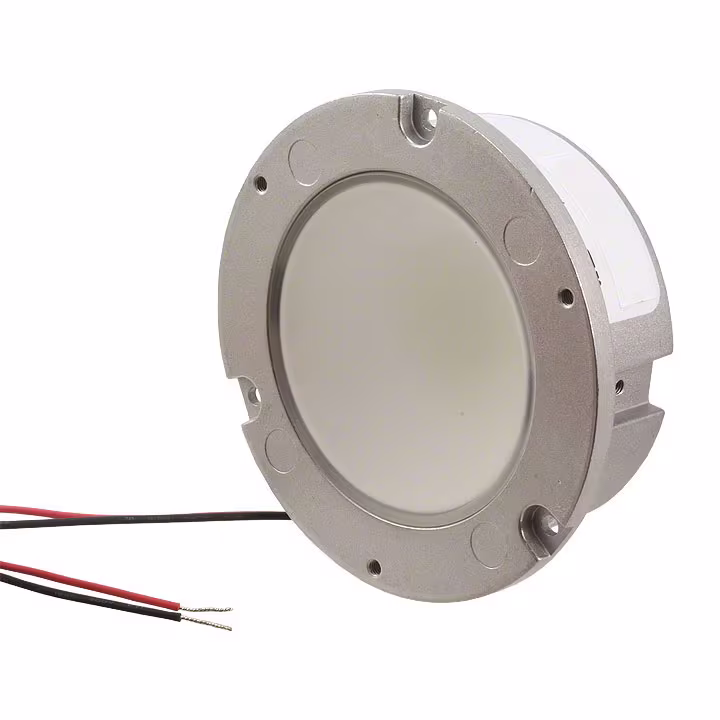

LMH020-6000-40G9-00000TWLED MOD 6000LM WHITE 4000K FLAT CreeLED, Inc. |
3,957 | - |
RFQ |
データシート |
Tray | LMH2 | Obsolete | LED Module | White, Neutral | 4000K | - | Round | - | 1.7A | - | 42.8V | 85 lm/W | 1.87A | 90 | 86° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|

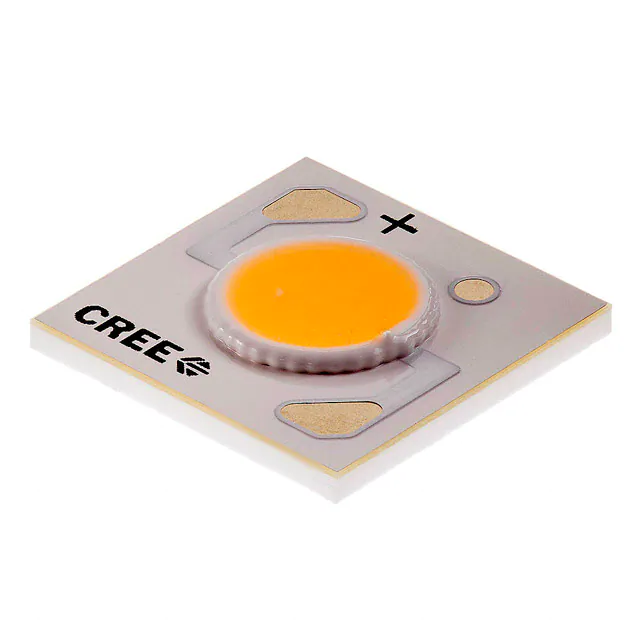

CXA1304-0000-000C00B20E5LED COB CXA1304 NEUTRAL WHT SQ CreeLED, Inc. |
394 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00B40E3LED COB CXA1304 COOL WHT SQUARE CreeLED, Inc. |
2,171 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00C40E1LED ARRAY XLAMP CXA1304 WHITE CreeLED, Inc. |
200 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 493lm (475lm ~ 510lm) | 400mA | 85°C | 9V | 137 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CXA1507-0000-000N00G435GLED COB CXA1507 3500K WHITE SMD CreeLED, Inc. |
2,454 | - |
RFQ |
データシート |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 200mA | 85°C | 36V | 121 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1304-0000-000C0HB250FLED COB CXA1304 COOL WHT SQUARE CreeLED, Inc. |
3,065 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00C20E3LED COB CXA1304 COOL WHT SQUARE CreeLED, Inc. |
3,581 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000F0HC250FLED COB CXA1304 COOL WHT SQUARE CreeLED, Inc. |
119 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 200mA | 85°C | 18V | 127 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00C450FLED COB CXA1304 COOL WHT SQUARE CreeLED, Inc. |
3,740 | - |
RFQ |
データシート |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 493lm (475lm ~ 510lm) | 400mA | 85°C | 9V | 137 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
