LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

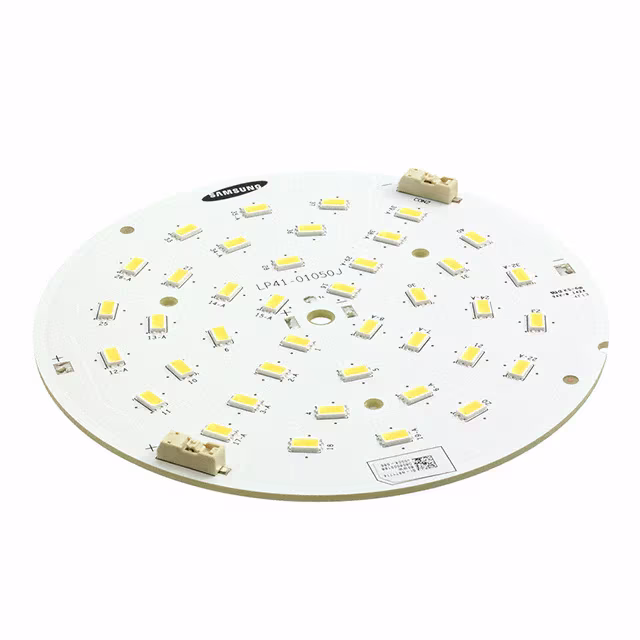

SI-N8T1714B0WWLED 4000K 80CRI LM561B Samsung Semiconductor, Inc. |
2,532 | - |
RFQ |
データシート |
Box | Round-110C | Obsolete | LED Module | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Round | 2160lm (Typ) | 700mA | 55°C | 25V | 129 lm/W | 750mA | 80 | 115° | With Connector | 110.00mm Dia | 5.80mm | - |
|

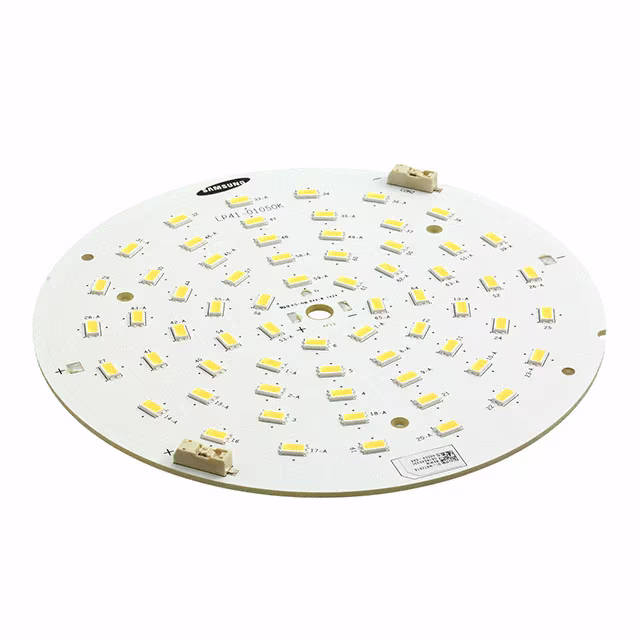

SI-N8T2816B0WWLED 4000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,856 | - |
RFQ |
データシート |
Box | Round-130C | Obsolete | LED Module | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Round | 3520lm (Typ) | 700mA | 55°C | 39.7V | 129 lm/W | 750mA | 80 | 115° | With Connector | 130.00mm Dia | 5.80mm | - |
|

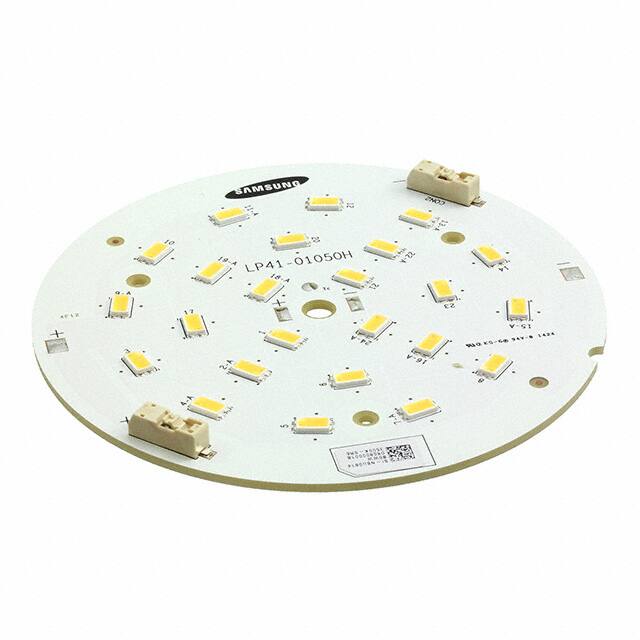

SI-N8U0814B0WWLED 3500K 80CRI LM561B Samsung Semiconductor, Inc. |
3,684 | - |
RFQ |
データシート |
Box | Round-090C | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Round | 1070lm (Typ) | 350mA | 55°C | 24V | 127 lm/W | 450mA | 80 | 115° | With Connector | 90.00mm Dia | 5.80mm | - |
|

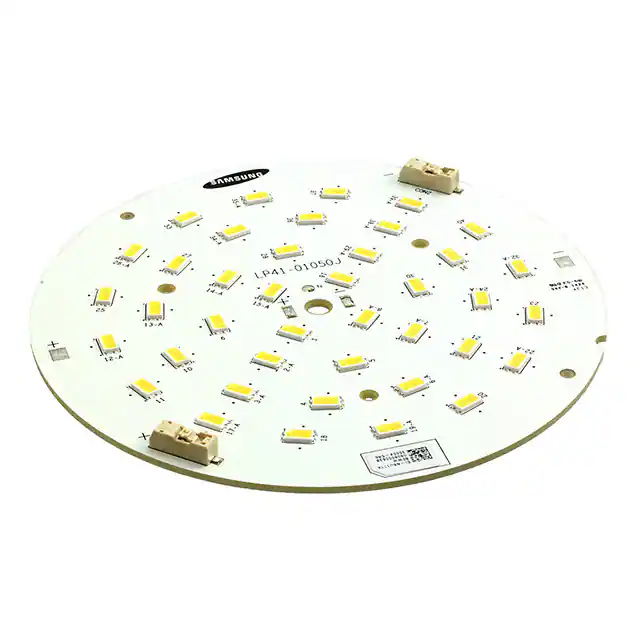

SI-N8U1714B0WWLED 3500K 80CRI LM561B Samsung Semiconductor, Inc. |
2,850 | - |
RFQ |
データシート |
Box | Round-110C | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Round | 2080lm (Typ) | 700mA | 55°C | 25V | 122 lm/W | 750mA | 80 | 115° | With Connector | 110.00mm Dia | 5.80mm | - |
|

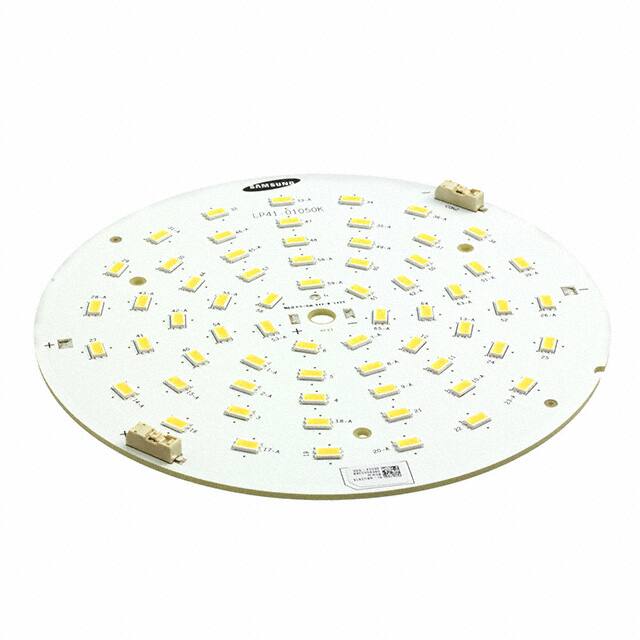

SI-N8U2816B0WWLED 3500K 80CRI LM561B Samsung Semiconductor, Inc. |
3,200 | - |
RFQ |
データシート |
Box | Round-130C | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Round | 3370lm (Typ) | 700mA | 55°C | 39.7V | 121 lm/W | 750mA | 80 | 115° | With Connector | 130.00mm Dia | 5.80mm | - |
|

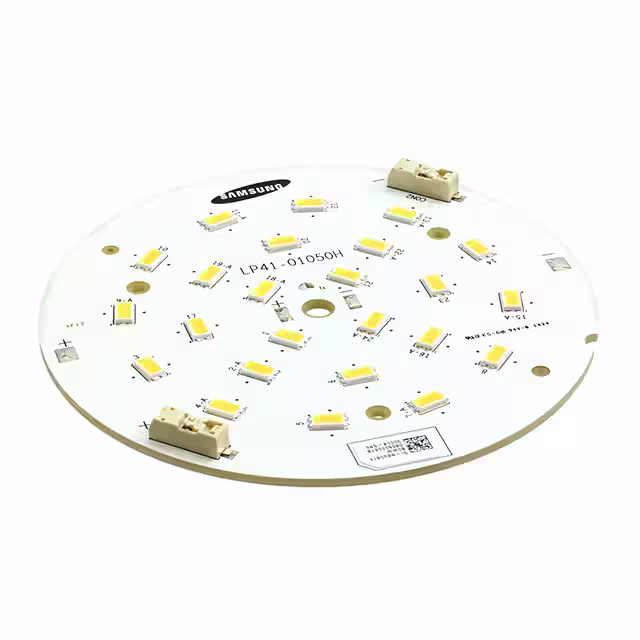

SI-N8V0814B0WWLED 3000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,449 | - |
RFQ |
データシート |
Box | Round-090C | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 1050lm (Typ) | 350mA | 55°C | 24V | 125 lm/W | 450mA | 80 | 115° | With Connector | 90.00mm Dia | 5.75mm | - |
|

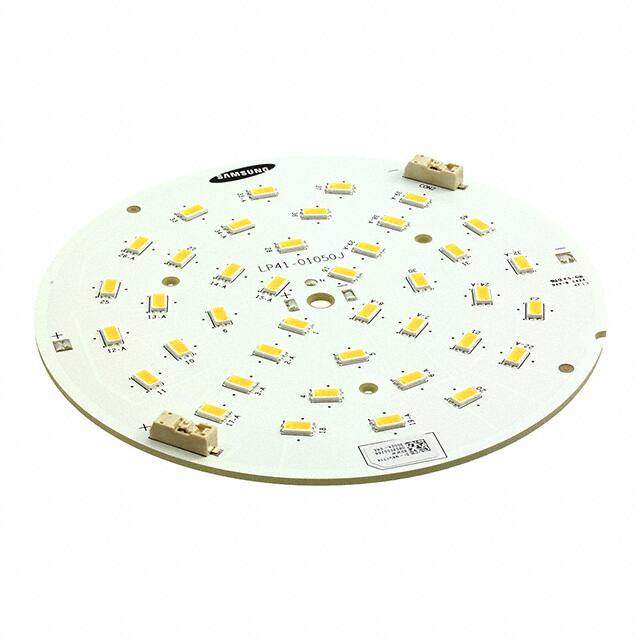

SI-N8V1714B0WWLED 3000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,643 | - |
RFQ |
データシート |
Box | Round-110C | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 2050lm (Typ) | 700mA | 55°C | 25V | 120 lm/W | 750mA | 80 | 115° | With Connector | 110.00mm Dia | 5.80mm | - |
|

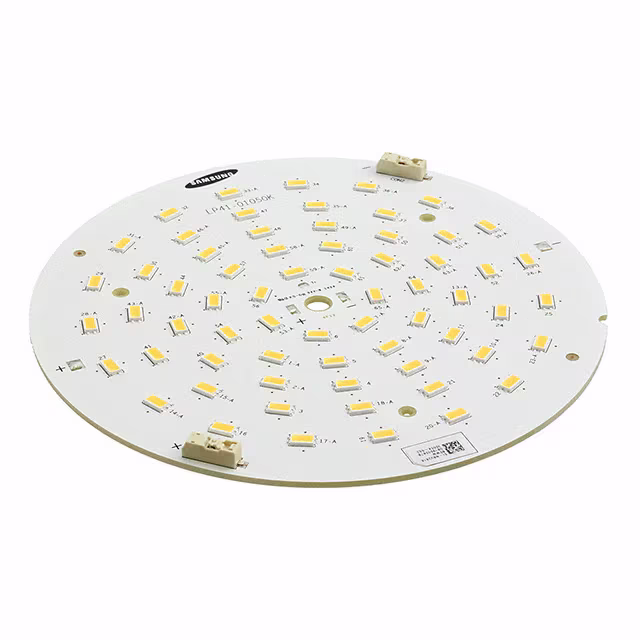

SI-N8V2816B0WWLED 3000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,870 | - |
RFQ |
データシート |
Box | Round-130C | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 3330lm (Typ) | 700mA | 55°C | 39.7V | 120 lm/W | 750mA | 80 | 115° | With Connector | 130.00mm Dia | 5.80mm | - |
|
SL-PGR2E27M3WWLED MOD ETYPE COOL WHITE RECT Samsung Semiconductor, Inc. |
2,422 | - |
RFQ |
Box | E-Type | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 1900lm (Typ) | 700mA | 65°C | 30V | 90 lm/W | 1A | 75 | - | - | 125.00mm L x 50.00mm W | 41.60mm | - | |
|
|
STOPMW757252V85E31LED MOD COOL WHITE 5700K RECT Samsung Semiconductor, Inc. |
2,499 | - |
RFQ |
Box | - | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | 1875lm (Typ) | 700mA | 65°C | 30.5V | 88 lm/W | 1A | 70 | 85° | - | 125.00mm L x 50.00mm W | 41.60mm | - | |
|
|
SI-B8V341550WWLED 3000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,605 | - |
RFQ |
Tray | LT-F552A | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4310lm (Typ) | 1.35A | 60°C | 24.7V | 129 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | |
|
|
SPHCW1HDNA25YHRT1FLED 5000K 80CRI LH351B Samsung Semiconductor, Inc. |
2,997 | - |
RFQ |
データシート |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1555lm (1430lm ~ 1680lm) | 360mA | 25°C | 36.5V | 118 lm/W | 460mA | 80 | 115° | - | 17.00mm L x 17.00mm W | 1.90mm | 11.00mm Dia |
|
|
SPHCW1HDNC23YHRN3FLED 5000K 70CRI LH351B Samsung Semiconductor, Inc. |
2,061 | - |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SPHCW1HDNE25YHRT4JLED COB LCO40B 5000K SQUARE Samsung Semiconductor, Inc. |
3,314 | - |
RFQ |
データシート |
Tray | LC040B | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5295lm (4505lm ~ 6085lm) | 1.08A | 25°C | 35.5V | 138 lm/W | 1.62A | 80 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia |
|
|
SPHWW1HDNA25YHT31FLED 3.5X3.5 4000K 80CRI LH351A Samsung Semiconductor, Inc. |
2,388 | - |
RFQ |
データシート |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1665lm (1430lm ~ 1900lm) | 360mA | 25°C | 35.5V | 130 lm/W | 660mA | 80 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia |
|
|
SPHWW1HDNA25YHV31FLED 3.5X3.5 3000K 80CRI LH351A Samsung Semiconductor, Inc. |
3,998 | - |
RFQ |
データシート |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1565lm (1350lm ~ 1780lm) | 360mA | 25°C | 35.5V | 122 lm/W | 660mA | 80 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia |
|
|
SPHWW1HDNA25YHW31FLED 3.5X3.5 2700K 80CRI LH351A Samsung Semiconductor, Inc. |
2,825 | - |
RFQ |
データシート |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 1500lm (1300lm ~ 1700lm) | 360mA | 25°C | 35.5V | 117 lm/W | 660mA | 80 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia |
|
|
SPHWW1HDNA27YHT31FLED 3.5X3.5 5000K 90CRI LH351A Samsung Semiconductor, Inc. |
2,131 | - |
RFQ |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1395lm (1145lm ~ 1645lm) | 360mA | 25°C | 35.5V | 109 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia | |
|
|
SPHWW1HDNA27YHU31FLED 3.5X3.5 4000K 90CRI LH351A Samsung Semiconductor, Inc. |
2,180 | - |
RFQ |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 1355lm (1115lm ~ 1595lm) | 360mA | 25°C | 35.5V | 106 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia | |
|
|
SPHWW1HDNA27YHV31FLED 3.5X3.5 3000K 90CRI LH351A Samsung Semiconductor, Inc. |
2,506 | - |
RFQ |
Tray | LC013B | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1320lm (1080lm ~ 1560lm) | 360mA | 25°C | 35.5V | 103 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.50mm | 11.00mm Dia |
