LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L235-5780AHLGBBAC0LED 3535L 5700K 80CRI COOL WHITE Lumileds |
2,058 | - |
RFQ |
データシート |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip, Flexible | 1548lm (Typ) | 600mA | 25°C | 18V | 143 lm/W | 1.2A | 80 | - | - | 600.00mm L x 10.00mm W | 1.23mm | - |
|
|
L235-5780AMLF5WAD0LED 3535L 5700K 80CRI COOL WHITE Lumileds |
2,988 | - |
RFQ |
データシート |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip, Flexible | 2408lm (Typ) | 800mA | 25°C | 21V | 143 lm/W | 1.2A | 80 | - | - | 525.40mm L x 5.25mm W | 1.23mm | - |
|
|
L235-5780AULM5JAI0LED 3535L 5700K 80CRI COOL WHITE Lumileds |
2,769 | - |
RFQ |
データシート |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip, Flexible | 4644lm (Typ) | 900mA | 25°C | 36V | 143 lm/W | 1.2A | 80 | - | - | 1150.00mm L x 5.25mm W | 1.23mm | - |
|
L202-3580033C30000LED 3535L 3P11S 3500K 80CRI Lumileds |
2,879 | - |
RFQ |
データシート |
Tray | LUXEON XR-3535L | Obsolete | LED Module | White, Warm | 3500K 5-Step MacAdam Ellipse | - | Rectangle | 1428lm (1386lm ~ 1469lm) | 300mA | 25°C | 33V | 148 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | - | - |
|
L2C1-2280120206A00LED COB 2200K 80CRI WARM WHITE Lumileds |
2,087 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 625lm (Typ) | 200mA | 85°C | 35.5V | 88 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-2780120206A00LED COB 2700K 80CRI WARM WHITE Lumileds |
3,800 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 725lm (Typ) | 200mA | 85°C | 35.5V | 102 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-2790120206A00LED COB 2700K 90CRI WARM WHITE Lumileds |
2,739 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 600lm (Typ) | 200mA | 85°C | 35.5V | 85 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-3080120206A00LED COB 3000K 80CRI WARM WHITE Lumileds |
2,296 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 775lm (Typ) | 200mA | 85°C | 35.5V | 109 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-3090120206A00LED COB 3000K 90CRI WARM WHITE Lumileds |
3,264 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 625lm (Typ) | 200mA | 85°C | 35.5V | 88 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
L2C1-3090120206AC0LED COB 3000K 90CRI CRISP WHITE Lumileds |
3,430 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 625lm (Typ) | 200mA | 85°C | 35.5V | 88 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | |
|
|
L2C1-3580120206A00LED COB 3500K 80CRI WARM WHITE Lumileds |
3,357 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 775lm (Typ) | 200mA | 85°C | 35.5V | 109 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-3590120206A00LED COB 3500K 90CRI WARM WHITE Lumileds |
2,495 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 650lm (Typ) | 200mA | 85°C | 35.5V | 92 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C1-5080120206A00LED COB 5000K 80CRI COOL WHITE Lumileds |
2,403 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 825lm (Typ) | 200mA | 85°C | 35.5V | 116 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
LHC1-5080-1202LED COB 3000K 80CRI COOL WHITE Lumileds |
2,529 | - |
RFQ |
データシート |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 875lm (Typ) | 200mA | 85°C | 35.5V | 123 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|

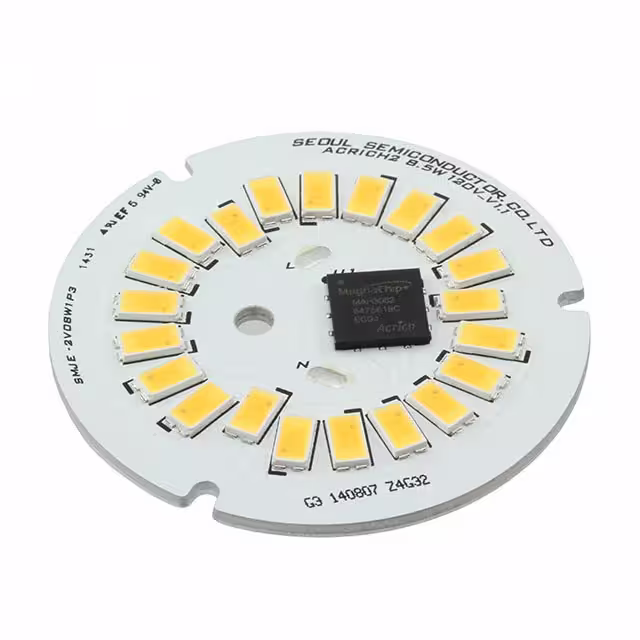

SMJE-2V08W1P3-8B-GALED MODULE WHITE 8.7W 120VAC Seoul Semiconductor Inc. |
3,439 | - |
RFQ |
データシート |
Tray | Acrich2 | Obsolete | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 800lm (Typ) | - | 25°C | 120VAC | - | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - |
|
|
SI-B8V341550WWLED 3000K 80CRI LM561B Samsung Semiconductor, Inc. |
3,605 | - |
RFQ |
Tray | LT-F552A | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4310lm (Typ) | 1.35A | 60°C | 24.7V | 129 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | |
|
ZFS-85020WR-CWLED FLEX RIBBON 12V WHT 5M JKL Components Corp. |
3,710 | - |
RFQ |
データシート |
Reel | - | Obsolete | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 1900lm (Typ) | 4A | 25°C | 12V | 40 lm/W | - | - | 120° | - | 5000.00mm L x 13.00mm W | 5.60mm | - |
|
ZFS-85020WR-WWLED FLEX RIBBON 12V WHT 5M JKL Components Corp. |
3,734 | - |
RFQ |
データシート |
Bulk | - | Obsolete | LED Engine | - | - | - | Linear Light Strip, Flexible | - | 4A | 25°C | 12V | - | - | - | 120° | - | 5000.00mm L x 13.00mm W | 5.60mm | - |
|
|
LZ1-10CW02-0000LED MCPCB LZ1-2 COOL WHITE OSRAM SYLVANIA Inc. |
3,542 | - |
RFQ |
データシート |
Tray | LZ1 | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 227lm (182lm ~ 285lm) | 1A | 25°C | 3.6V | 63 lm/W | 1.2A | 75 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ1-10NW02-P040LED MCPCB LZ1-2 NEUTRAL WHITE OSRAM SYLVANIA Inc. |
2,506 | - |
RFQ |
データシート |
Tray | LZ1 | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 232lm (182lm ~ 282lm) | 1A | 25°C | 3.6V | 64 lm/W | 1.2A | 82 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
