LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000R0UAD50GLED COB CXA3590 5000K WHT SMD CreeLED, Inc. |
3,399 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0UZ440GLED COB CXA3590 4000K WHT SMD CreeLED, Inc. |
2,494 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YY427GLED COB CXA3590 2700K WHT SMD CreeLED, Inc. |
2,272 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YZ227GLED COB CXA3590 2700K WHT SMD CreeLED, Inc. |
3,876 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 72V | 89 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YZ230GLED COB CXA3590 3000K WHT SMD CreeLED, Inc. |
2,564 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 72V | 89 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YZ235GLED COB CXA3590 3500K WHT SMD CreeLED, Inc. |
3,193 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 72V | 89 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YZ430GLED COB CXA3590 3000K WHT SMD CreeLED, Inc. |
2,272 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0YZ435GLED COB CXA3590 3500K WHT SMD CreeLED, Inc. |
3,780 | - |
RFQ |
データシート |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
CXB2530-0000-000N0BU250ELED COB CXB2530 5000K WHT SMD CreeLED, Inc. |
2,084 | - |
RFQ |
データシート |
Tray | Xlamp® CXB2530 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 36V | 133 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB2530-0000-000N0BU450ELED COB CXB2530 5000K WHT SMD CreeLED, Inc. |
3,082 | - |
RFQ |
データシート |
Tray | Xlamp® CXB2530 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB2530-0000-000N0BV250ELED COB CXB2530 5000K WHT SMD CreeLED, Inc. |
3,155 | - |
RFQ |
データシート |
Tray | Xlamp® CXB2530 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 800mA | 85°C | 36V | 152 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB2530-0000-000N0HU250ELED COB CXB2530 5000K WHT SMD CreeLED, Inc. |
2,532 | - |
RFQ |
データシート |
Tray | Xlamp® CXB2530 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 36V | 133 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB2530-0000-000N0HU450ELED COB CXB2530 5000K WHT SMD CreeLED, Inc. |
3,193 | - |
RFQ |
データシート |
Tray | Xlamp® CXB2530 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB3070-0000-000N0BBD40ELED COB CXB3070 4000K WHT SMD CreeLED, Inc. |
2,370 | - |
RFQ |
データシート |
Tray | Xlamp® CXB3070 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.9A | 85°C | 36V | 154 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|

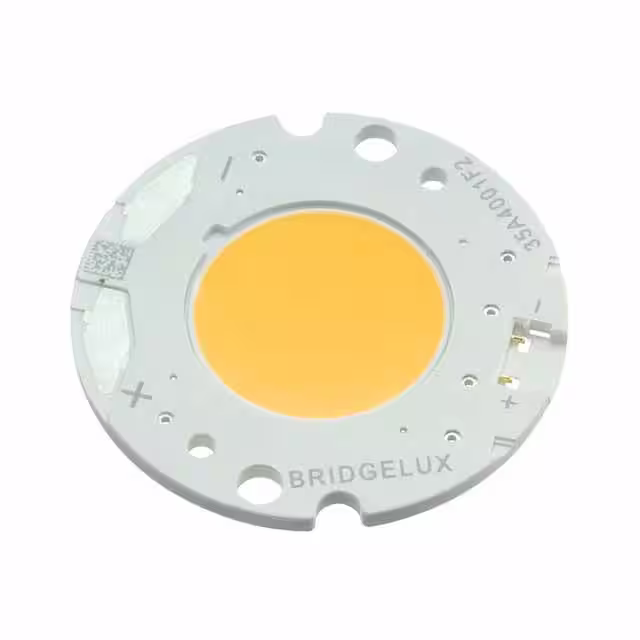

BXRC-35A4001-F-23LED ARRAY 3500K WHT 4000LM COB Bridgelux |
2,273 | - |
RFQ |
データシート |
Tray | Décor Series™ Class A Vero® 18 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2868lm (Typ) | 1.05A | 70°C | 28.6V | 96 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
SI-B8P09628001LED MOD 6500K 1380LM 80CRI Samsung Semiconductor, Inc. |
2,251 | - |
RFQ |
Box | Finger-RT32B | Obsolete | LED Module | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Rectangle | 1380lm (Typ) | 385mA | 35°C | 24V | 149 lm/W | 600mA | 80 | 115° | With Connector | 216.00mm L x 273.00mm W | 5.80mm | - | |
|
|
SI-B8P10125001LED MOD 6500K 1360LM 80CRI Samsung Semiconductor, Inc. |
2,440 | - |
RFQ |
Tray | Finger-SQ64B | Obsolete | LED Module | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Rectangle | 1360lm (Typ) | 700mA | 35°C | 12V | 162 lm/W | 1.6A | 80 | 115° | With Connector | 259.00mm L x 250.00mm W | 6.70mm | - | |
|
|
SI-B8P10128001LED MOD 6500K 1360LM 80CRI Samsung Semiconductor, Inc. |
3,444 | - |
RFQ |
Tray | Finger-RT64B | Obsolete | LED Module | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Rectangle | 1360lm (Typ) | 700mA | 35°C | 12V | 162 lm/W | 1.6A | 80 | 115° | With Connector | 230.00mm L x 273.00mm W | 6.70mm | - | |
|
|
SI-B8P11125001LED MOD 6500K 1440LM 80CRI Samsung Semiconductor, Inc. |
3,903 | - |
RFQ |
Box | LAM-SQ30B | Obsolete | LED Module | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Rectangle | 1440lm (Typ) | 700mA | 35°C | 15V | 137 lm/W | 900mA | 80 | 145° | With Connector | 259.00mm L x 250.00mm W | 6.70mm | - | |
|
|
SI-B8P11128001LED MOD 6500K 1440LM 80CRI Samsung Semiconductor, Inc. |
3,180 | - |
RFQ |
Box | LAM-RT30B | Obsolete | LED Module | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Rectangle | 1440lm (Typ) | 700mA | 35°C | 15V | 137 lm/W | 900mA | 80 | 145° | With Connector | 216.00mm L x 273.00mm W | 6.60mm | - |
