0オプトアイソレータ - ロジック出力
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-M61U-000EOPTOISO 3.75KV OPN COLLECTOR 5SO Broadcom Limited |
2,026 | - |
RFQ |
データシート |
Tube | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
HCPL-2631#500OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited |
3,699 | - |
RFQ |
データシート |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACNV4506-000EOPTOISO 7.5KV OPEN COLL 10DIP Broadcom Limited |
2,417 | - |
RFQ |
データシート |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 30kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 105°C | Through Hole |
|
|
HCPL-263A-500EOPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited |
2,987 | - |
RFQ |
データシート |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACSL-7210-56REOPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited |
3,687 | - |
RFQ |
データシート |
Tape & Reel (TR) | - | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

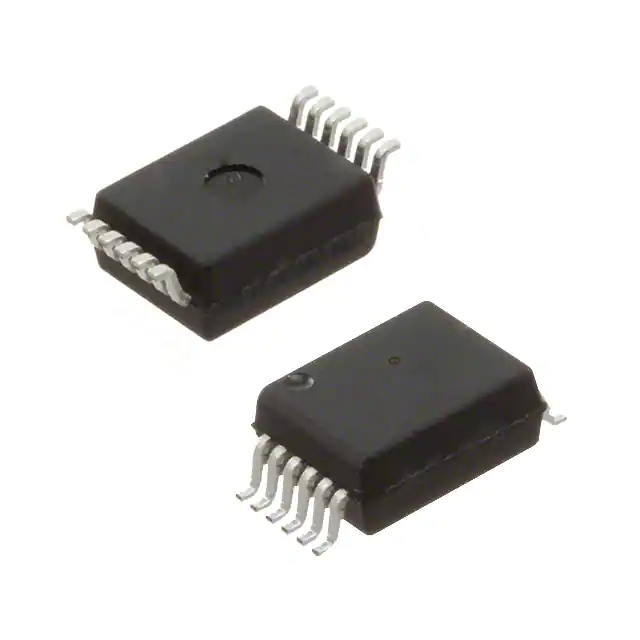

ACFL-6211U-000EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
3,472 | - |
RFQ |
データシート |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-000EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
2,299 | - |
RFQ |
データシート |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-263A-520EOPTOISO 5KV 2CH OPEN COL 8DIP GW Broadcom Limited |
2,738 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACFL-6211U-060EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
3,955 | - |
RFQ |
データシート |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-060EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
3,560 | - |
RFQ |
データシート |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
HCPL-2631OPTOISO 3.75KV 2CH OPEN COL 8DIP Broadcom Limited |
2,998 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2631#300OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited |
2,930 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2631#020OPTOISO 5KV 2CH OPEN COLL 8DIP Broadcom Limited |
3,094 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-0211#500OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited |
2,124 | - |
RFQ |
データシート |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-263A-300EOPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited |
2,577 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-263A-320EOPTOISO 5KV 2CH OPEN COL 8DIP GW Broadcom Limited |
2,512 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
HCNW2211OPTOISO 5KV PUSH PULL 8DIP Broadcom Limited |
2,829 | - |
RFQ |
データシート |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
ACNW261L-500EOPTOISO 5KV TRI-STATE 8SMD Broadcom Limited |
2,609 | - |
RFQ |
データシート |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 95ns, 95ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-0720-060EOPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited |
2,560 | - |
RFQ |
データシート |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-074L-060EOPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited |
2,971 | - |
RFQ |
データシート |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
