PMIC - 電力分配スイッチ、負荷ドライバ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN920SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 STMicroelectronics |
2,473 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 15mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
L6375DIC PWR SWITCH N-CHAN 1:1 20SOIC STMicroelectronics |
3,195 | - |
RFQ |
データシート |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 35V | Not Required | 500mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 125°C (TJ) | Surface Mount |
|
VNQ5E050MKTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 STMicroelectronics |
2,596 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 19A | 50mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
VND7004AYTRIC PWR SWTCH N-CHAN 1:1 PWRSSO36 STMicroelectronics |
3,392 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 100A | 4mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
VNQ830ETR-EIC PWR DRIVER N-CHANNEL 1:1 28SO STMicroelectronics |
3,134 | - |
RFQ |
データシート |
Tape & Reel (TR) | VIPower™ | Not For New Designs | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 9.5A | 65mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|

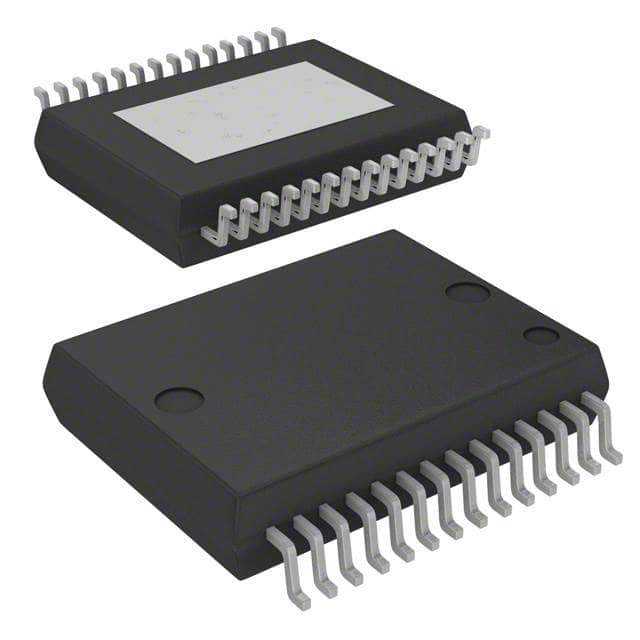

L9733CNIC PWR DRVR N-CHAN 1:8 PWRSSO28 STMicroelectronics |
3,081 | - |
RFQ |
データシート |
Tube | - | Active | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 4.5V ~ 18V | 4.5V ~ 5.5V | 1A | 700mOhm (Max) | Non-Inverting | PWM Input | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
VNQ860SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 STMicroelectronics |
2,329 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 250mA | 270mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
L9733XPIC PWR DRVR N-CHAN 1:8 PWRSSO28 STMicroelectronics |
2,888 | - |
RFQ |
データシート |
Tube | - | Active | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 4.5V ~ 18V | 4.5V ~ 5.5V | 1A | 700mOhm (Max) | Non-Inverting | PWM Input | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
VND5E012MYTR-EIC PWR SWTCH N-CHAN 1:1 PWRSSO36 STMicroelectronics |
3,767 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, VIPOWER™ | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 52A | 11mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VND600SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 STMicroelectronics |
2,175 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 30mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VND920PTR-EIC PWR DRIVER N-CHANNEL 1:1 28SO STMicroelectronics |
3,576 | - |
RFQ |
データシート |
Tape & Reel (TR) | VIPower™ | Not For New Designs | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VND920P-EIC PWR DRIVER N-CHANNEL 1:1 28SO STMicroelectronics |
3,352 | - |
RFQ |
データシート |
Tube | VIPower™ | Not For New Designs | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
TDE3247FPIC PWR DRIVER BIPOLAR 1:1 14SO STMicroelectronics |
2,165 | - |
RFQ |
データシート |
Tube | - | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | Bipolar | On/Off | 8V ~ 30V | Not Required | 300mA | - | Inverting, Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -25°C ~ 85°C (TA) | Surface Mount |
|
|
VNQ5E160AK-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 STMicroelectronics |
3,171 | - |
RFQ |
データシート |
Tube | VIPower™ | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 7A | 160mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VB525SPTR-EIC PWR DRVR BIPOLAR 1:1 PWRSO10 STMicroelectronics |
2,777 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | On/Off | 4.5V ~ 5.5V | - | 9A | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
TDE3247FPTIC PWR DRIVER BIPOLAR 1:1 14SO STMicroelectronics |
3,712 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | Bipolar | On/Off | 8V ~ 30V | Not Required | 300mA | - | Inverting, Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -25°C ~ 85°C (TA) | Surface Mount |
|
VN920B5-EIC PWR DRIVER N-CHAN 1:1 P2PAK STMicroelectronics |
2,006 | - |
RFQ |
データシート |
Tube | VIPower™ | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VNQ6040STR-EIC PWR DRVR N-CHAN 1:1 PWRSSO36 STMicroelectronics |
3,344 | - |
RFQ |
データシート |
Tape & Reel (TR) | VIPower™ | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 5V ~ 28V | - | 25A | 35mOhm | - | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VNQ5160K-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 STMicroelectronics |
3,483 | - |
RFQ |
データシート |
Tray | VIPower™ | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 3.8A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
VB325SPTR-EIC PWR DRVR BIPOLAR 1:1 PWRSO10 STMicroelectronics |
2,073 | - |
RFQ |
データシート |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | Parallel | 30V (Max) | 4.5V ~ 5.5V | 10A | - | Non-Inverting | Status Flag | Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
