パワー リレー、2 アンペア以上
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F21C120VACSRELAY GEN PURPOSE SPDT 40A 120V CIT Relay and Switch |
225 | - |
RFQ |
データシート |
Tube | J115F2 | Active | Through Hole | 120VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 39.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
T9GV2L14-9RELAY GEN PURPOSE SPST 20A 9V TE Connectivity Potter & Brumfield Relays |
393 | - |
RFQ |
データシート |
Bulk | T9G | Active | Through Hole | 9VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.75 VDC | 0.9 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
J115F21CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V CIT Relay and Switch |
3,219 | - |
RFQ |
データシート |
Tube | J115F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
|
T9GV5L14-24RELAY GEN PURPOSE SPDT 20A 24V TE Connectivity Potter & Brumfield Relays |
987 | - |
RFQ |
データシート |
Bulk | T9G | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|

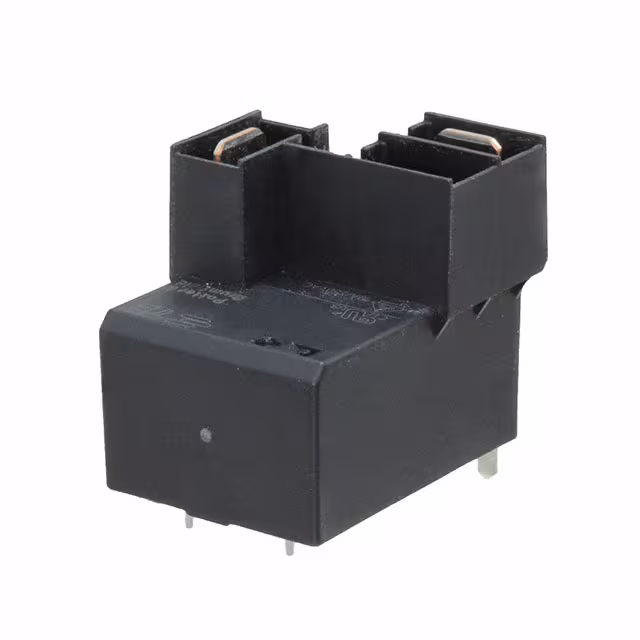

T9GS2L24-24RELAY GEN PURPOSE SPST 20A 24V TE Connectivity Potter & Brumfield Relays |
2,462 | - |
RFQ |
データシート |
Bulk | T9G | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|

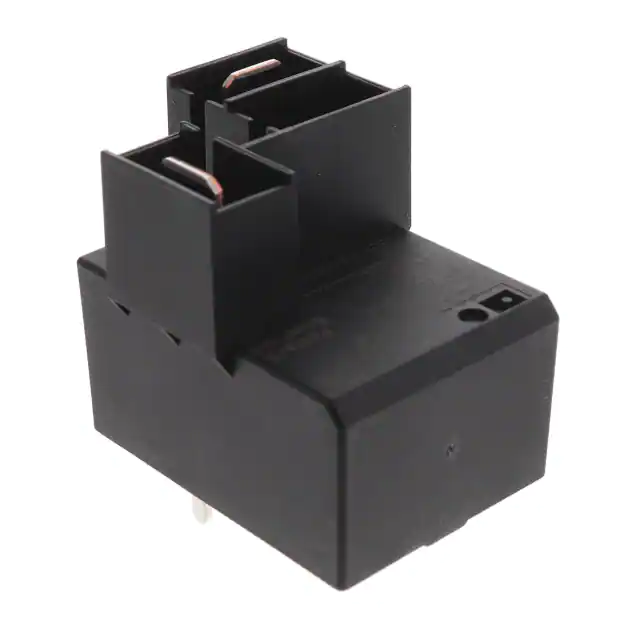

T9GS2L24-12RELAY GEN PURPOSE SPST 20A 12V TE Connectivity Potter & Brumfield Relays |
316 | - |
RFQ |
データシート |
Bulk | T9G | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
PCN-106D3MHZ,000RELAY GEN PURPOSE SPST 3A 6V TE Connectivity Potter & Brumfield Relays |
2,653 | - |
RFQ |
データシート |
Tube | PCN, SCHRACK | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 3 A | 277VAC, 125VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 8 ms | 3 ms | -30°C ~ 70°C | Silver Nickel (AgNi) |
|
G2R-1A4-DC5RELAY GEN PURPOSE SPST 8A 5V Omron Electronics Inc-EMC Div |
979 | - |
RFQ |
データシート |
Tray | G2R | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
G2R-1A-H-DC24RELAY GEN PURPOSE SPST 5A 24V Omron Electronics Inc-EMC Div |
115 | - |
RFQ |
データシート |
Tray | G2R | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
ADW1112WRELAY GEN PURPOSE SPST 8A 12V Panasonic Electric Works |
3,877 | - |
RFQ |
データシート |
Tray | DW | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
L115F11AH5VDCS1.5URELAY GEN PURPOSE SPST 50A 5V CIT Relay and Switch |
3,426 | - |
RFQ |
データシート |
Tube | L115F1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
RT425005RELAY GEN PURPOSE DPDT 8A 5V TE Connectivity Potter & Brumfield Relays |
3,501 | - |
RFQ |
データシート |
Tube | RT2, SCHRACK | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
G2R-24-H-DC24RELAY GEN PURPOSE DPDT 3A 24V Omron Electronics Inc-EMC Div |
233 | - |
RFQ |
データシート |
Tray | G2R | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
G4W-1112P-US-TV8-HP-DC12RELAY GEN PURPOSE SPST 15A 12V Omron Electronics Inc-EMC Div |
532 | - |
RFQ |
データシート |
Tube | G4W | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|

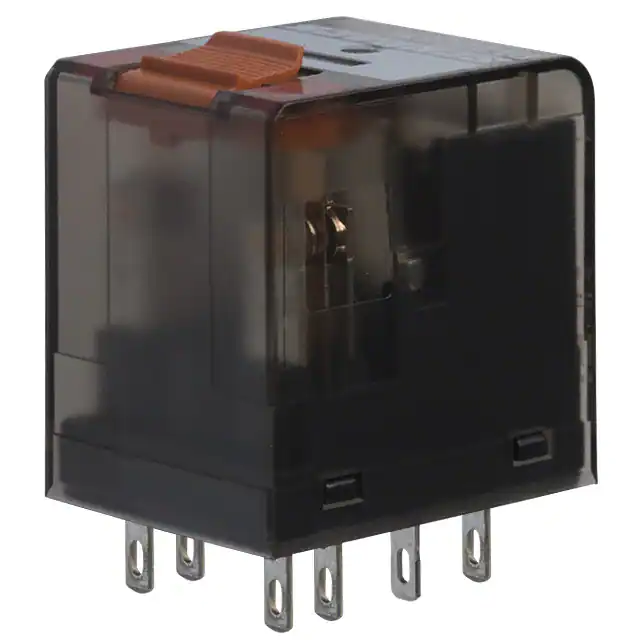

PT370615RELAY GEN PURPOSE 3PDT 10A 115V TE Connectivity Potter & Brumfield Relays |
198 | - |
RFQ |
データシート |
Bulk | PT, SCHRACK | Active | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | - | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 92 VAC | 34.5 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
G6RL-1A DC12RELAY GEN PURPOSE SPST 10A 12V Omron Electronics Inc-EMC Div |
643 | - |
RFQ |
データシート |
Tray | G6RL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 18.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
T9GV5L14-12RELAY GEN PURPOSE SPDT 20A 12V TE Connectivity Potter & Brumfield Relays |
3,227 | - |
RFQ |
データシート |
Bulk | T9G | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
G6RL-1A4-ASI-DC5RELAY GEN PURPOSE SPST 10A 5V Omron Electronics Inc-EMC Div |
3,632 | - |
RFQ |
データシート |
Bulk | G6RL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) |
|
G5RL-K1-E-DC12RELAY GEN PURPOSE SPDT 16A 12V Omron Electronics Inc-EMC Div |
207 | - |
RFQ |
Tray | G5RL-K | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 62.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | - | |
|
|
G5RL-K1-E-DC24RELAY GEN PURPOSE SPDT 16A 24V Omron Electronics Inc-EMC Div |
143 | - |
RFQ |
Tube | G5RL-K | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 35 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | - |
