パワー リレー、2 アンペア以上
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1A-6VRELAY GEN PURPOSE SPST 5A 6V Panasonic Electric Works |
2,156 | - |
RFQ |
データシート |
Tube | PA | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
PQ1A-12VRELAY GEN PURPOSE SPST 5A 12V Panasonic Electric Works |
3,569 | - |
RFQ |
データシート |
Box | PQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PQ1A-18VRELAY GEN PURPOSE SPST 5A 18V Panasonic Electric Works |
3,377 | - |
RFQ |
データシート |
Tube | PQ | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PQ1A-24VRELAY GEN PURPOSE SPST 5A 24V Panasonic Electric Works |
2,179 | - |
RFQ |
データシート |
Tube | PQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|

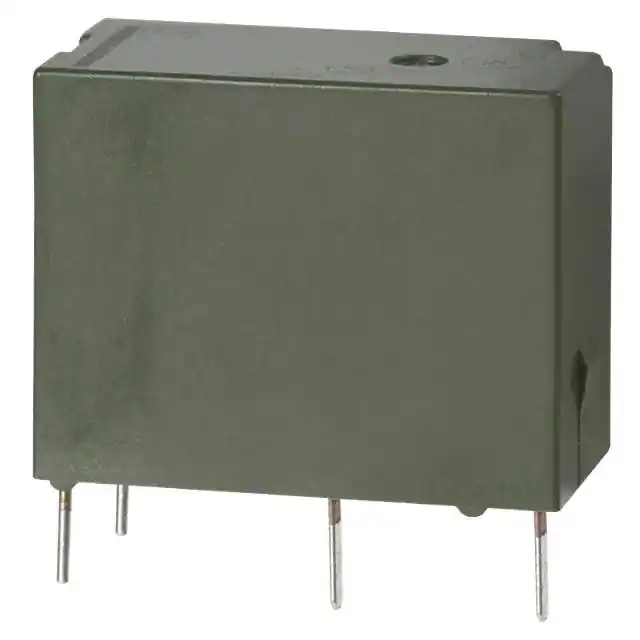

PQ1A-3VRELAY GEN PURPOSE SPST 5A 3V Panasonic Electric Works |
2,763 | - |
RFQ |
データシート |
Tube | PQ | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.15 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PQ1A-5VRELAY GEN PURPOSE SPST 5A 5V Panasonic Electric Works |
3,279 | - |
RFQ |
データシート |
Box | PQ | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PQ1A-6VRELAY GEN PURPOSE SPST 5A 6V Panasonic Electric Works |
2,107 | - |
RFQ |
データシート |
Tube | PQ | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.3 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PQ1A-9VRELAY GEN PURPOSE SPST 5A 9V Panasonic Electric Works |
2,695 | - |
RFQ |
データシート |
Tube | PQ | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
SP4-DC36VRELAY GEN PURPOSE 4PDT 10A 36V Panasonic Electric Works |
3,155 | - |
RFQ |
データシート |
Box | SP | Obsolete | Socketable | 36VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 8.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 25.2 VDC | 3.6 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
ST1-DC15VRELAY GEN PURPOSE DPST 8A 15V Panasonic Electric Works |
3,689 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 15VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 16 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12 VDC | 1.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-DC48VRELAY GEN PURPOSE DPST 8A 48V Panasonic Electric Works |
2,980 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 5.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-DC6VRELAY GEN PURPOSE DPST 8A 6V Panasonic Electric Works |
3,834 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC12VRELAY GEN PURPOSE DPST 8A 12V Panasonic Electric Works |
2,228 | - |
RFQ |
データシート |
Box | ST | Obsolete | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 18.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC24VRELAY GEN PURPOSE DPST 8A 24V Panasonic Electric Works |
3,638 | - |
RFQ |
データシート |
Box | ST | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 10 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC3VRELAY GEN PURPOSE DPST 8A 3V Panasonic Electric Works |
3,505 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 75 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC48VRELAY GEN PURPOSE DPST 8A 48V Panasonic Electric Works |
2,613 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 4.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 38.4 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC5VRELAY GEN PURPOSE DPST 8A 5V Panasonic Electric Works |
2,550 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 45.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC6VRELAY GEN PURPOSE DPST 8A 6V Panasonic Electric Works |
2,912 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 38.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.8 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST1-L2-DC9VRELAY GEN PURPOSE DPST 8A 9V Panasonic Electric Works |
2,910 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 25 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
ST2-DC3VRELAY GEN PURPOSE DPST 8A 3V Panasonic Electric Works |
3,811 | - |
RFQ |
データシート |
Tube | ST | Obsolete | Through Hole | 3VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 78.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
