圧力センサー、トランスデューサー
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX2102APSENSOR ABS PRESS 14.5PSI MAX NXP USA Inc. |
2,242 | - |
RFQ |
データシート |
4-SIP Module | Tray | MPX2102 | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXAZ6115AC6T1SENSOR PRESSURE ABS AXIAL 8-SOP NXP USA Inc. |
2,446 | - |
RFQ |
データシート |
8-SMD, Gull Wing, Top Port | Tape & Reel (TR),Cut Tape (CT) | MPXAZ6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXA6115AC7UPRESSURE SENSOR ABS AXIAL 8-DIP NXP USA Inc. |
3,505 | - |
RFQ |
データシート |
8-DIP (0.550, 13.97mm), Top Port | Tube | MPXA6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX2200DSENSOR DIFF PRESSURE 29 PSI MAX NXP USA Inc. |
2,186 | - |
RFQ |
データシート |
4-SIP Module | Tray | MPX2200 | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.25% | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C |
|
NPA-300B-015GSENSOR PRES 15PSI GAUGE SMD Amphenol NovaSensor |
2,054 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-300 | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 2 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12 (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
|
NPA-300B-005DSENSOR PRES 5PSI DIFF SMD Amphenol NovaSensor |
3,149 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-300 | Active | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 2 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12 (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
|
NPA-300B-030GSENSOR PRES 30PSI GAUGE SMD Amphenol NovaSensor |
2,414 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-300 | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 2 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12 (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
|
NPA-500B-030DSENSOR PRES 30PSI DIFF SMD Amphenol NovaSensor |
3,512 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-500 | Active | Board Mount | Differential | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12 (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
BPS120-AD0P15-2DGPRESSURE SENSOR, 0.15 PSID, DIGI Bourns Inc. |
2,318 | - |
RFQ |
データシート |
8-SMD, J-Lead, Dual Ports, Same Side | Tape & Reel (TR),Cut Tape (CT) | BPS120 | Active | Board Mount | Differential | 0.15PSI (1kPa) | Digital - I²C | 13 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.087 (2.2mm) Tube, Dual | Barbed | - | J Lead | 0.75PSI (5.17kPa) | -40°C ~ 85°C |
|
MPX2200DPSENSOR DIFF PRESS 29PSI MAX NXP USA Inc. |
110 | - |
RFQ |
データシート |
4-SIP Module | Tray | MPX2200 | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.25% | 10V ~ 16V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C |
|
|
MPX2050GPSENSOR PRESSURE 7.25PSI MAX NXP USA Inc. |
3,055 | - |
RFQ |
データシート |
4-SIP Module | Tray | MPX2050 | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
|
NPA-700B-005GSENSOR PRES 5PSI GAUGE SMD Amphenol NovaSensor |
2,322 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-700 | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I²C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
MPVZ5010GW6UPRESSURE SENSOR VERT 8-SOP NXP USA Inc. |
2,446 | - |
RFQ |
データシート |
8-SMD, Gull Wing, Top Port | Tube | MPVZ5010G | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.22 (5.59mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 5.8PSI (40kPa) | -40°C ~ 125°C |
|

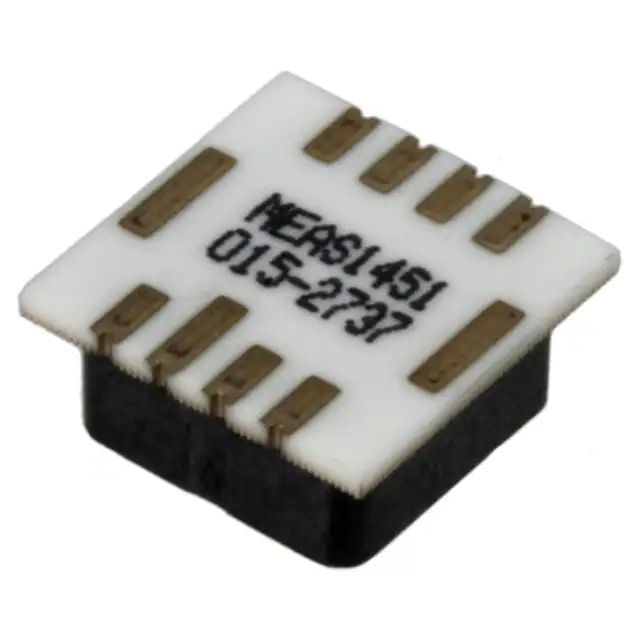

1451-015A-NSENSOR PRESSURE 15PSIA SMD TE Connectivity Measurement Specialties |
3,407 | - |
RFQ |
データシート |
10-SMD Module | Bulk,Bulk | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | - | No Port | - | SMD (SMT) Tab | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
|
NPA-700B-001GSENSOR PRES 1PSI GAUGE SMD Amphenol NovaSensor |
3,261 | - |
RFQ |
データシート |
14-SOIC Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | NPA-700 | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I²C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
1 PSI-D-CGRADE-MINISENSOR 1PSID MV DUAL Amphenol All Sensors Corporation |
2,923 | - |
RFQ |
データシート |
4-SIP Module | Tube | ACPC | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | Male - 0.18 (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C |
|
SP210-SM02-R10 INH2O / 2500PA PRESSURE SENSO Superior Sensor Technology, Inc. |
2,966 | - |
RFQ |
データシート |
11-SMD, No Lead, Top Port | Tape & Reel (TR),Cut Tape (CT) | SP | Active | Board Mount | Differential | ±0.04PSI ~ ±0.36PSI (±0.25kPa ~ ±2.5kPa) | I²C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08 (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C |
|
MLDX-005D-DX01-NMLDX SDX 5 PSID Amphenol All Sensors Corporation |
3,050 | - |
RFQ |
データシート |
6-DIP (0.600, 15.24mm), Dual Ports, Same Side | Tray | MLDX | Active | - | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0 mV ~ 50 mV | ±0.5% | 20V | Male - 0.09 (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C |
|

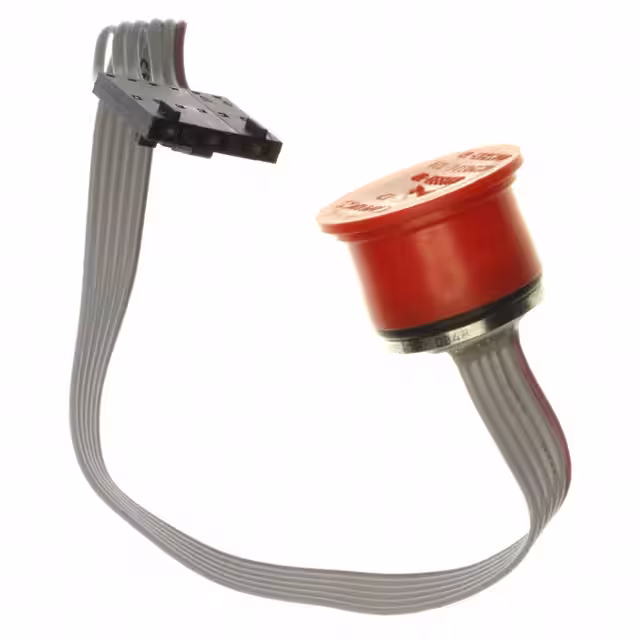

82-001G-CSENSOR 1PSIG RIBBON CABLE W/CONN TE Connectivity Measurement Specialties |
3,482 | - |
RFQ |
データシート |
- | Bulk | - | Active | Board Mount | - | - | - | - | - | - | - | - | - | Cable with Connector | - | - |
|

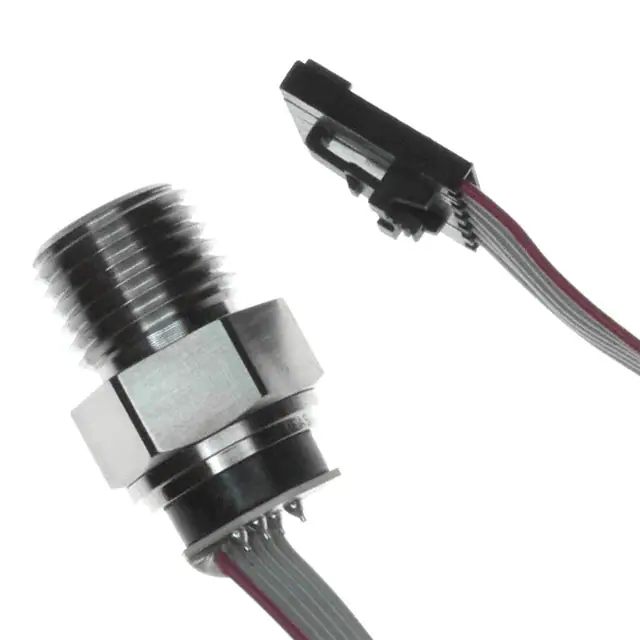

85-500G-4CSNSR PRES 500PSIG 1/4 - 18NPT TE Connectivity Measurement Specialties |
2,995 | - |
RFQ |
データシート |
Cylinder | Bulk | - | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
