LED 照明 - COB、エンジン、モジュール、ストリップ
| 写真: | メーカー部品番号 | 在庫状況 | 価格 | 数量 | データシート | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-30E0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
565 | - |
RFQ |
データシート |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 464lm (Typ) | 80mA | 25°C | 33.7V | 172 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-50G0401-C-83V6C COOL WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
データシート |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 418lm (Typ) | 80mA | 25°C | 33.7V | 155 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-57E0401-C-83V6C COOL WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
データシート |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 464lm (Typ) | 80mA | 25°C | 33.7V | 172 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRH-27E1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
595 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1691lm (Typ) | 350mA | 25°C | 36.6V | 132 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30E1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
595 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1797lm (Typ) | 350mA | 25°C | 36.6V | 140 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|

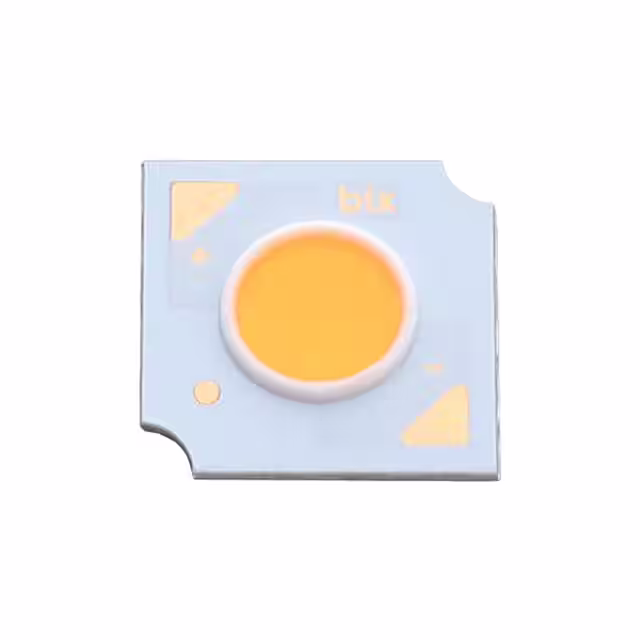

BXRH-40H1000-B-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
594 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 350mA | 25°C | 36.6V | 109 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-40E1000-B-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
594 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1850lm (Typ) | 350mA | 25°C | 36.6V | 144 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-35E1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
590 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1839lm (Typ) | 350mA | 25°C | 36.6V | 144 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27G1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
589 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 350mA | 25°C | 36.6V | 109 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30G1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
589 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1459lm (Typ) | 700mA | 25°C | 18.3V | 114 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-30E1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
589 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1797lm (Typ) | 700mA | 25°C | 18.3V | 140 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-40G1000-B-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
588 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1543lm (Typ) | 350mA | 25°C | 36.6V | 120 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-35H1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
585 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1358lm (Typ) | 350mA | 25°C | 36.6V | 106 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27H1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
583 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1237lm (Typ) | 700mA | 25°C | 18.3V | 97 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27H1000-B-83V6 HD WARM WHITE LED ARRAY Bridgelux |
580 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1237lm (Typ) | 350mA | 25°C | 36.6V | 97 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27G1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
576 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 700mA | 25°C | 18.3V | 109 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-27G10H0-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
563 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1448lm (Typ) | 700mA | 25°C | 18.3V | 113 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-35E1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
572 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1839lm (Typ) | 700mA | 25°C | 18.3V | 144 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-35H1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
569 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1358lm (Typ) | 700mA | 25°C | 18.3V | 106 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXRH-40E1000-G-83V6 HD NEUTRAL WHITE LED ARRAY Bridgelux |
569 | - |
RFQ |
データシート |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1850lm (Typ) | 700mA | 25°C | 18.3V | 144 lm/W | 1.2A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
