トランジスタ - IGBT - モジュール

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

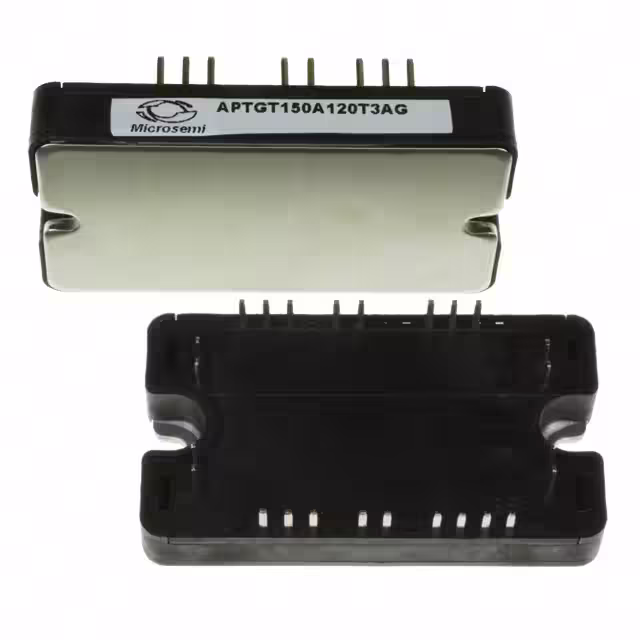

APTGT150A120T3AG IGBT MODULE 1200V 220A 833W SP3 Microchip Technology	2,809	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	833 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

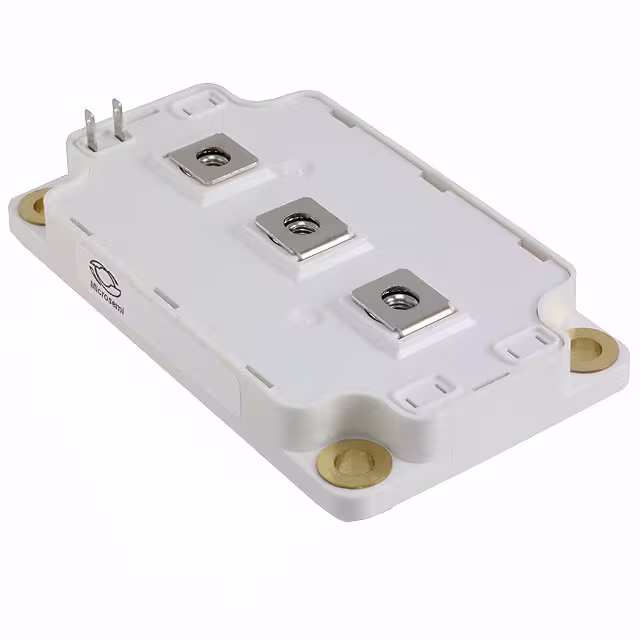

APTGT150DA120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,650	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount

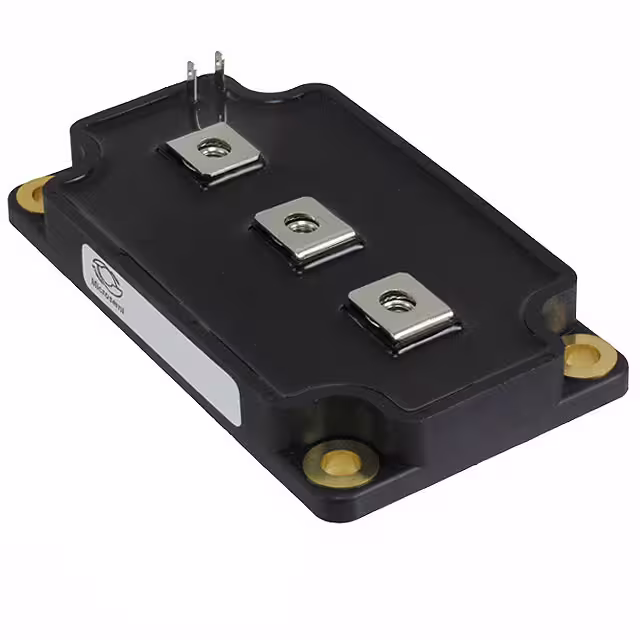

APTGT150SK120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	3,668	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT300DA60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	3,517	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT100DU170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	3,403	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

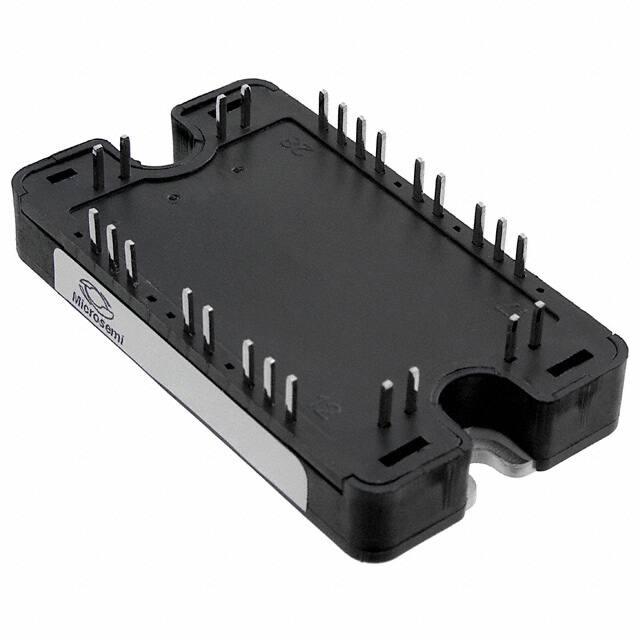

APTGT100A170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	3,969	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

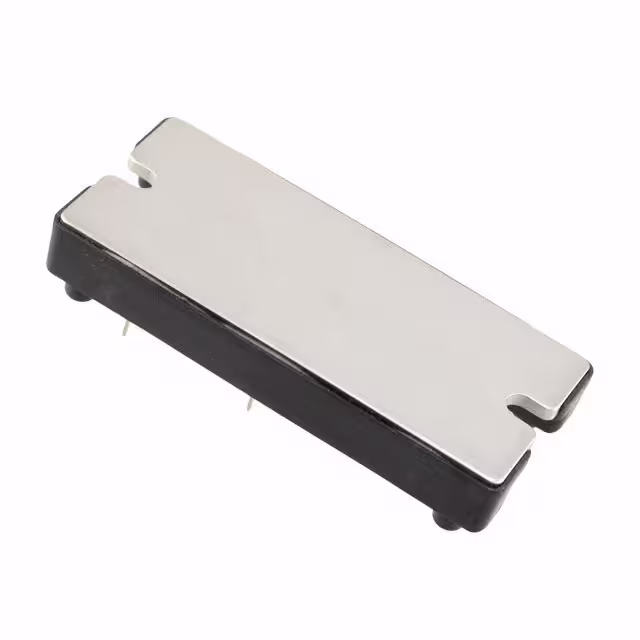

APTGT150DU120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	3,636	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT150A120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	2,273	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGT300DA60G IGBT MODULE 600V 430A 1150W SP6 Microchip Technology	3,464	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	430 A	1150 W	1.8V @ 15V, 300A	350 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT300SK60G IGBT MODULE 600V 430A 1150W SP6 Microchip Technology	2,478	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	430 A	1150 W	1.8V @ 15V, 300A	350 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT150H60TG IGBT MODULE 600V 225A 480W SP4 Microchip Technology	2,842	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	225 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT75TDU60PG IGBT MODULE 600V 100A 250W SP6P Microchip Technology	2,503	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Triple, Dual - Common Source	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

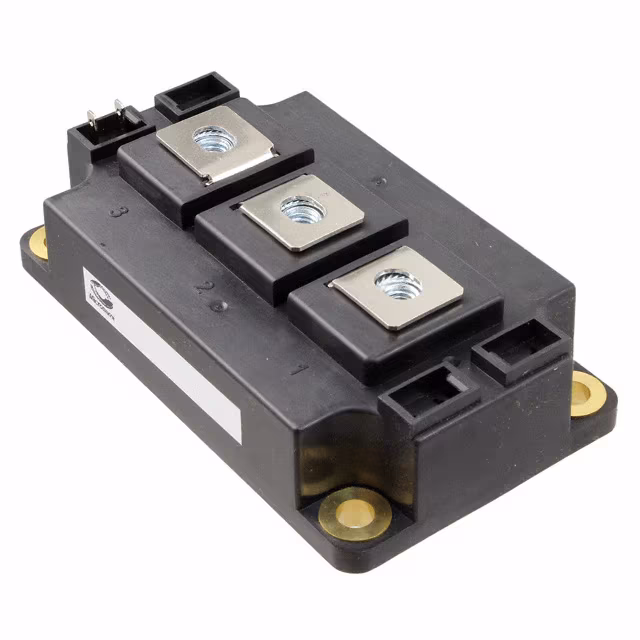

APTGT400DA60D3G IGBT MODULE 600V 500A 1250W D3 Microchip Technology	3,988	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	500 A	1250 W	1.9V @ 15V, 400A	500 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT75H120TG IGBT MODULE 1200V 110A 357W SP4 Microchip Technology	2,434	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	1200 V	110 A	357 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT200DA120G IGBT MODULE 1200V 280A 890W SP6 Microchip Technology	2,203	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	280 A	890 W	2.1V @ 15V, 200A	350 µA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT200SK120G IGBT MODULE 1200V 280A 890W SP6 Microchip Technology	3,716	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	280 A	890 W	2.1V @ 15V, 200A	350 µA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT200DH60G IGBT MODULE 600V 290A 625W SP6 Microchip Technology	3,821	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	600 V	290 A	625 W	1.9V @ 15V, 200A	250 µA	12.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT200DA120D3G IGBT MODULE 1200V 300A 1050W D3 Microchip Technology	2,982	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	300 A	1050 W	2.1V @ 15V, 200A	6 mA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT150SK170G IGBT MODULE 1700V 250A 890W SP6 Microchip Technology	2,388	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1700 V	250 A	890 W	2.4V @ 15V, 150A	350 µA	13.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT100TDU60PG IGBT MODULE 600V 150A 340W SP6P Microchip Technology	3,234	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Triple, Dual - Common Source	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
