トランジスタ - IGBT - モジュール

メーカー部品番号	在庫状況	価格	数量	データシート	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APTGT450DA60G IGBT MODULE 600V 550A 1750W SP6 Microchip Technology	3,480	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	550 A	1750 W	1.8V @ 15V, 450A	500 µA	37 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT450SK60G IGBT MODULE 600V 550A 1750W SP6 Microchip Technology	2,181	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	550 A	1750 W	1.8V @ 15V, 450A	500 µA	37 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGLQ300SK120G IGBT MODULE 1200V 500A 1500W SP6 Microchip Technology	2,462	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Buck Chopper	1200 V	500 A	1500 W	2.42V @ 15V, 300A	200 µA	17.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT150A120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	3,550	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount
APTGT150DU120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,650	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount

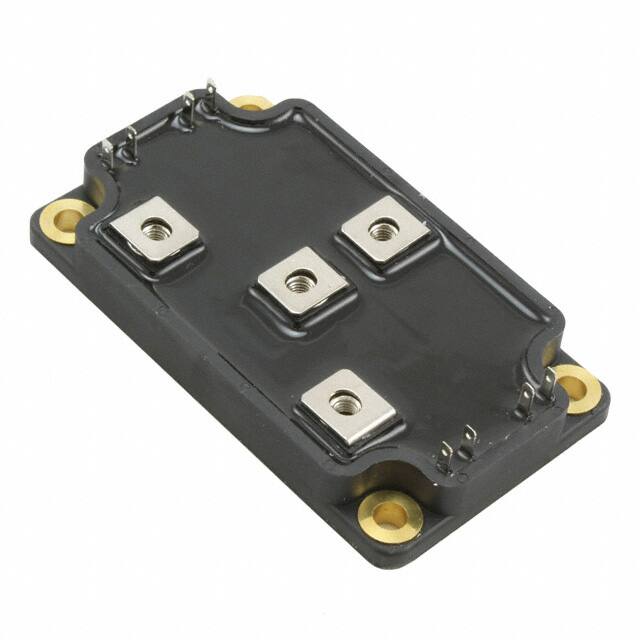

APTGT150TL60G IGBT MODULE 600V 200A 480W SP6 Microchip Technology	3,034	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	200 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

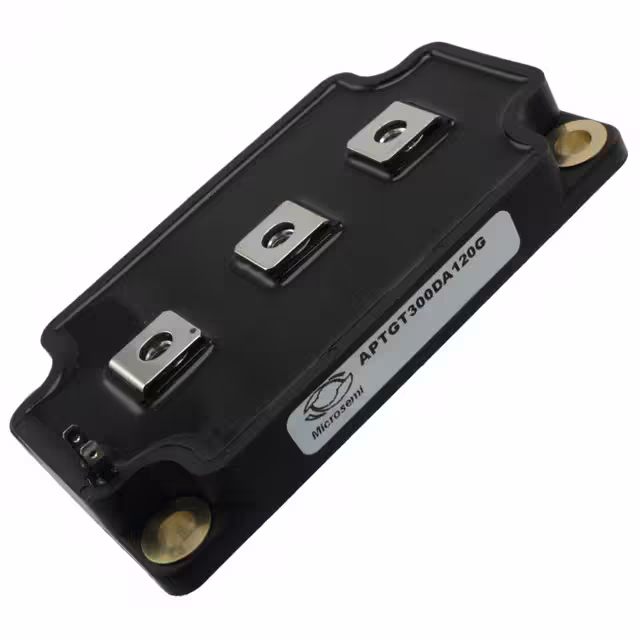

APTGT300DA120G IGBT MODULE 1200V 420A 1380W SP6 Microchip Technology	2,821	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	420 A	1380 W	2.1V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT300SK120G IGBT MODULE 1200V 420A 1380W SP6 Microchip Technology	2,729	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	420 A	1380 W	2.1V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT50H170TG IGBT MODULE 1700V 75A 312W SP4 Microchip Technology	3,360	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT150DH120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,617	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount
APTGT300A60G IGBT MODULE 600V 430A 1150W SP6 Microchip Technology	3,828	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	430 A	1150 W	1.8V @ 15V, 300A	350 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

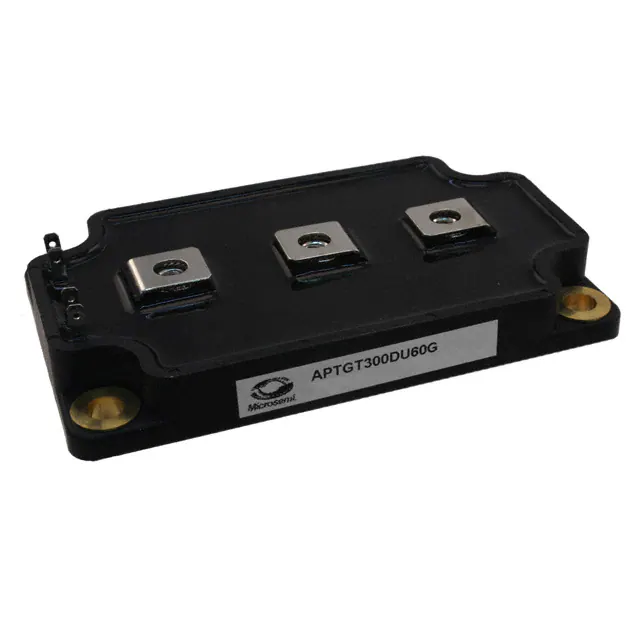

APTGT300DU60G IGBT MODULE 600V 430A 1150W SP6 Microchip Technology	3,291	-	RFQ	データシート	Tube	-	Active	Trench Field Stop	Dual, Common Source	600 V	430 A	1150 W	1.8V @ 15V, 300A	350 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT300A60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	2,970	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT200H60G IGBT MODULE 600V 290A 625W SP6 Microchip Technology	3,203	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	290 A	625 W	1.9V @ 15V, 200A	250 µA	12.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT750U60D4G IGBT MODULE 600V 1000A 2300W D4 Microchip Technology	3,587	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	1000 A	2300 W	1.9V @ 15V, 800A	1 mA	49 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT600DA60G IGBT MODULE 600V 700A 2300W SP6 Microchip Technology	2,326	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	600 V	700 A	2300 W	1.8V @ 15V, 600A	750 µA	49 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT225SK170G IGBT MODULE 1700V 340A 1250W SP6 Microchip Technology	3,995	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1700 V	340 A	1250 W	2.4V @ 15V, 225A	500 µA	20 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT300DH60G IGBT MODULE 600V 430A 1150W SP6 Microchip Technology	3,147	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	600 V	430 A	1150 W	1.8V @ 15V, 300A	350 µA	24 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT400DA120G IGBT MODULE 1200V 560A 1785W SP6 Microchip Technology	2,635	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	560 A	1785 W	2.1V @ 15V, 400A	750 µA	28 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT400SK120G IGBT MODULE 1200V 560A 1785W SP6 Microchip Technology	3,735	-	RFQ	データシート	Bulk	-	Active	Trench Field Stop	Single	1200 V	560 A	1785 W	2.1V @ 15V, 400A	750 µA	28 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
